Запчасти John Deere 7C ZTS 584 - PILOT LINES (PILOT SIGNAL MANIFOLD TO BOTTOM OF CONTROL VALVE) 3363 LINES, HOSES & FITTINGS

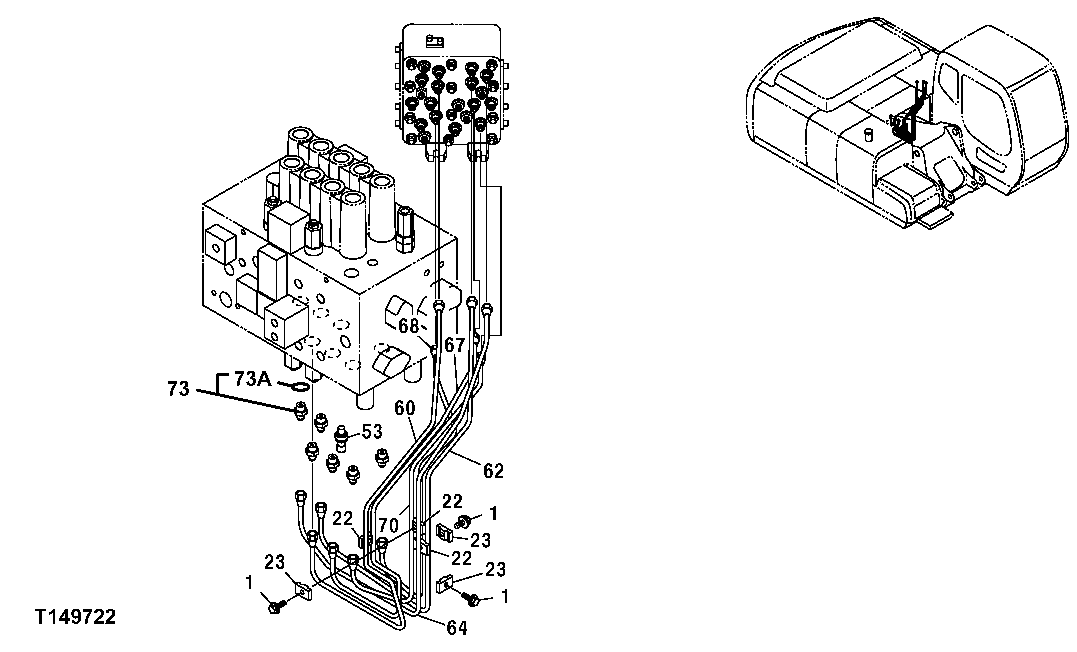

Схема запчастей John Deere 7C ZTS - 584 - PILOT LINES (PILOT SIGNAL MANIFOLD TO BOTTOM OF CONTROL VALVE) 3363 LINES, HOSES & FITTINGS

Артикул

Название

Примечание

Количество

1

19M7163

Cap Screw

M8 X 25

3шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

22

9735305

Clamp

(SUB FOR AP33637)

3шт.

23

9735306

Clamp

(SUB FOR AP33638)

3шт.

53

4436535

Sensor

1шт.

60

3091680

Oil Line

1шт.

62

3091681

Oil Line

1шт.

64

3091682

Oil Line

1шт.

67

3091683

Oil Line

1шт.

68

3091684

Oil Line

1шт.

70

3091685

Oil Line

1шт.

73

4420392

Fitting

(SUB FOR TH4420392)

6шт.

73A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

6шт.

Выбрано товаров: 13
