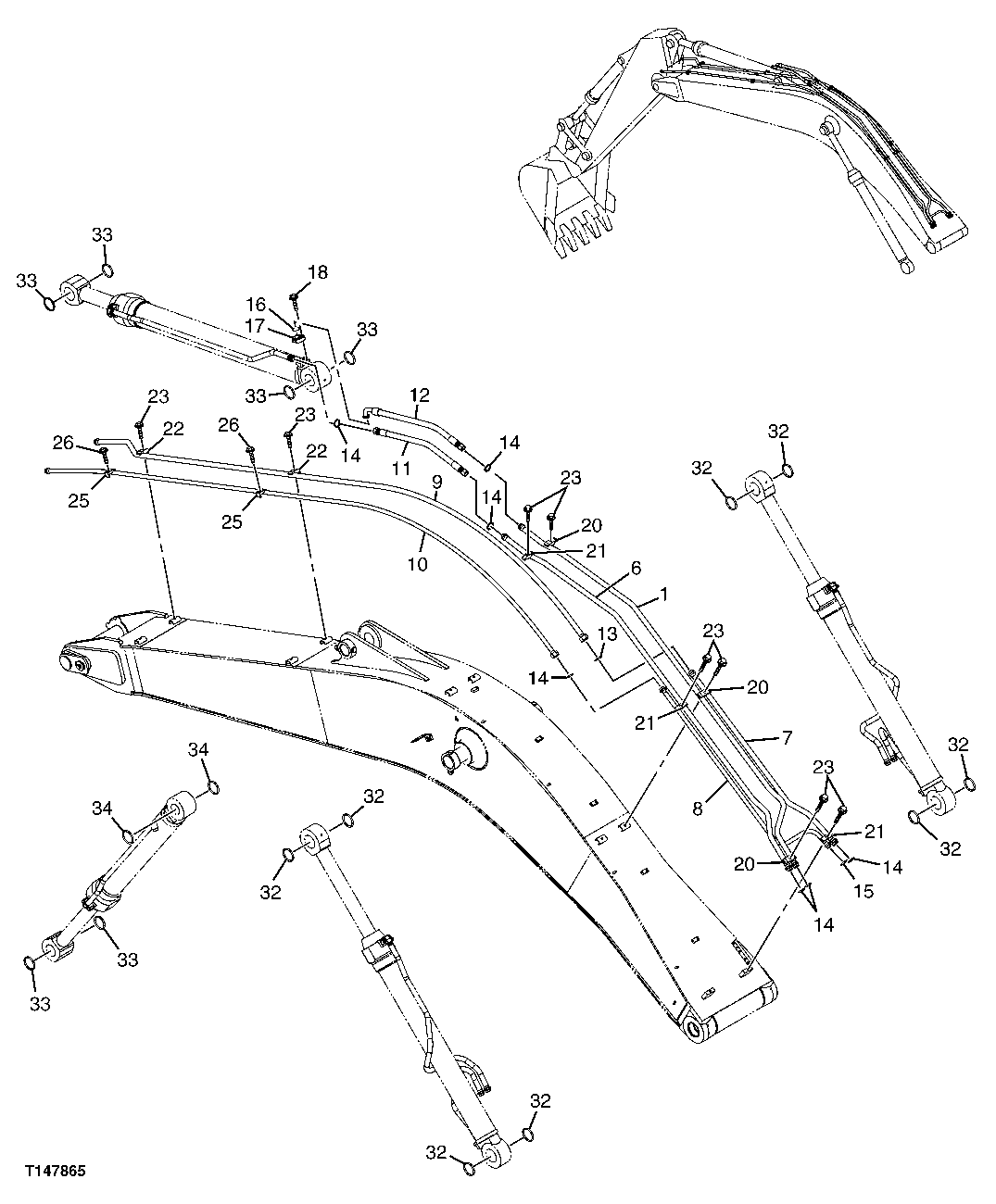

Запчасти John Deere 7C ZTS 583 - EXCAVATOR BOOM LINES (BUCKET AND ARM CYLINDER) (WITH 3.10M ARM) 3363 LINES, HOSES & FITTINGS

1

8066502

Oil Tube

(SUB FOR AT218026)

1шт.

6

8066503

Oil Tube

(SUB FOR AT218027)

1шт.

7

9746887

Oil Tube

(SUB FOR AT218046)

1шт.

8

9746888

Oil Tube

(SUB FOR AT218047)

1шт.

9

8066506

Oil Tube

(SUB FOR AT218028)

1шт.

10

8066507

Oil Tube

(SUB FOR AT218029)

1шт.

11

AT159574

Hydraulic Hose

1шт.

12

AT131302

Hydraulic Hose

1шт.

13

T78612

O-Ring

1шт.

14

T76938

O-Ring

7шт.

15

T77858

O-Ring

1шт.

16

T78313

O-Ring

1шт.

17

4085560

Flange Fitting

(SUB FOR TH101960)

2шт.

18

19M9163

Screw

M12 X 40 (SUB FOR J781240)

4шт.

20

4189860

Clamp

(SUB FOR TH108314)

3шт.

21

4153488

Clamp

(SUB FOR TH103780)

3шт.

22

4190127

Clamp

(SUB FOR TH108313)

2шт.

23

19M8348

Cap Screw

M12 X 65

8шт.

12H301

Lock Washer

1/2"

8шт.

25

4190126

Clamp

(SUB FOR TH109830)

2шт.

26

19M7363

Cap Screw

M12 X 60

2шт.

12H301

Lock Washer

1/2"

2шт.

32

TH102411

Seal

8шт.

33

TH102445

Seal

6шт.

34

TH102446

Seal

2шт.
