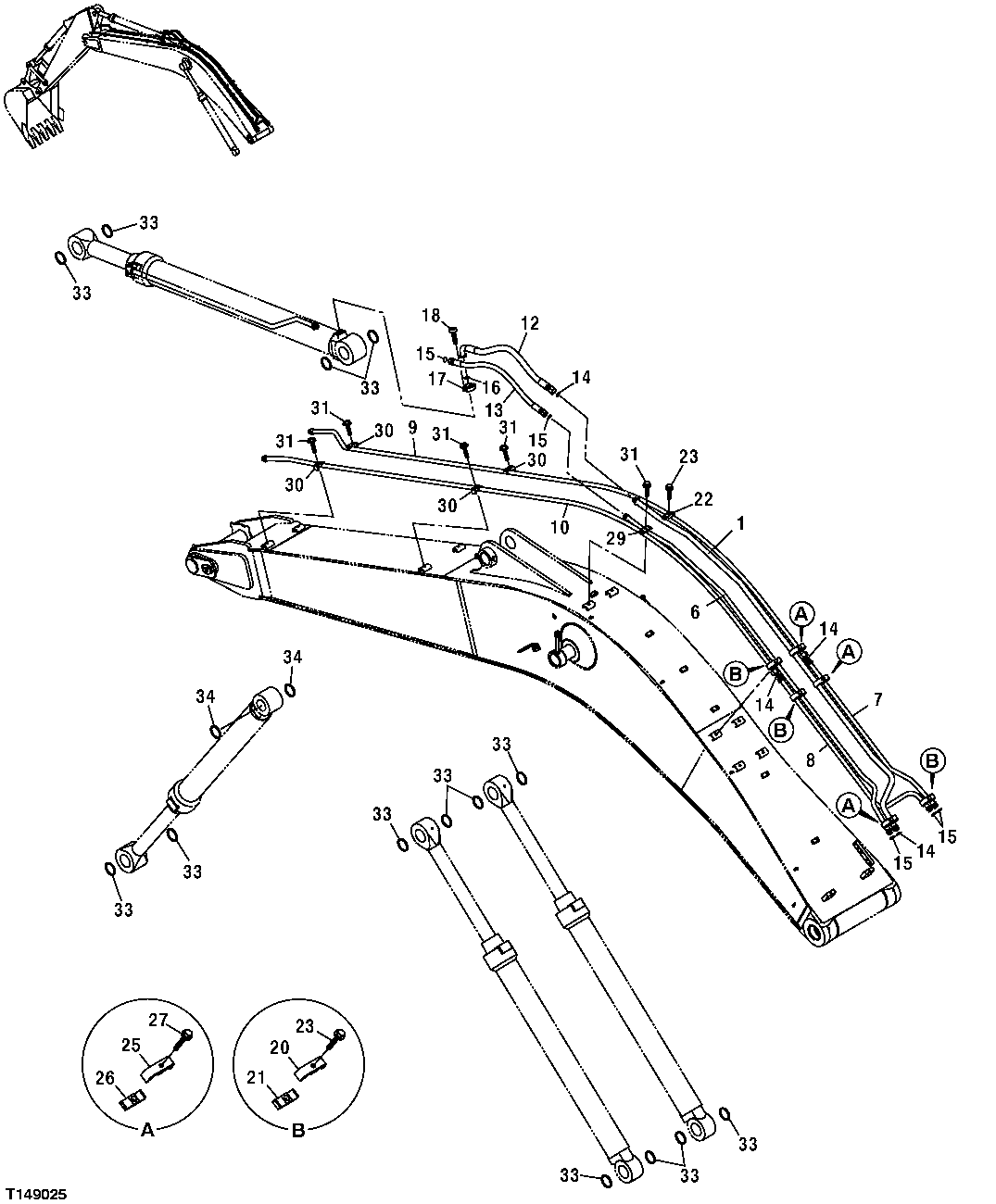

Запчасти John Deere 7C ZTS 582 - EXCAVATOR BOOM LINES (BUCKET AND ARM CYLINDER) (WITH 2.96M ARM) 3363 LINES, HOSES & FITTINGS

1

8063070

Oil Tube

1шт.

6

8063068

Oil Tube

1шт.

7

9744879

Oil Tube

1шт.

8

9744880

Oil Tube

1шт.

9

8063077

Oil Tube

1шт.

10

8063078

Oil Tube

1шт.

12

AT131302

Hydraulic Hose - Fabricate

SUB FOR 4252855

1шт.

13

AT131303

Hydraulic Hose - Fabricate

SUB FOR 4252854

1шт.

14

T76938

O-Ring

SUB FOR 4187328

4шт.

15

T77858

O-Ring

SUB FOR 4187308

5шт.

16

966993

O-Ring

1шт.

17

4085560

Flange Fitting

2шт.

18

19M9163

Bolt

SUB FOR J781240

4шт.

20

Clamp

4285723 NLA; ORDER 4189859 Rubber

3шт.

4189859

Clamp

Steel

3шт.

21

AT318021

Clamp

SUB FOR 4285722

3шт.

22

4153488

Clamp

1шт.

23

19M7753

Cap Screw

SUB FOR J011270

4шт.

25

4153488

Clamp

SUB FOR 4285725

3шт.

26

AT309596

Clamp

SUB FOR 4285724

3шт.

27

19M8088

Cap Screw

SUB FOR J011275

3шт.

29

Clamp

4285723 NLA; ORDER 4189859 Rubber

1шт.

4189859

Clamp

Steel

1шт.

30

4190126

Clamp

4шт.

31

19M7363

Cap Screw

SUB FOR J011260

5шт.

33

TH102445

Seal

SUB FOR 4067901

14шт.

34

TH102446

Seal

SUB FOR 4067902

2шт.
