578 - PILOT HOSES (HYDRAULIC PUMP TO SIGNAL MANIFOLD AND FILTER)

Запчасти John Deere 7C ZTS 578 - PILOT HOSES (HYDRAULIC PUMP TO SIGNAL MANIFOLD AND FILTER) 3363 LINES, HOSES & FITTINGS

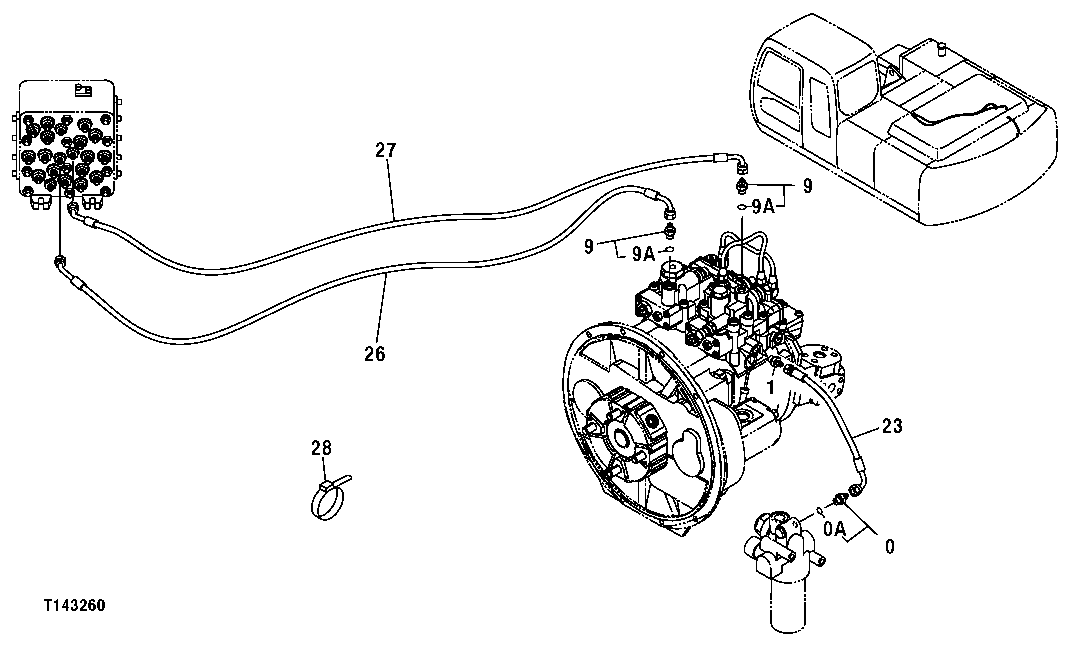

Схема запчастей John Deere 7C ZTS - 578 - PILOT HOSES (HYDRAULIC PUMP TO SIGNAL MANIFOLD AND FILTER) 3363 LINES, HOSES & FITTINGS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A852122

Adapter Fitting

2шт.

1A

M800650

Packing

(SUB FOR 957366)

1шт.

9

A852123

Adapter Fitting

2шт.

9A

M800650

Packing

(SUB FOR 957366)

1шт.

23

DH400257

Hydraulic Hose

( 4427359 NLA)

1шт.

26

4449771

Hydraulic Hose

1шт.

27

4449772

Hydraulic Hose

1шт.

28

H77698

Tie Band

(SUB FOR 4055312)

1шт.

Выбрано товаров: 8
