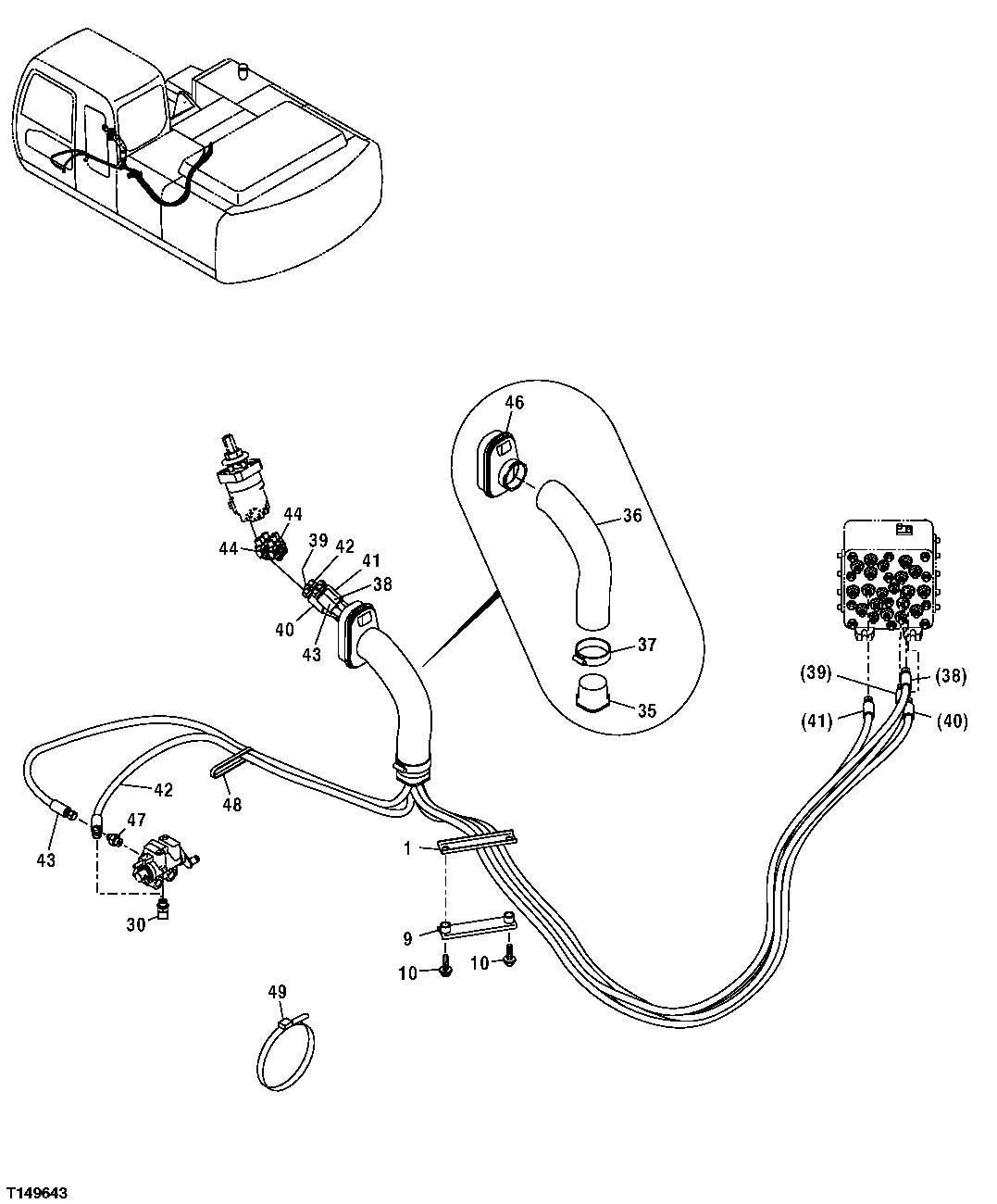

Запчасти John Deere 7C ZTS 577 - HYDRAULIC HOSES (FROM RIGHT PILOT CONTROLLER) 3363 LINES, HOSES & FITTINGS

1

4412666

Clamp

1шт.

9

9751787

Clamp

1шт.

10

4437656

Hydraulic Hose

Fabricate

2шт.

30

A852333

Elbow Fitting

(SUB FOR 4154671)

1шт.

30A

CH11570

O-Ring

(SUB FOR 4509180)

1шт.

35

3079728

Bushing

1шт.

36

4351175

Hose

1шт.

37

4351774

Clamp

1шт.

38

TH4443896

Hydraulic Hose

1шт.

39

4446841

Hydraulic Hose

Fabricate

1шт.

40

4448641

Hose

1шт.

41

4444720

Hydraulic Hose

(SUB FOR TH4444720) Fabricate

1шт.

42

4438288

Hydraulic Hose

Fabricate

1шт.

43

4438290

Hydraulic Hose

1шт.

44

A852223

Elbow Fitting

6шт.

44A

M800650

Packing

(SUB FOR 957366)

6шт.

46

2045998

Bushing

1шт.

47

4261938

Fitting

1шт.

47A

CH11570

O-Ring

(SUB FOR 4509180)

1шт.

48

H77698

Tie Band

(SUB FOR 4121859)

1шт.

49

H77698

Tie Band

(SUB FOR 4055312)

1шт.
