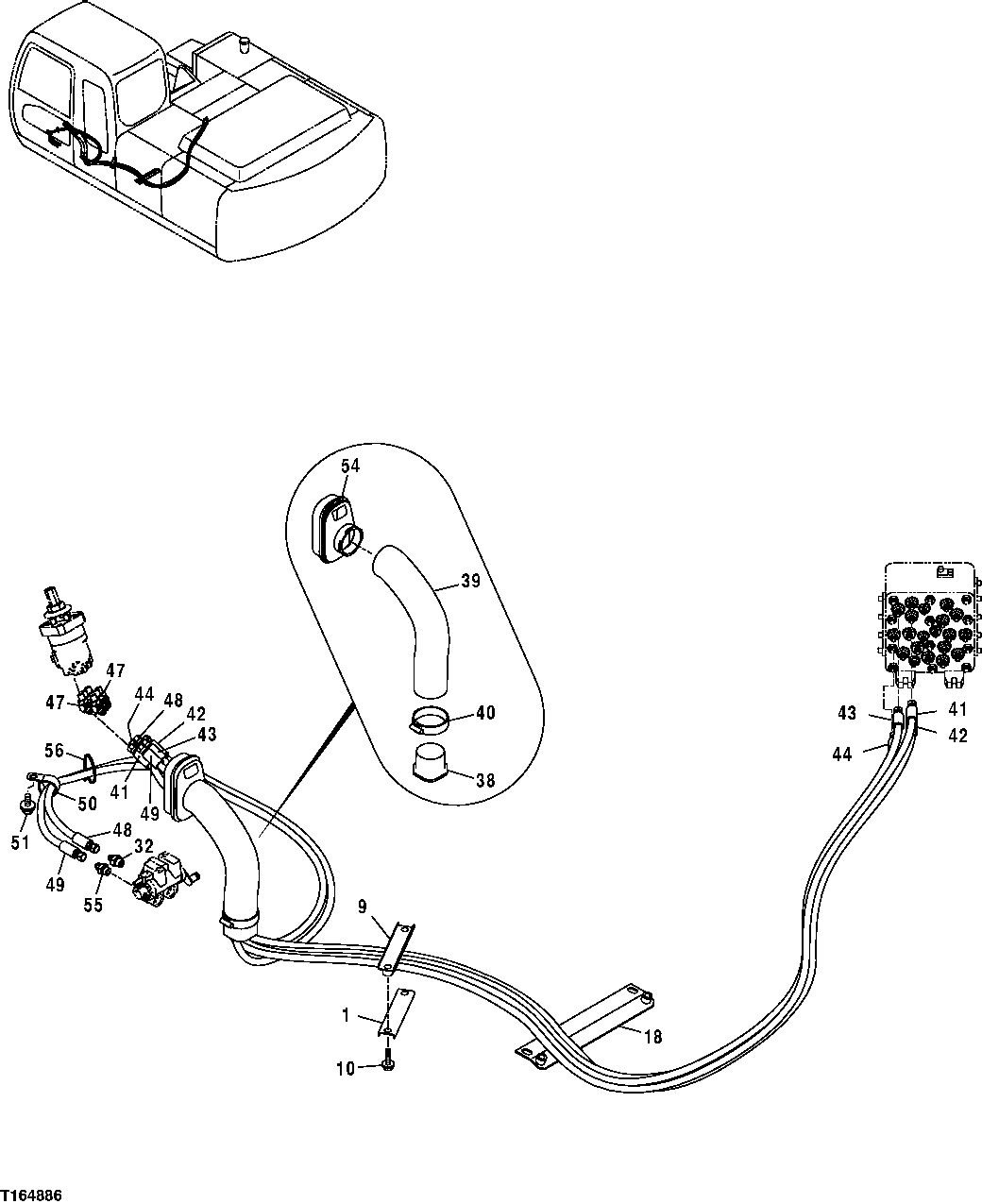

Запчасти John Deere 7C ZTS 576 - HYDRAULIC HOSES (FROM LEFT PILOT CONTROLLER) 3363 LINES, HOSES & FITTINGS

1

4412666

Clamp

1шт.

9

9751787

Clamp

1шт.

10

19M7835

Screw

M10 X 35 (SUB FOR J021040)

2шт.

18

8077444

Bracket

1шт.

32

A852133

Adapter Fitting

1шт.

32A

CH11570

O-Ring

(SUB FOR 4509180)

1шт.

38

3079728

Bushing

1шт.

39

4351175

Hose

1шт.

40

4351774

Clamp

1шт.

41

4484016

Hydraulic Hose

(SUB FOR TH4444732 OR 4459260)

1шт.

42

4437634

Hydraulic Hose

(SUB FOR TH4437634)

1шт.

43

4484016

Hydraulic Hose

(SUB FOR TH4437636)

1шт.

44

4437637

Hydraulic Hose

(SUB FOR TH4437637)

1шт.

47

A852223

Elbow Fitting

6шт.

M800650

Packing

6шт.

48

4437653

Hydraulic Hose

1шт.

49

4437656

Hydraulic Hose

1шт.

50

XCL-29

Hose Clamp

(SUB FOR 4190264 OR 4193848)

1шт.

51

19M7938

Cap Screw

M10 X 20 (SUB FOR J011020)

1шт.

54

2045998

Bushing

1шт.

55

4261938

Fitting

1шт.

55A

CH11570

O-Ring

(SUB FOR 4509180)

1шт.

56

H77698

Tie Band

(SUB FOR 4055312)

1шт.
