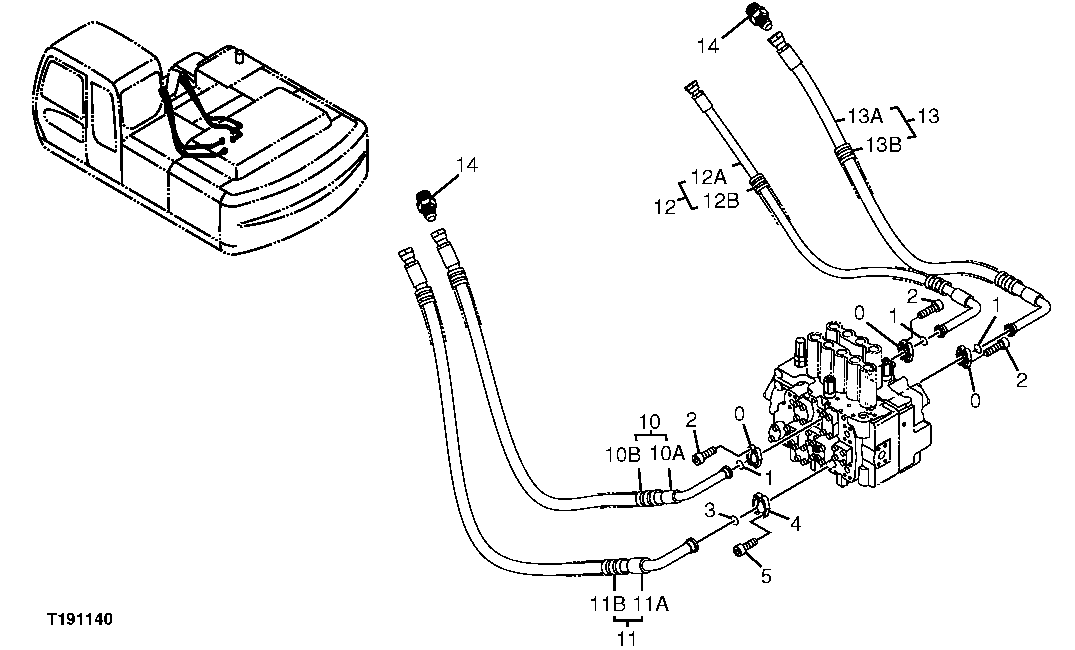

Запчасти John Deere 7C ZTS 572 - CONTROL VALVE TO BOOM LINE HOSES (ARM AND BUCKET CYLINDERS) 3363 LINES, HOSES & FITTINGS

0

R29424

Flange Fitting

6шт.

1

T59014

O-Ring

3шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

12шт.

3

T78313

O-Ring

1шт.

4

H61354

Flange Fitting

2шт.

5

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

10

Hydraulic Hose

(SUB 4438866 ) (MAKE FROM XHG-07 5)( 9199749, TH9199749 NLA) (CTL)

1шт.

10A

4438866

Hose

(SUB FOR TH4438866)

1шт.

10B

Hose Guard

(MAKE FROM XHG-075 CTL) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

11

Hydraulic Hose

( TH9199873 NLA)

1шт.

11A

4447099

Hydraulic Hose

(SUB FOR TH4447099)

1шт.

11B

Hose Guard

(MAKE FROM XHG-075 CTL) (SUB FOR AT213832 ( 4327294 NLA))

3шт.

12

Hydraulic Hose

( TH9209641 NLA)

1шт.

12A

4410314

Hydraulic Hose

(SUB FOR TH4410314)

1шт.

12B

Hose Guard

(MAKE FROM XHG-075 ,CTL) (SU B FOR AT213832 ( 4327294 NLA))

3шт.

13

Hydraulic Hose

( TH9209638 NLA)

1шт.

13A

4438866

Hose

(SUB FOR TH4438866)

1шт.

13B

Hose Guard

(MAKE FROM XHG-075 CTL)(SUB FOR AT213832 ( 4327294 NLA))

3шт.

14

FFSB105671

Adapter Fitting

(SUB FOR X16-12TRLO-S)

2шт.
