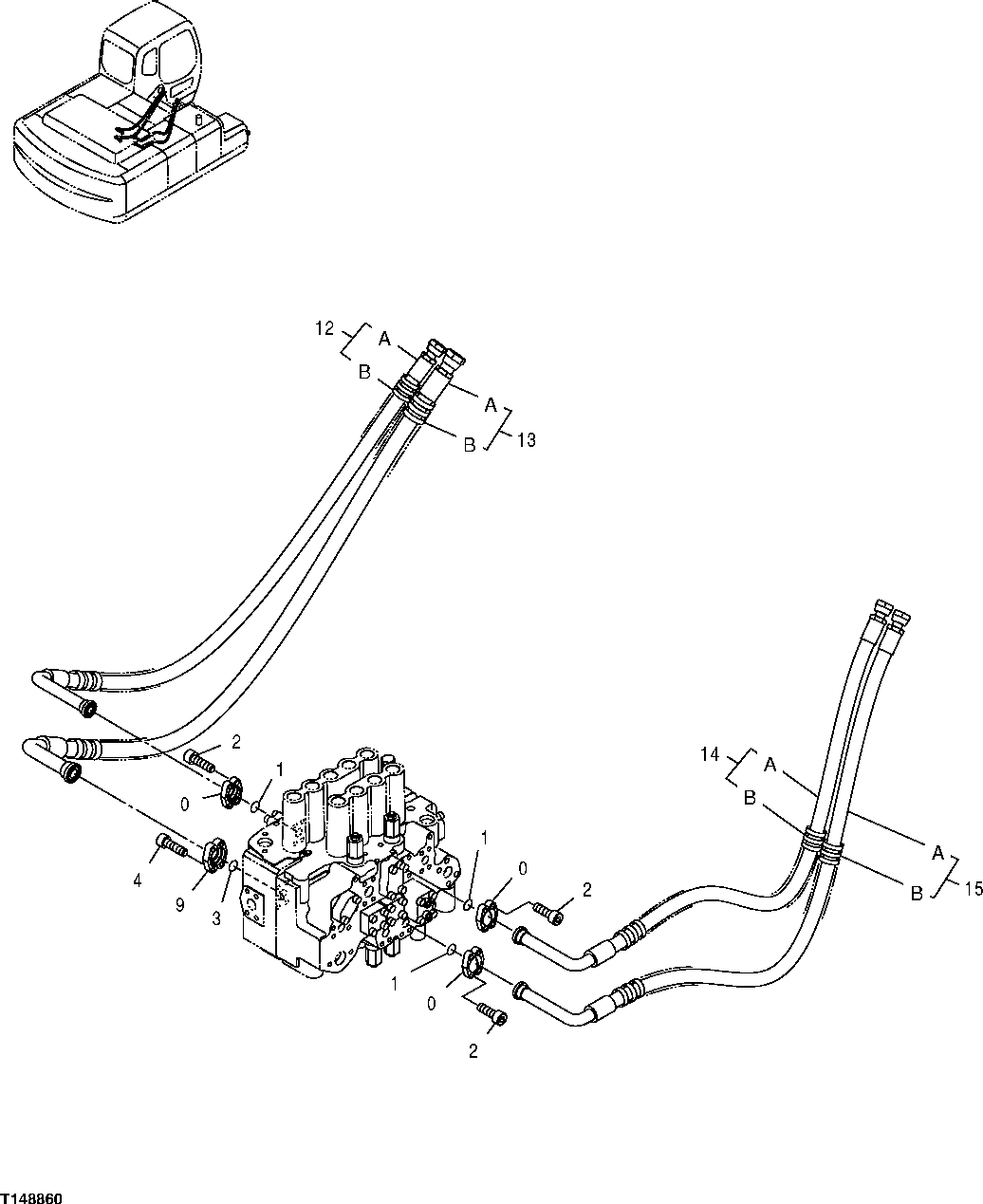

Запчасти John Deere 7C ZTS 571 - CONTROL VALVE TO BOOM LINE HOSES (ARM AND BUCKET CYLINDERS) 3363 LINES, HOSES & FITTINGS

0

R29424

Flange Fitting

(SUB FOR 986910)

6шт.

1

T59014

O-Ring

(SUB FOR 971489)

3шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

12шт.

3

966993

O-Ring

1шт.

4

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

9

H61354

Flange Fitting

(SUB FOR 962453)

2шт.

12

Hydraulic Hose

1шт.

12A

4437703

Hydraulic Hose

( 9199872 NLA)

1шт.

12B

Hose Guard

(MAKE FROM XHG-075 CTL) ( 4327294 NLA)

2шт.

13

Hydraulic Hose

(SUB 4447099 ) (MAKE FROM X HG-075)( 9199873 NLA) (CTL)

1шт.

13A

4447099

Hydraulic Hose

1шт.

13B

Hose Guard

(MAKE FROM XHG-075 , CTL) ( 4327294 NLA)

3шт.

14

Hydraulic Hose

(SUB 4410314 ) (MAKE FROM X HG-075)( 9209641 NLA) (CTL)

1шт.

14A

4410314

Hydraulic Hose

1шт.

14B

Hose Guard

(MAKE FROM XHG-075 CTL) ( 4327294 NLA)

3шт.

15

Hydraulic Hose

( 9209639 NLA)

1шт.

15A

4437703

Hydraulic Hose

1шт.

15B

Hose Guard

(MAKE FROM XHG-075 CTL) ( 4327294 NLA)

3шт.
