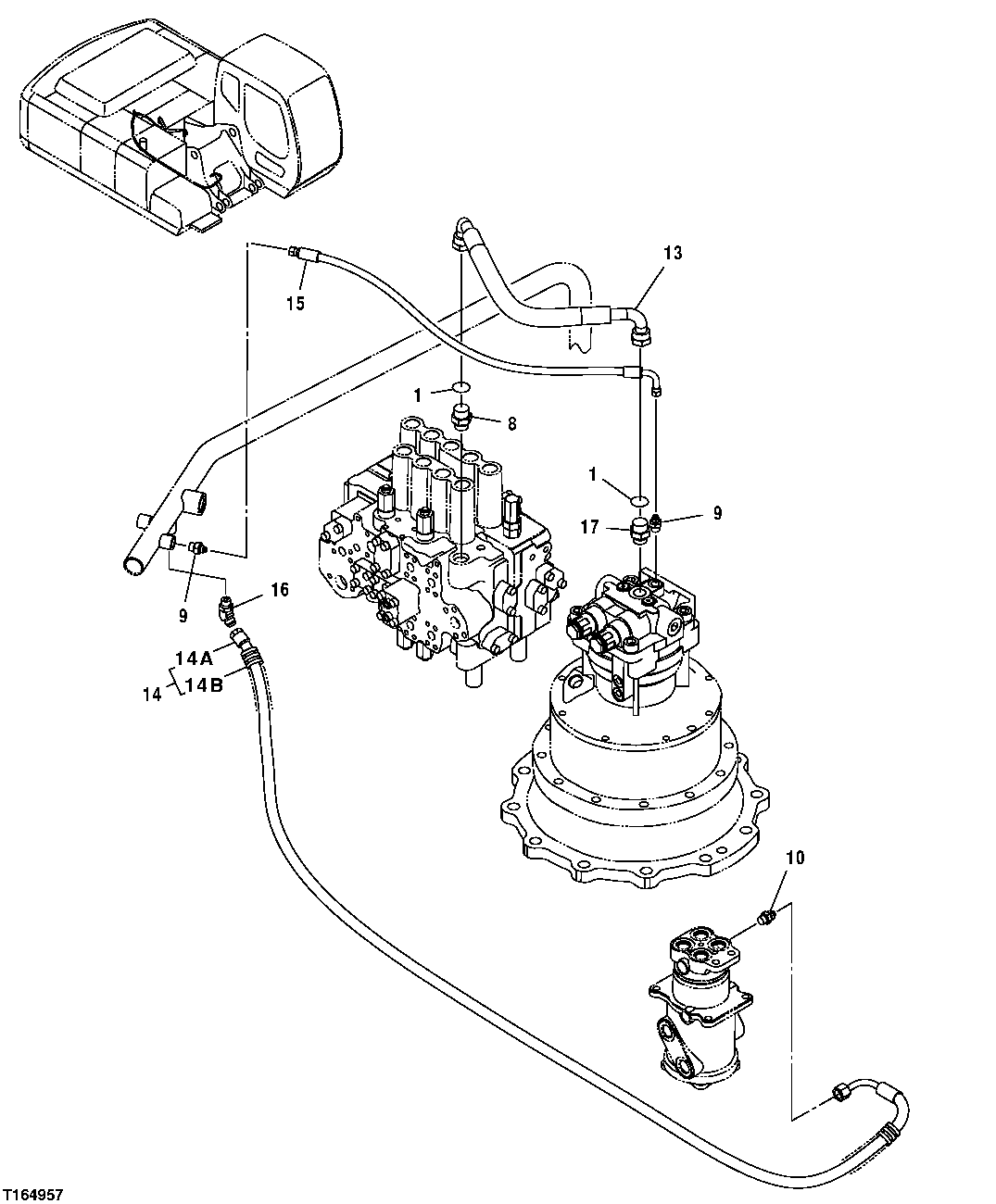

Запчасти John Deere 7C ZTS 568 - DRAIN HOSES (ROTARY MANIFOLD, SWING MOTOR, CONTROL VALVE) 3363 LINES, HOSES & FITTINGS

1

T77858

O-Ring

(SUB FOR 4187308)

2шт.

8

A853166

Adapter Fitting

1шт.

AT318035

O-Ring

(SUB FOR 4506424)

1шт.

9

A852133

Adapter Fitting

2шт.

CH11570

O-Ring

(SUB FOR 4509180)

1шт.

10

A852134

Adapter Fitting

1шт.

CH11570

O-Ring

(SUB FOR 4509180)

1шт.

13

4442854

Hydraulic Hose

1шт.

14

Hydraulic Hose

(SUB 4313443)( 9199986 NLA)

1шт.

14A

4313443

Hydraulic Hose

1шт.

14B

Hose Guard

(MAKE FROM XHG-075 CTL) ( 4327294 NLA)

3шт.

15

4453023

Hydraulic Hose

1шт.

16

A852234

Elbow Fitting

1шт.

CH11570

O-Ring

(SUB FOR 4509180)

1шт.

17

AT318016

Adapter Fitting

(SUB FOR 4189537)

1шт.

TH101926

O-Ring

(SUB FOR 4506429)

1шт.
