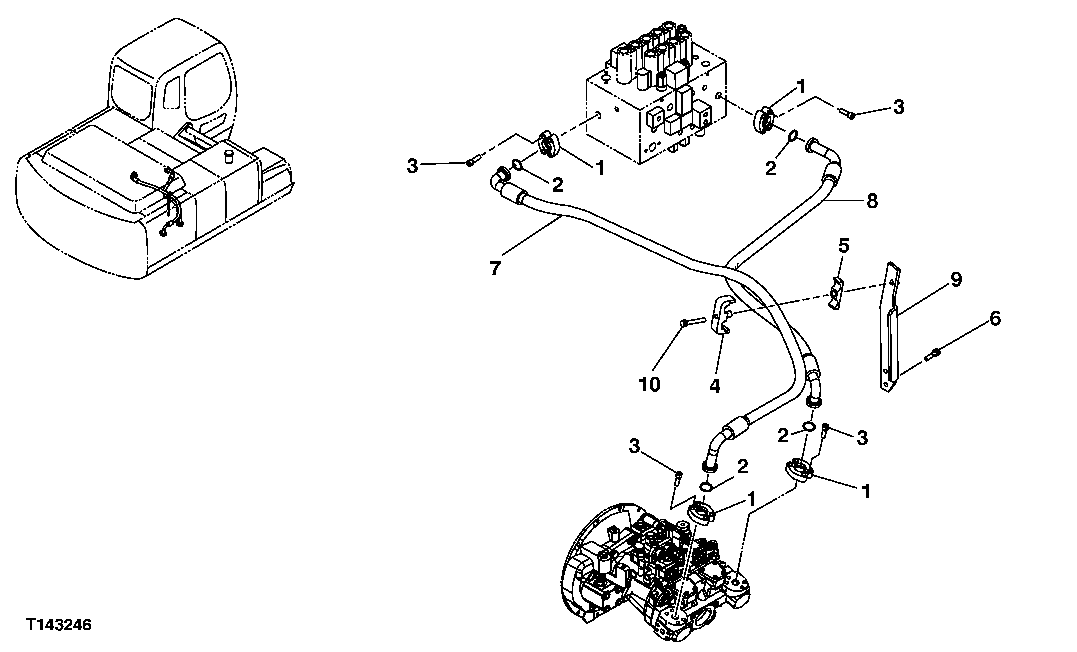

Запчасти John Deere 7C ZTS 562 - HYDRAULIC PUMP TO CONTROL VALVE HIGH PRESSURE HOSES 3363 LINES, HOSES & FITTINGS

1

4085560

Flange Fitting

(SUB FOR TH101960)

8шт.

2

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

4шт.

3

19M9163

Screw

M12 X 40 (SUB FOR J781240)

16шт.

4

8061722

Clamp

(SUB FOR AT214442)

1шт.

5

3072291

Isolator

(SUB FOR AT214427)

1шт.

6

19M7361

Cap Screw

M12 X 50

2шт.

12H301

Lock Washer

1/2"

2шт.

7

DH400321

Hydraulic Hose

1шт.

8

4385692

Hydraulic Hose

(SUB FOR AT218172)

1шт.

9

DH700031

Bracket

(SUB FOR THDH700031)

1шт.

10

19M7364

Cap Screw

M12 X 80 (SUB FOR AT200006 OR J011280)

1шт.

12M7067

Lock Washer

12 mm

1шт.
