558 - AUXILIARY OIL COOLER WIRE HARNESS (PROCESSOR CONFIGURATION) (SN 200156- )

Запчасти John Deere 7C ZTS 558 - AUXILIARY OIL COOLER WIRE HARNESS (PROCESSOR CONFIGURATION) (SN 200156- ) 3360 HYDRAULIC SYSTEM

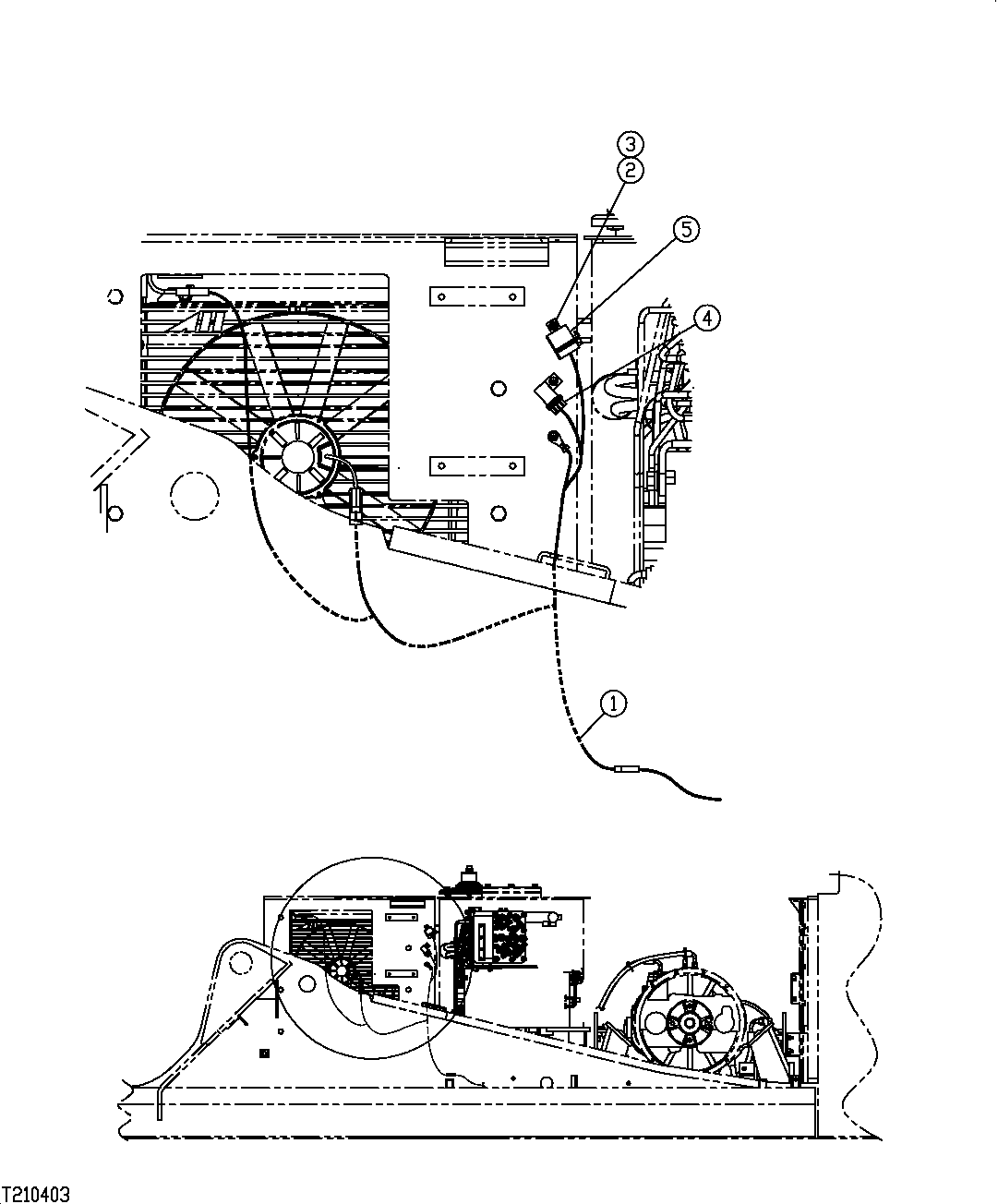

Схема запчастей John Deere 7C ZTS - 558 - AUXILIARY OIL COOLER WIRE HARNESS (PROCESSOR CONFIGURATION) (SN 200156- ) 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

FFSB114570

Wiring Harness

1шт.

2

14M7297

Nut

M5 (SUB FOR FFSB105284)

3шт.

3

24M7348

Washer

5.500 X 10 X 1 mm (SUB FOR FFSB107713)

3шт.

4

RE505214

Relay Module

24 V, 40 AMP, (SUB FOR FFSB112194)

1шт.

5

57M7691

Fuse

(SUB FOR FFSB114601)

1шт.
