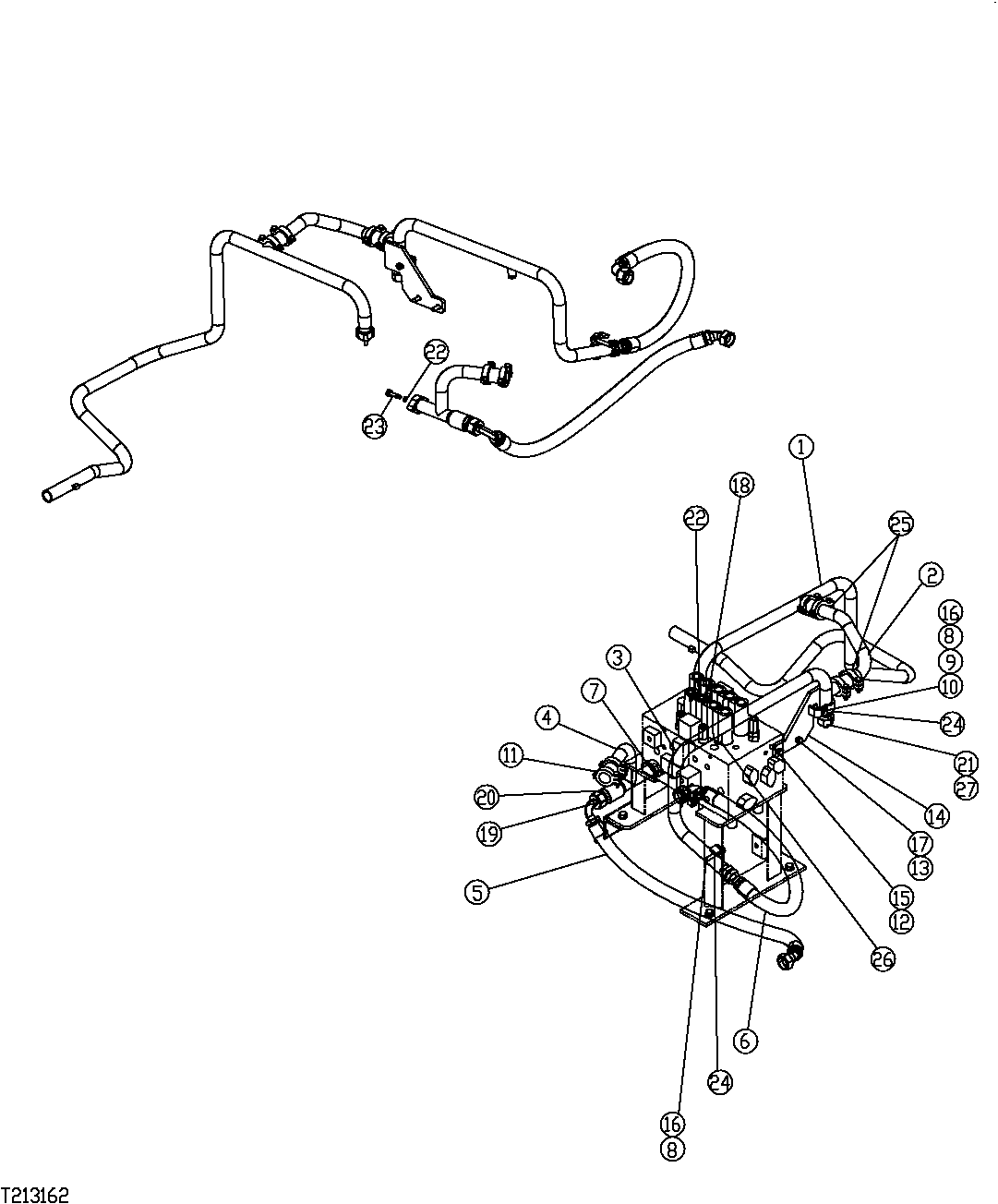

Запчасти John Deere 7C ZTS 553 - AUXILIARY OIL COOLER LINES (SN 200161- ) 3360 HYDRAULIC SYSTEM

1

FFSB114704

Tube

1шт.

2

FFSB114701

Tube

1шт.

3

FFSB114702

Tube

1шт.

4

FFSB114703

Tube

1шт.

5

FFSB114700

Hose

1шт.

6

FFSB114679

Hose

1шт.

7

19M8338

Screw

M10 X 40

2шт.

8

12M7067

Lock Washer

12 mm

2шт.

9

14M7275

Nut

M12

1шт.

10

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

11

4069801

Coupling

(SUB FOR FFSB105664, 4712341 AND 4196259)

1шт.

4196259

Seal

NLA, ORDER 4069801

2шт.

12

24M7085

Washer

15 X 28 X 2.500 mm (SUB FOR FFSB114435)

1шт.

13

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

14

FFSB114680

Bracket

(SUB FOR FFSB110975)

1шт.

15

19M7393

Cap Screw

M14 X 50 (SUB FOR FFSB106036)

1шт.

16

19M7364

Cap Screw

M12 X 80 (SUB FOR FFSB110184)

3шт.

17

19M7382

Cap Screw

M10 X 40 (SUB FOR FFSB103504)

1шт.

18

19M8337

Screw

M10 X 30 (SUB FOR FFSB106288)

2шт.

19

4276584

Flow Control Hyd. Valve

(SUB FOR FFSB114297)

1шт.

20

PMH1654

Adapter Fitting

(SUB FOR FFSB103505)

1шт.

21

T78612

O-Ring

(SUB FOR FFSB109271)

3шт.

22

A811040

O-Ring

(SUB FOR FFSB106430)

2шт.

23

4272164

Flow Control Hyd. Valve

1шт.

24

4053698

Clamp

(SUB FOR FFSB107911)

2шт.

25

FFSB114744

Coupling

(SUB FOR FFSB107245)

2шт.

26

4451789

Pipe Plug

(SUB FOR FFSB105797)

1шт.

27

X20FNL-S

Fitting

(SUB FOR FFSB109327)

1шт.
