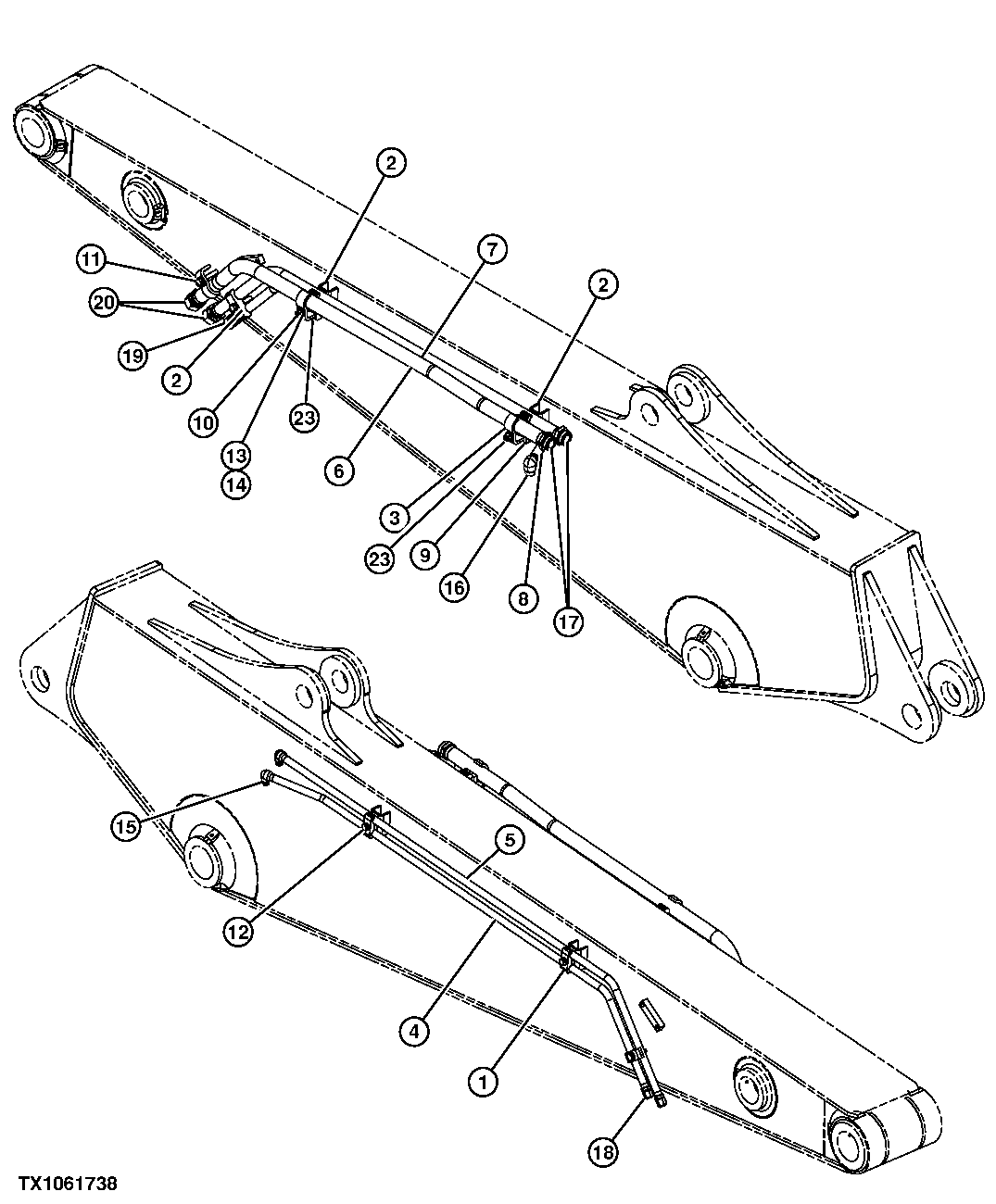

Запчасти John Deere 7C ZTS 548 - ARM LINES (PROCESSOR CONFIGURATION) (SN 200156-200182) 3360 HYDRAULIC SYSTEM

1

4189858

Clamp

(SUB FOR FFSB114381)

3шт.

2

FFSB113739

Clamp

3шт.

3

4053698

Clamp

(SUB FOR FFSB113716)

3шт.

4

FFSB113618

Tube

1шт.

5

FFSB113617

Tube

1шт.

6

FFSB113615

Tube

(42.7MM OD)

1шт.

7

FFSB113619

Tube

(34.0MM OD)

1шт.

8

FFSB113616

Tube

1шт.

9

FFSB114357

Plate

1шт.

10

19M8061

Cap Screw

M12 X 140 (SUB FOR FFSB114377)

2шт.

11

19M7753

Cap Screw

M12 X 70 (SUB FOR FFSB109196)

2шт.

12

19M8313

Cap Screw

M12 X 55 (SUB FOR FFSB108226 OR 19M7388)

3шт.

13

14M7275

Nut

M12 (SUB FOR FFSB107245)

4шт.

14

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)

9шт.

15

T77857

O-Ring

(SUB FOR FFSB114430)

4шт.

16

T77858

O-Ring

(SUB FOR FFSB109689)

2шт.

17

T78612

O-Ring

(SUB FOR FFSB114288)

4шт.

18

38H1416

Fitting

(SUB FOR FFSB112991)

2шт.

19

X12FNL-S

Fitting

(SUB FOR FFSB106434)

1шт.

20

X20FNL-S

Fitting

(SUB FOR FFSB114429)

2шт.

23

FFSB115621

Bracket

2шт.
