Запчасти John Deere 7C ZTS 547 - DECK TO BOOM HOSES (PROCESSOR CONFIGURATION) (SN 200156- ) 3360 HYDRAULIC SYSTEM

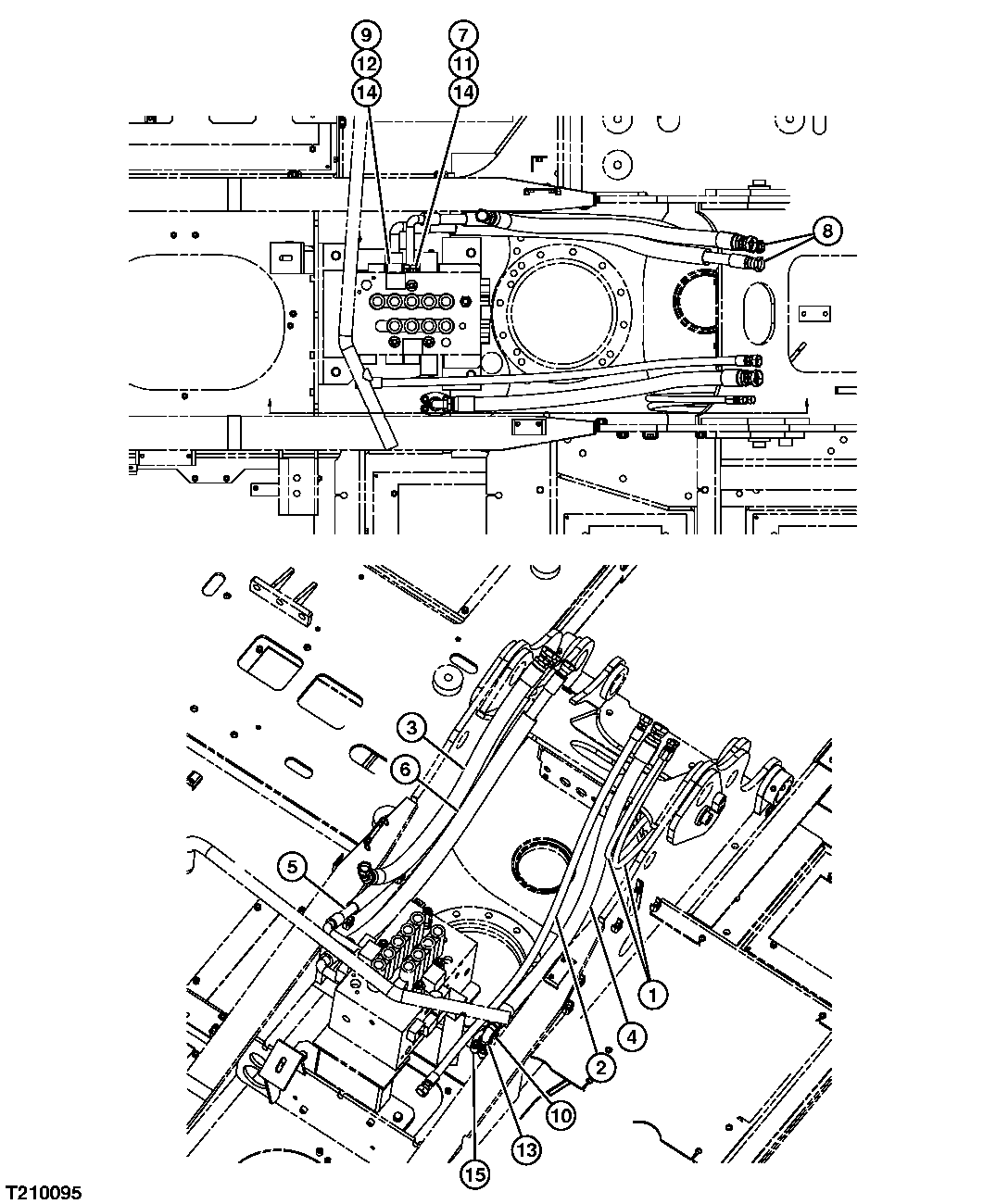

Схема запчастей John Deere 7C ZTS - 547 - DECK TO BOOM HOSES (PROCESSOR CONFIGURATION) (SN 200156- ) 3360 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

FFSB113668

Hydraulic Hose

(ROTATE)

2шт.

2

FFSB113644

Hydraulic Hose

(CASE DRAIN)

1шт.

3

FFSB113729

Hydraulic Hose

(RETURN)

1шт.

4

FFSB113635

Hydraulic Hose

(SUPPLY)

1шт.

5

FFSB113636

Hydraulic Hose

(ARM CYLINDER RETRACT)

1шт.

6

4438866

Hose

(SUB FOR FFSB114441)(ARM CYLINDER EXTEND)

1шт.

7

X711510-5

O-Ring

(SUB FOR FFSB103505)

1шт.

8

T76938

O-Ring

(SUB FOR FFSB106416 OR TH108326)

2шт.

9

T78313

O-Ring

(SUB FOR FFSB106430)

1шт.

10

X711510-3

O-Ring

(SUB FOR FFSB106288)

1шт.

11

XM1H-12

Flange Fitting

(SUB FOR FFSB103504)

2шт.

12

H61354

Flange Fitting

(SUB FOR FFSB110184)

2шт.

13

AT131685

Flange Fitting

(SUB FOR FFSB110975)

2шт.

14

19M7576

Screw

M10 X 30 (SUB FOR FFSB109271 OR J781030)

8шт.

15

19M8734

Screw

M14 X 45 (SUB FOR FFSB110972)

4шт.

Выбрано товаров: 15
