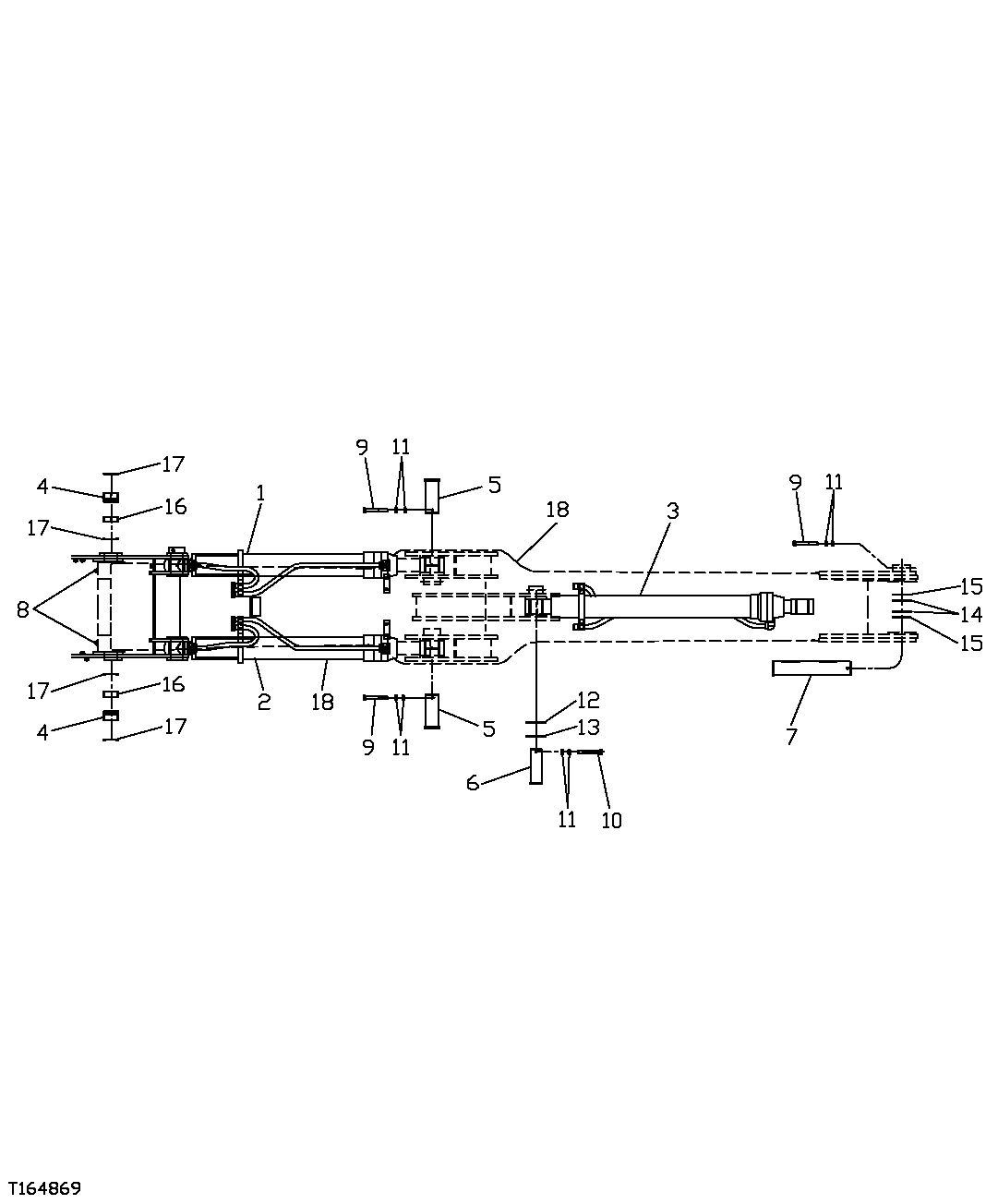

Запчасти John Deere 7C ZTS 542 - LOG LOADER BOOM (VALVE IN HEAD) (LIVE-HEEL) 3344 Boom

1

Hydraulic Cylinder

Right Boom Cylinder With Lines Compo nents On Another Page ( 9202512 NLA)

1шт.

Hydraulic Cylinder

Right Boom Cylinder With Lines Compon ents On Another Page ( FFSB112835 NLA)

1шт.

9272251

Hydraulic Cylinder

SUB FOR 4641546 Right Boom Cylinder (REPLACE RIGHT AND LEFT CYLINDERS AS A PAIR) (COMPONENTS ON SEPARATE PAGE)

1шт.

2

Hydraulic Cylinder

Left Boom Cylinder With Lines Compo nents On Another Page ( 9202513 NLA)

1шт.

Hydraulic Cylinder

Left Boom Cylinder With Lines Compone nts On Another Page ( FFSB112836 NLA)

1шт.

9272252

Hydraulic Cylinder

SUB FOR 4641547 Left Boom Cylinder ( REPLACE RIGHT AND LEFT CYLINDERS AS A PAIR) (COMPONENTS ON SEPARATE PAGE)

1шт.

3

Hydraulic Cylinder

Arm Components On Another Page FFS B104900, 9197222 NLA Build Code 6855

1шт.

FFSB115437

Hydraulic Cylinder

Arm Build Code 6855 NLA

1шт.

4

4443885

Bushing

2шт.

5

FF105552

Pin

SUB FOR FFSB107527

2шт.

6

FFSB107532

Pin Fastener

1шт.

7

FF105545

Pin

SUB FOR FFSB107531

1шт.

8

JD7769

Lubrication Fitting

2шт.

9

19M8100

Cap Screw

M20 X 180

3шт.

10

19M8503

Cap Screw

M20 X 160

1шт.

11

14M7277

Nut

M20

8шт.

12

TH106307

Washer

1шт.

13

TH106308

Washer

1шт.

14

4134373R

Shim

SUB FOR AT131703

2шт.

15

4134372R

Shim

SUB FOR AT202084

2шт.

16

4364501

Bushing

2шт.

17

TH102411

Seal

SUB FOR 4074008

4шт.

18

FFSB111414

Main Boom

(MUST ALSO ORDER BUSHINGS AND SEALS)

1шт.
