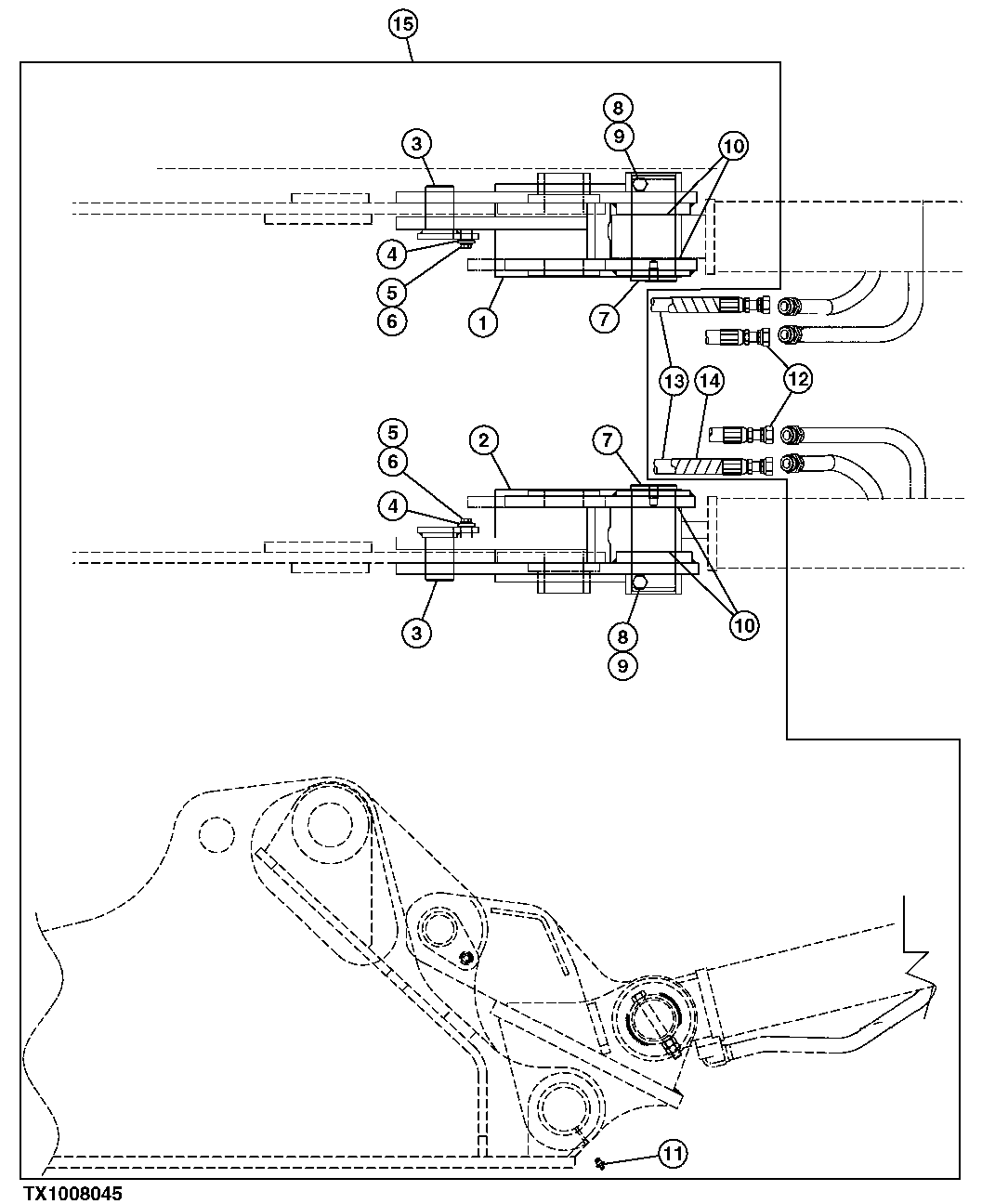

Запчасти John Deere 7C ZTS 541 - BOOM HOIST ADAPTER KIT (FOR USE WITH 3.10M ARM, 270C FRONT) 3344 Boom

1

FFSB112182

Adapter Fitting

1шт.

2

FFSB112183

Adapter Fitting

1шт.

3

FFSB108070

Pin Fastener

2шт.

4

FFSB103467

Spacer

2шт.

5

12M7058

Lock Washer

12 mm (SUB FOR FFSB107 911 ) (SUB FOR 12M7067)

2шт.

6

19M7403

Cap Screw

M12 X 35 (SUB FOR FFSB103477)

2шт.

7

FF105551

Pin

(SUB FOR FFSB105876)

2шт.

8

19M8100

Cap Screw

M20 X 180 (SUB FOR FFSB109229, 19M8503)

2шт.

9

14M7277

Nut

M20 (SUB FOR FFSB109330)

4шт.

10

FFSB113080

Wear Plate

(SUB FOR FFSB108127 AND TH102423)

4шт.

11

T162396

Lubrication Fitting

(SUB FOR FFSB109615)

4шт.

12

FFSB112174

Hydraulic Hose

2шт.

13

FFSB112173

Hydraulic Hose

2шт.

14

Cover

( FFSB111784 NLA) (CTL, 20 50 MM) (MAKE FROM XHG-150)

2шт.

15

Kit

(WHOLE GOODS) ( AT280812 NLA) He avy Duty Boom Hoist Installation

1шт.
