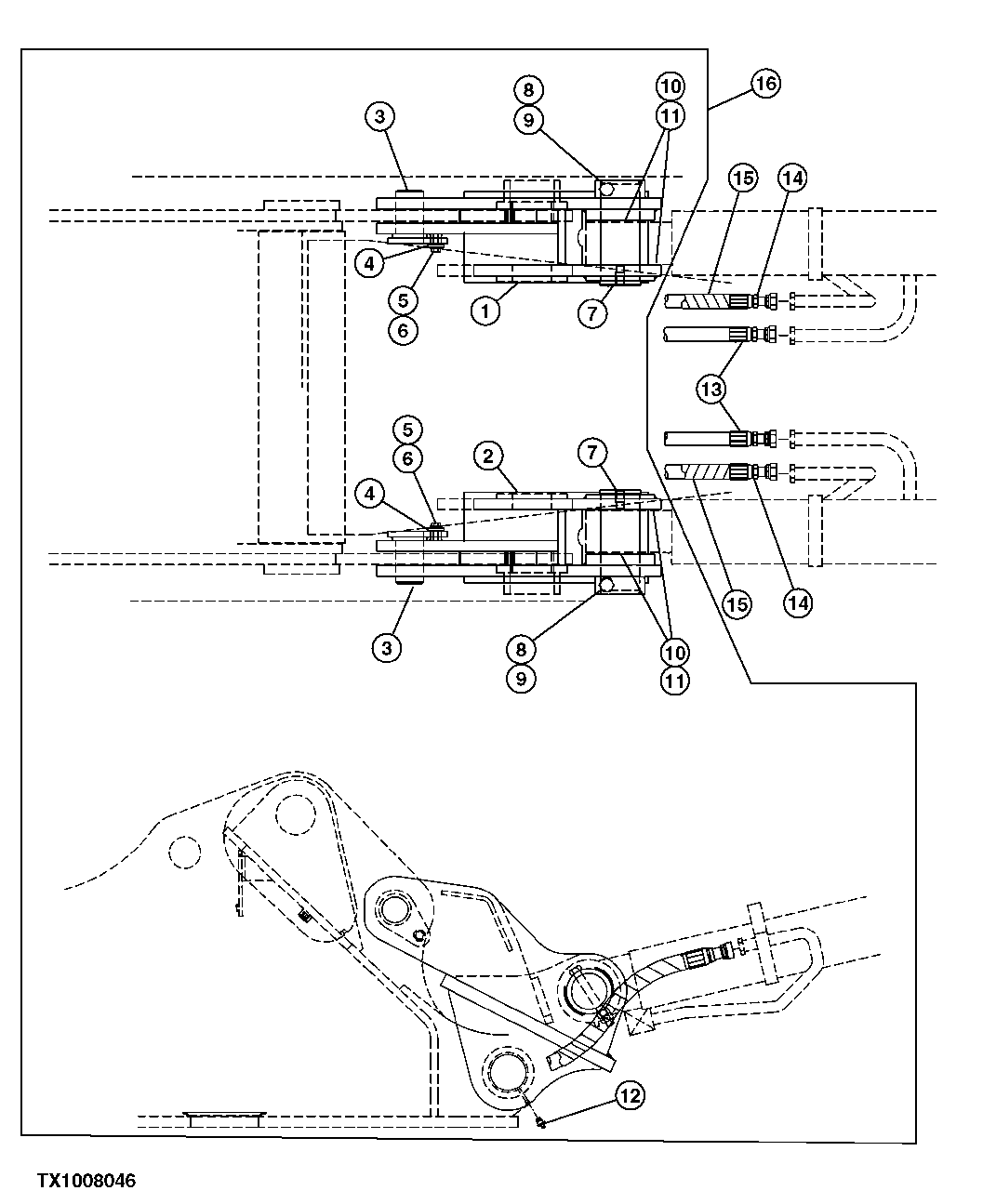

Запчасти John Deere 7C ZTS 540 - BOOM HOIST ADAPTER KIT (FOR USE WITH 2.96M ARM, 230C FRONT) 3344 Boom

1

FFSB111412

Adapter Fitting

1шт.

2

FFSB111413

Adapter Fitting

1шт.

3

FFSB108070

Pin Fastener

2шт.

4

FFSB103467

Spacer

2шт.

5

12M7058

Lock Washer

12 mm (SUB FOR FFSB107 911 ) (SUB FOR 12M7067)

2шт.

6

19M7403

Cap Screw

M12 X 35 (SUB FOR FFSB103477)

2шт.

7

FF105542

Pin

(SUB FOR FFSB109703)

2шт.

8

19M8100

Cap Screw

M20 X 180 (SUB FOR FFSB109229, 19M8503)

2шт.

9

14M7277

Nut

M20 (SUB FOR FFSB109330)

4шт.

10

TH106307

Washer

(SUB FOR FFSB108127)

4шт.

11

TH106308

Washer

(SUB FOR FFSB108128)

4шт.

12

T162396

Lubrication Fitting

(SUB FOR FFSB109615)

2шт.

13

FFSB104065

Hydraulic Hose

2шт.

14

FFSB111644

Hydraulic Hose

1шт.

15

XHG125

Cover

(SUB FOR FFSB108315)

1шт.

16

Kit

(WHOLE GOODS) ( AT280811 NLA) Standard Boom Hoist

1шт.
