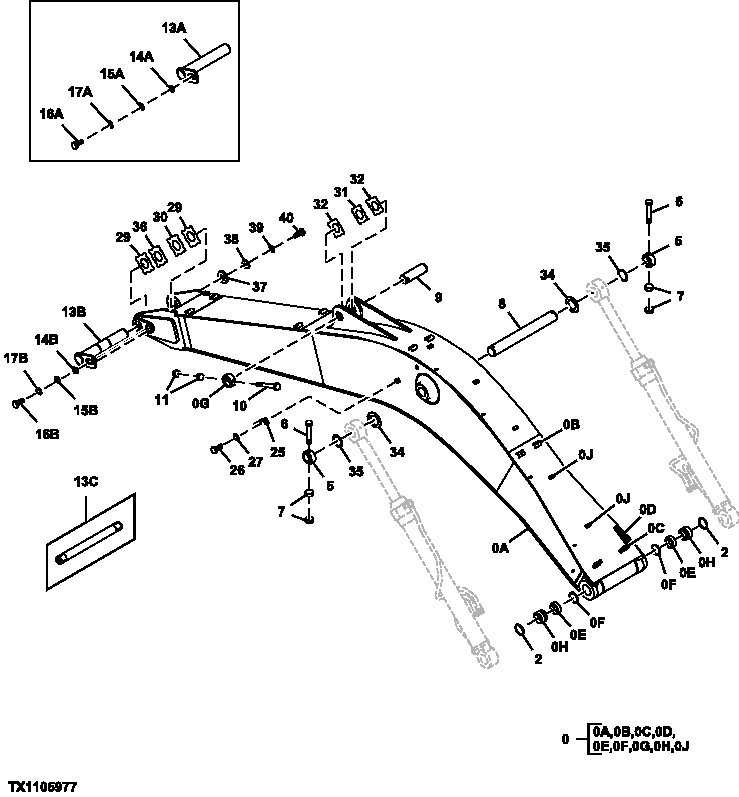

Запчасти John Deere 7C ZTS 537 - EXCAVATOR BOOM (FOR USE WITH 3.10M ARM, 270C) 3344 Boom

0

7038670

Excavator Boom

(SUB FOR TH7038670)

1шт.

0A

Excavator Boom

( TH5007002 OR 5007002 NLA)

1шт.

0B

AP33691

Support

8шт.

0C

P64776

Support

2шт.

0D

T115120

Strap

1шт.

0E

4364501

Bushing

SUB FOR AT217799

2шт.

0F

TH102411

Seal

2шт.

0G

4434956

Stop

SUB FOR TH4434956

1шт.

0H

4443885

Bushing

SUB FOR TH4443885

2шт.

0J

9738322

Support

2шт.

2

TH102411

Seal

2шт.

5

Plate

2шт.

6

4435127

Pin Fastener

(SUB FOR TH4435127)

2шт.

7

14M7277

Nut

M20

4шт.

8

3090165

Pin Fastener

(SUB FOR TH3090165)

1шт.

9

3088751

Pin

(SUB FOR TH3088751)

1шт.

10

4435128

Pin Fastener

(SUB FOR TH4435128)

1шт.

11

R114125

Nut

(SUB FOR THJ950022 OR J950022)

2шт.

13A

Pin Fastener

SUB (1) 8094392, (1) 4608853, (1) 4615566 , (1) T116332, (4) J257218, (1) 4615565, ( 1) 4611642 AND (3) J921850; TH8079425 NLA

1шт.

13B

8094392

Pin

1шт.

13C

AT361203

Pin

Expander Pin Option

1шт.

T248629

Sleeve

2шт.

14A

4608853

Washer

(SUB FOR 4424425)

1шт.

14B

4611688

Block Clamp

1шт.

15A

4640621

Plate

4426128 NA

1шт.

15B

4611733

Plate

1шт.

16A

T116332

Bolt

(SUB FOR J921840)

1шт.

16B

J922245

Bolt

1шт.

17A

J257218

Lock Washer

1шт.

17B

J257222

Lock Washer

1шт.

25

4224631

Angle

(SUB FOR TH111685)

1шт.

26

J901425

Cap Screw

(SUB FOR TH104071)

1шт.

27

12H317

Lock Washer

9/16"

1шт.

29

4445638

Thrust Washer

(SUB FOR TH4445638)

2шт.

30

4445639

Thrust Washer

(SUB FOR TH4445639)

1шт.

31

4444285

Thrust Washer

(SUB FOR TH4444285)

1шт.

32

4444284

Thrust Washer

(SUB FOR TH4444284)

2шт.

34

4450014

Plate

(SUB FOR TH4450014)

2шт.

35

4445640

Plate

(SUB FOR TH4445640)

2шт.

36

4460372

Thrust Washer

(SUB FOR TH4460372)

1шт.

37

4615565

Spacer

1шт.

38

4611642

Washer

1шт.

39

J257218

Lock Washer

3шт.

40

J921850

Bolt

3шт.
