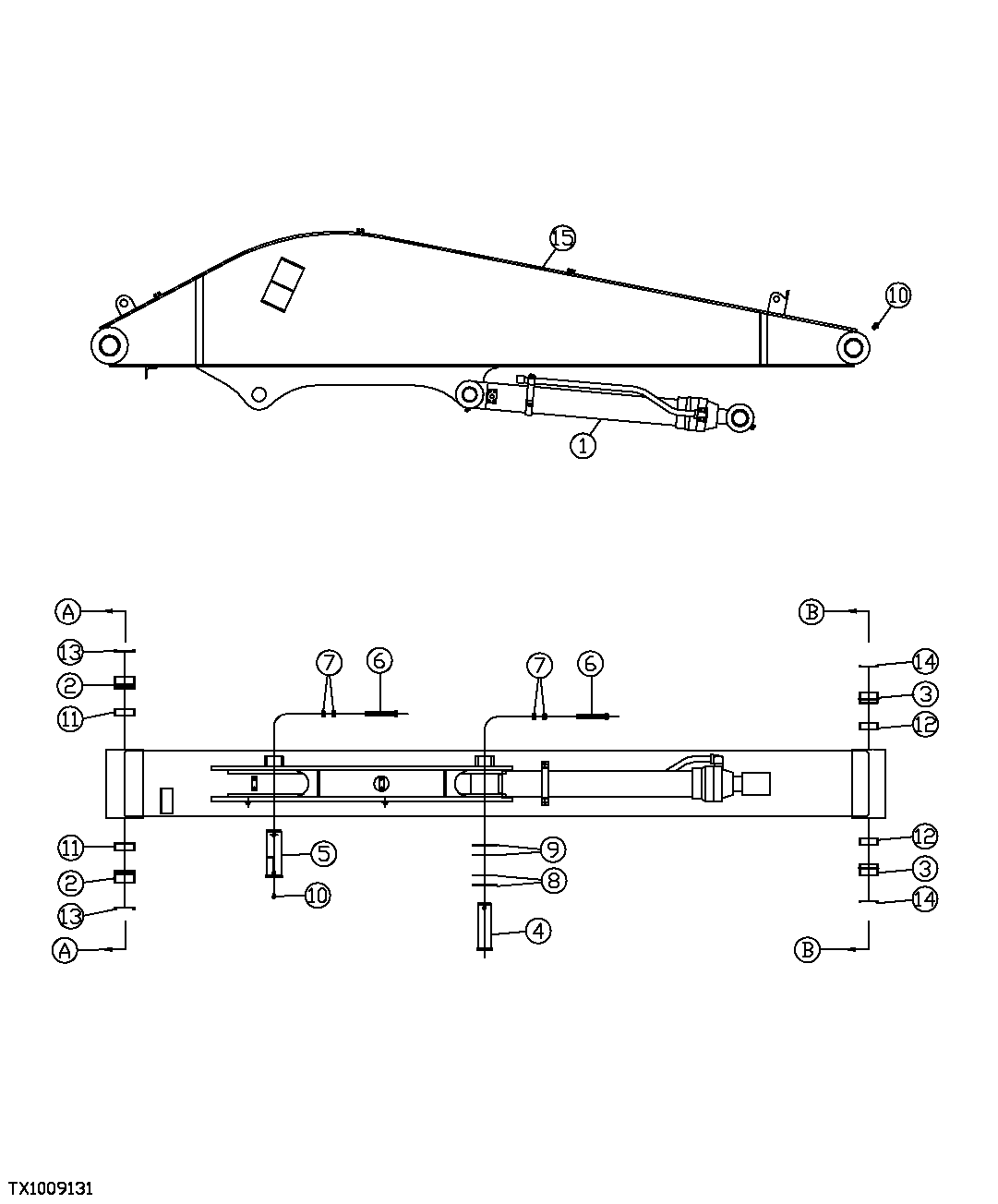

Запчасти John Deere 7C ZTS 534 - HEELER ARM (LIVE-HEEL), PINS AND BUSHINGS 3340 Backhoe & Excavator Frames

1

Hydraulic Cylinder

( 9206324, FFSB111642 NLA)

1шт.

AT330346

Hydraulic Cylinder

(REMAN) (SUB FOR 9245981, FFSB114655)

1шт.

2

4443884

Bushing

2шт.

3

4443885

Bushing

2шт.

4

FFSB111351

Pin Fastener

1шт.

5

FFSB107287

Pin Fastener

(SUB FOR FFSB102815)

1шт.

6

19M8503

Cap Screw

M20 X 160 ( FFSB109229 NLA)

2шт.

7

14M7277

Nut

M20 (SUB FOR J951020)

4шт.

8

4361179R

Thrust Washer

(SUB FOR 4361179)

2шт.

9

4361604R

Thrust Washer

(SUB FOR 4361604)

2шт.

10

JD7769

Lubrication Fitting

3шт.

11

4381855

Bushing

2шт.

12

4364501

Bushing

2шт.

13

TH103200

Seal

(SUB FOR 4085479)

2шт.

14

TH102411

Seal

(SUB FOR 4074008)

2шт.

15

FFSB111342

Arm

1шт.
