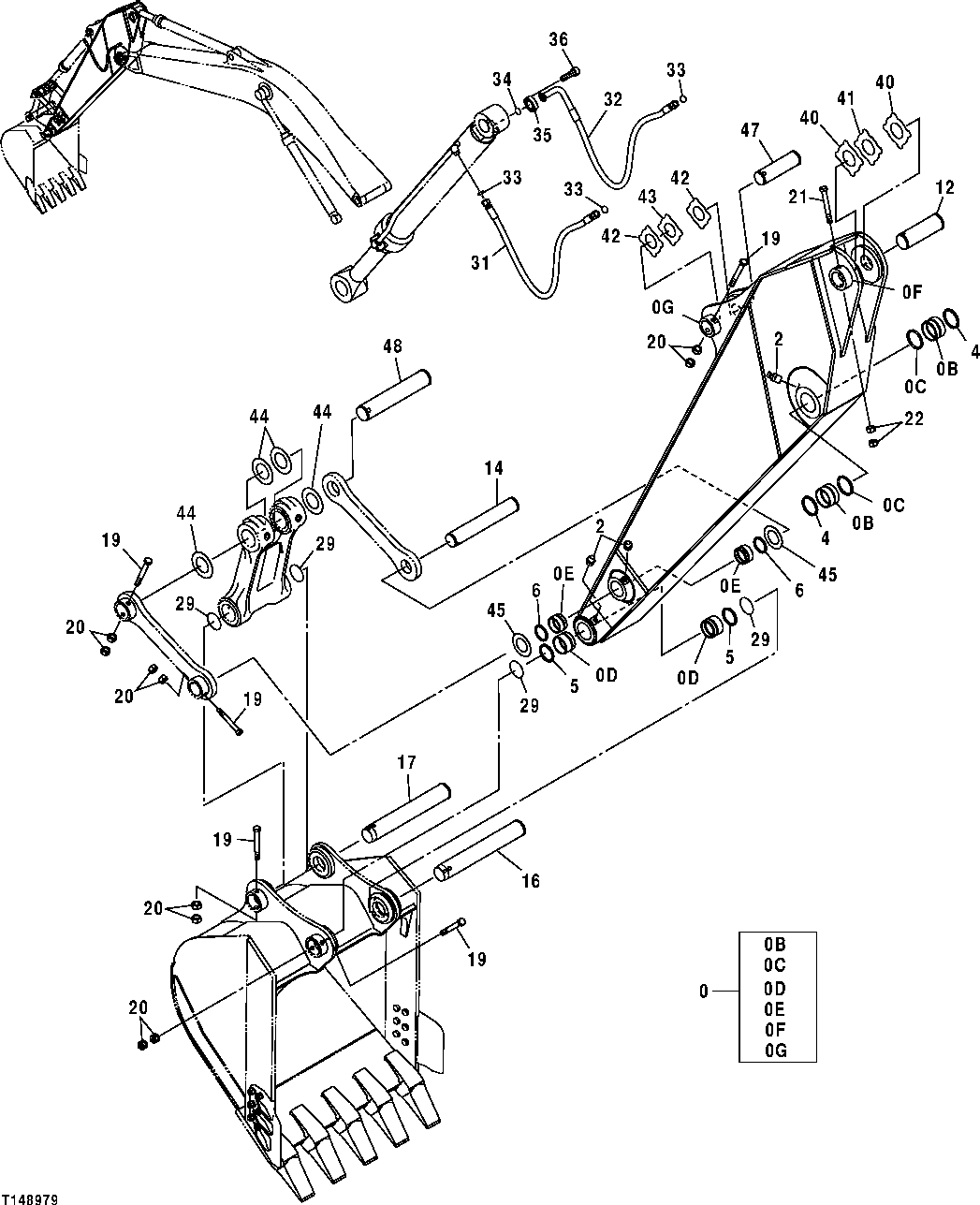

Запчасти John Deere 7C ZTS 527 - EXCAVATOR ARM ASSEMBLY AND PINS (230C, 2.96M) 3340 Backhoe & Excavator Frames

0

7038099

Arm

(SUB FOR TH7038099)(ARM ASSE MBLY WITH SHIMS AND WASHERS)

1шт.

0B

4443883

Bushing

(SUB FOR TH4443883)

2шт.

0C

TH102411

Seal

2шт.

0D

4443880

Bushing

(SUB FOR TH4443880)

2шт.

0E

4434036

Bushing

(SUB FOR TH4434036)

2шт.

0F

4434956

Stop

(SUB FOR TH4434956)

1шт.

0G

4434953

Stop

(SUB FOR TH4434953)

1шт.

2

TH100074

Lubrication Fitting

6шт.

4

TH102411

Seal

2шт.

5

TH102445

Seal

2шт.

6

TH102446

Seal

2шт.

12

3088751

Pin

(SUB FOR TH3088751)

1шт.

14

3088752

Pin

(SUB FOR TH3088752)

1шт.

16

3088753

Pin

(SUB FOR TH3088753)

1шт.

17

3088754

Pin

(SUB FOR TH3088754)

1шт.

19

4435126

Pin Fastener

(SUB FOR TH4435126)

5шт.

20

14M7277

Nut

M20 (SUB FOR 14M7144)

10шт.

21

4435128

Pin Fastener

(SUB FOR TH4435128)

1шт.

22

R114125

Nut

(SUB FOR THJ950022 OR J950022)

2шт.

29

4089028

O-Ring

(STANDARD O-RING)

4шт.

AT349466

Seal

(SPLIT O-RING)

4шт.

T397473

V-Ring Seal

V O-Ring

4шт.

31

AT155741

Hydraulic Hose

1шт.

32

AT155740

Hydraulic Hose

1шт.

33

T77858

O-Ring

3шт.

34

T78313

O-Ring

1шт.

35

4085560

Flange Fitting

(SUB FOR TH101960)

2шт.

36

19M9163

Screw

M12 X 40 (SUB FOR J781240)

4шт.

40

4470743

Thrust Washer

(SUB FOR 4444284)

2шт.

41

4444285

Thrust Washer

(SUB FOR TH4444285)

1шт.

42

4444286

Thrust Washer

(SUB FOR TH4444286)

2шт.

43

4444287

Thrust Washer

(SUB FOR TH4444287)

1шт.

44

4476062

Thrust Washer

(SUB FOR 4450013)

4шт.

45

4450012

Thrust Washer

(SUB FOR TH4450012)

2шт.

47

AT217742

Pin

1шт.

48

T138885

Pin

1шт.

T138902

Bushing

1шт.

19M8029

Cap Screw

M16 X 30 (SUB FOR 19M7608)

1шт.
