Запчасти John Deere 7C ZTS 525 - PILOT CONTROLLER VALVE COMPONENTS (DIG AND SWING) (SN -XXXXXX) 3315 CONTROLS LINKAGE

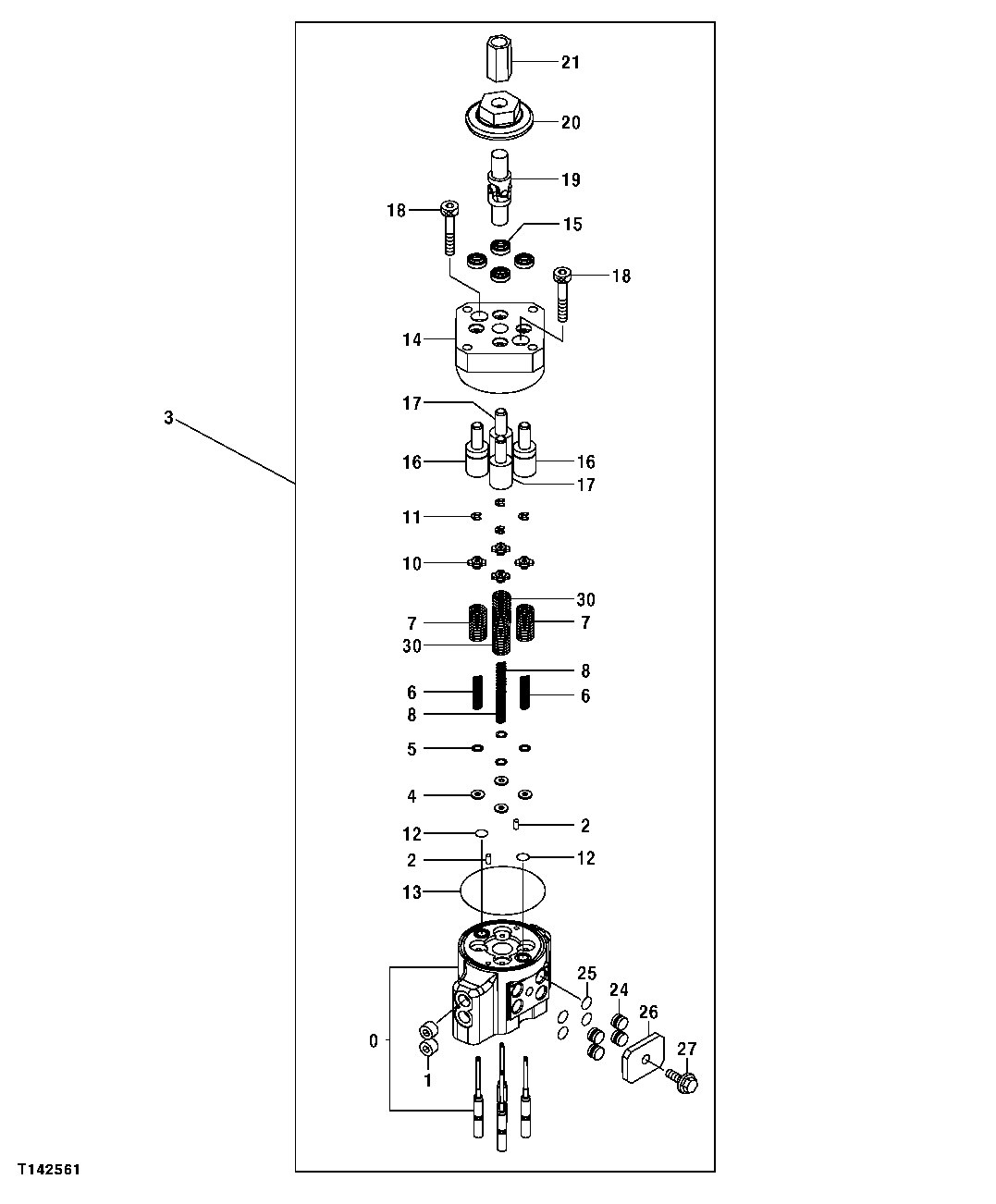

Схема запчастей John Deere 7C ZTS - 525 - PILOT CONTROLLER VALVE COMPONENTS (DIG AND SWING) (SN -XXXXXX) 3315 CONTROLS LINKAGE

Артикул

Название

Примечание

Количество

0

Case

( TH8081319 NLA)

1шт.

1

942011

Fitting Plug

(SUB FOR 94-2011)

2шт.

2

J400408

Pin

2шт.

3

9239583

Hydr./Pilot Control Valve

(SUB FOR 9195304)(USE IF AVAILABLE - I F NOT AVAILABLE SUB 9239583, ALONG WITH (3) 19M7139, (3) 24M7055, AND 4609956)

1шт.

4

4410898

Spacer

4шт.

5

4173208

Shim

12шт.

6

4425414

Spring

2шт.

7

4421771

Spring

2шт.

8

4429120

Spring

2шт.

10

4429119

Guide

4шт.

11

4437333

Snap Ring

4шт.

12

4431914

O-Ring

2шт.

13

4431915

O-Ring

1шт.

14

Manifold

( 2044350 NLA) (SUB 9234284, 4477 852, 9759158 AND 9759157 (MANIFOLD HAS ONE PUNCH MARK ON TOP FACE))

1шт.

9234284

Manifold

(SUB FOR 2044350 ) (USE WITH 4477 852, 9759158 AND 9759157)(MANIFOLD HAS TWO PUNCH MARKS ON TOP FACE)

1шт.

15

4447050

Seal

(SUB 9234284, (4) 4477852, (2) 975915 8 AND (2) 9759157 ) (USE WITH 2044350)

4шт.

Seal

(SUB FOR 4447050 ) (USE WITH 9234284 , 9759158 AND 9759157)( 4477852 NLA)

4шт.

16

Piston

( 9754825 NLA) (SUB 9234284, (4) 4477852, (2) 9759158 AND ( 2) 9759157 ) (USE WITH 2044350 )

2шт.

9759157

Piston

(SUB FOR 9754825 ) (USE WITH (4) 4477852, 9234284 AND (2) 9759158)

2шт.

17

Piston

( 9754826 NLA) (SUB 9234284, (4) 4477852, (2) 9759158 AND ( 2) 9759157 ) (USE WITH 2044350 )

2шт.

9759158

Piston

(SUB FOR 9754826 ) (USE WITH (4) 4477852, (2) 9759158 AND 9234284)

2шт.

18

19M8923

Screw

M8 X 45 (SUB FOR J780845)

2шт.

19

4335060

Universal Joint

1шт.

20

4639115

Cam

(SUB FOR 4437106)

1шт.

21

4182067

Jointer

1шт.

24

4442323

Pipe Plug

4шт.

25

CH11560

Packing

4шт.

26

4442339

Plate

1шт.

27

19M7932

Cap Screw

M8 X 16

1шт.

30

4446960

Spring

2шт.

Выбрано товаров: 30
