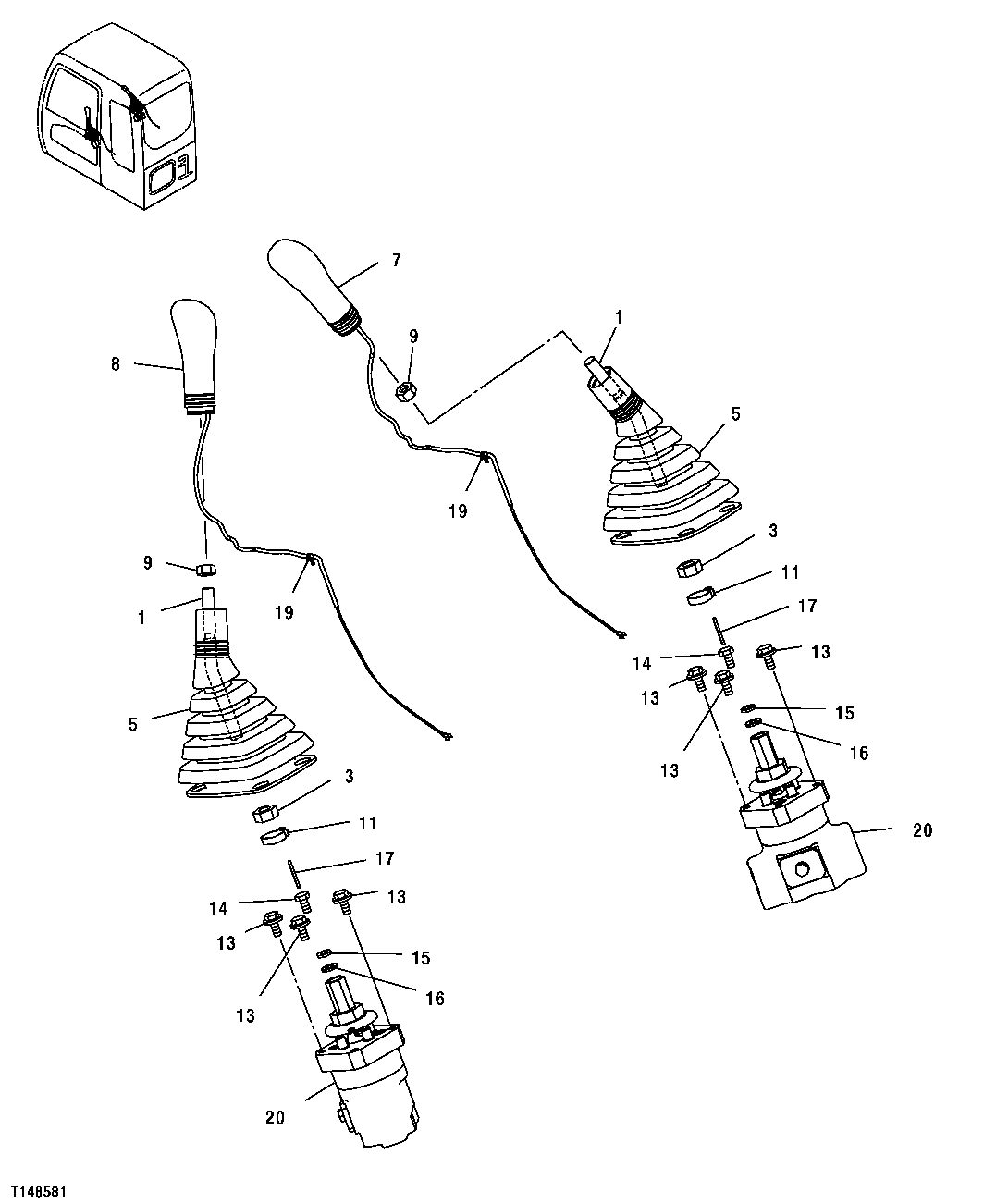

Запчасти John Deere 7C ZTS 524 - CONTROL LEVER (FRONT AND SWING) 3315 CONTROLS LINKAGE

1

AT323054

Lever

(SUB FOR 4445322, THIS APPLICAT ION)(INCLUDES POWER LIFT SWITCH)

2шт.

3

J950014

Nut

2шт.

5

2045470

Boot

2шт.

7

2045471

Grip

1шт.

8

2045472

Grip

1шт.

9

14M7357

Nut

M12 (SUB FOR J952012)

2шт.

11

H77698

Tie Band

(SUB FOR 4055311)

2шт.

13

J020816

Bolt

6шт.

19M7139

Cap Screw

M8 X 20 (SUB FOR J260820 OR J900820)

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR A590108)

6шт.

14

4438279

Bolt

2шт.

4609956

Bolt

2шт.

15

12M7065

Lock Washer

8 mm (SUB FOR A590908)

2шт.

16

24M7055

Washer

8.400 X 16 X 1.600 mm (SUB FOR A590108)

2шт.

17

4144011

Spring Pin

2шт.

19

H77698

Tie Band

(SUB FOR 4300351)

2шт.

20

FYB60000655

Hydr./Pilot Control Valve

SUB FOR 9239583 (SUB FOR 9195304)(USE IF AV AILABLE - IF NOT AVAILABLE SUB 9239583, ALON G WITH (3) 19M7139, (3) 24M7055, AND 4609956 )

2шт.

FYB60000655

Hydr./Pilot Control Valve

SUB FOR 9239583

1шт.
