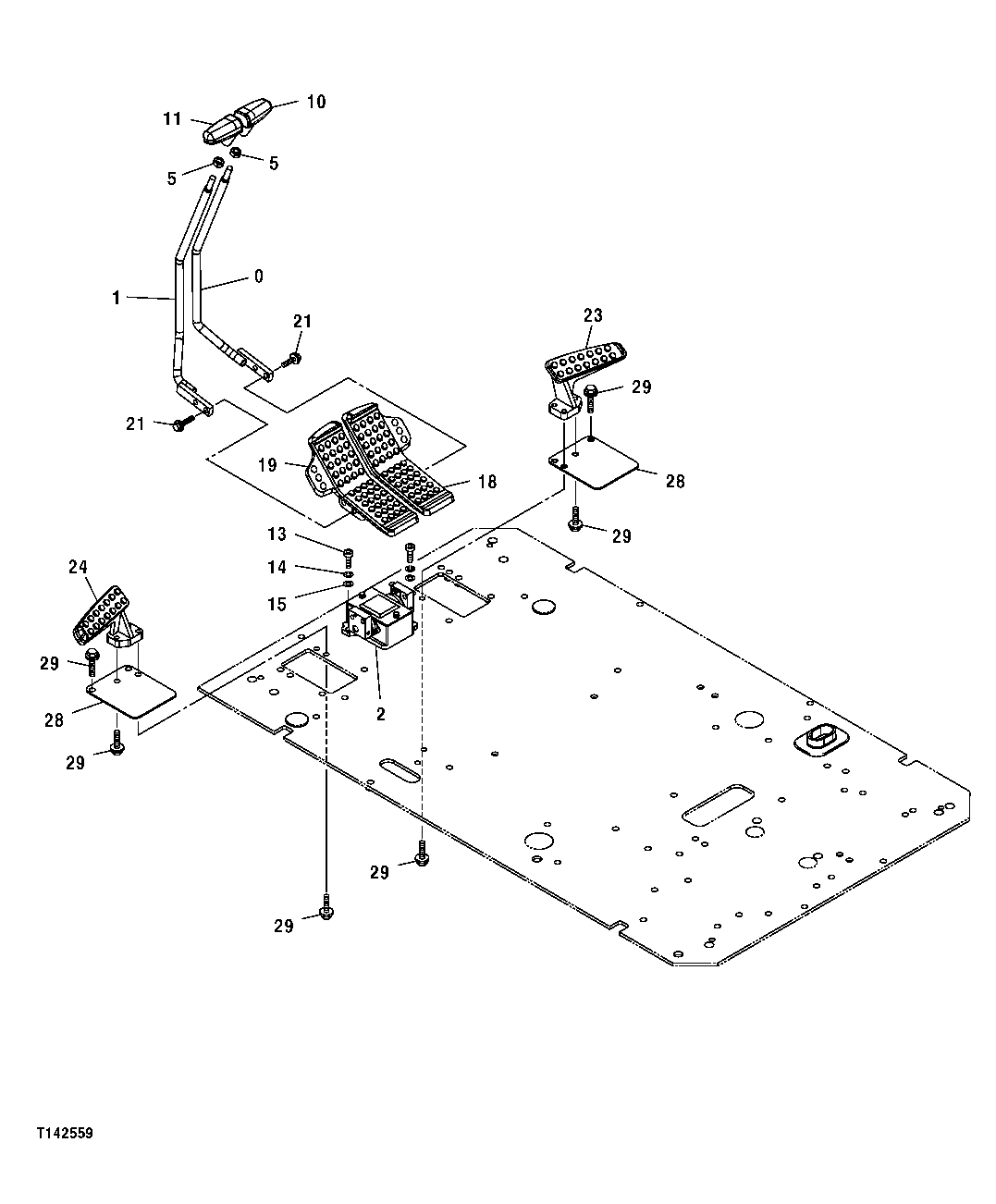

Запчасти John Deere 7C ZTS 520 - SIDE ENTRY CAB PROPEL PILOT CONTROLLER LEVERS AND PEDALS 3315 CONTROLS LINKAGE

0

8075450

Lever

(SUB FOR TH8075450)

1шт.

1

8075449

Lever

(SUB FOR TH8075449)

1шт.

2

9195307

Hydr./Pilot Control Valve

(SUB FOR TH9195307)

1шт.

9235551

Hydr./Pilot Control Valve

(SUB FOR 9226365)

1шт.

5

4424185

Nut

(SUB FOR TH4424185)

2шт.

10

2051176

Grip

(SUB FOR TH2045468, 2045468)

1шт.

11

2051177

Grip

(SUB FOR TH2045469, 2045469)

1шт.

13

19M8337

Screw

M10 X 30

2шт.

14

12M7066

Lock Washer

10 mm

2шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

18

1024384

Pedal

(SUB FOR AT202292)

1шт.

19

1024224

Pedal

(SUB FOR AT202291)

1шт.

21

19M7658

Cap Screw

M10 X 50

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

23

1015478

Footrest

(SUB FOR AT154056)

1шт.

24

1015477

Footrest

(SUB FOR AT154055)

1шт.

28

3052543

Cover

(SUB FOR AT154127)

2шт.

29

19M7550

Cap Screw

M10 X 35

8шт.

12M7066

Lock Washer

10 mm

8шт.
