Запчасти John Deere 7C ZTS 512 - HEAVY DUTY BUCKET 3302 BUCKETS

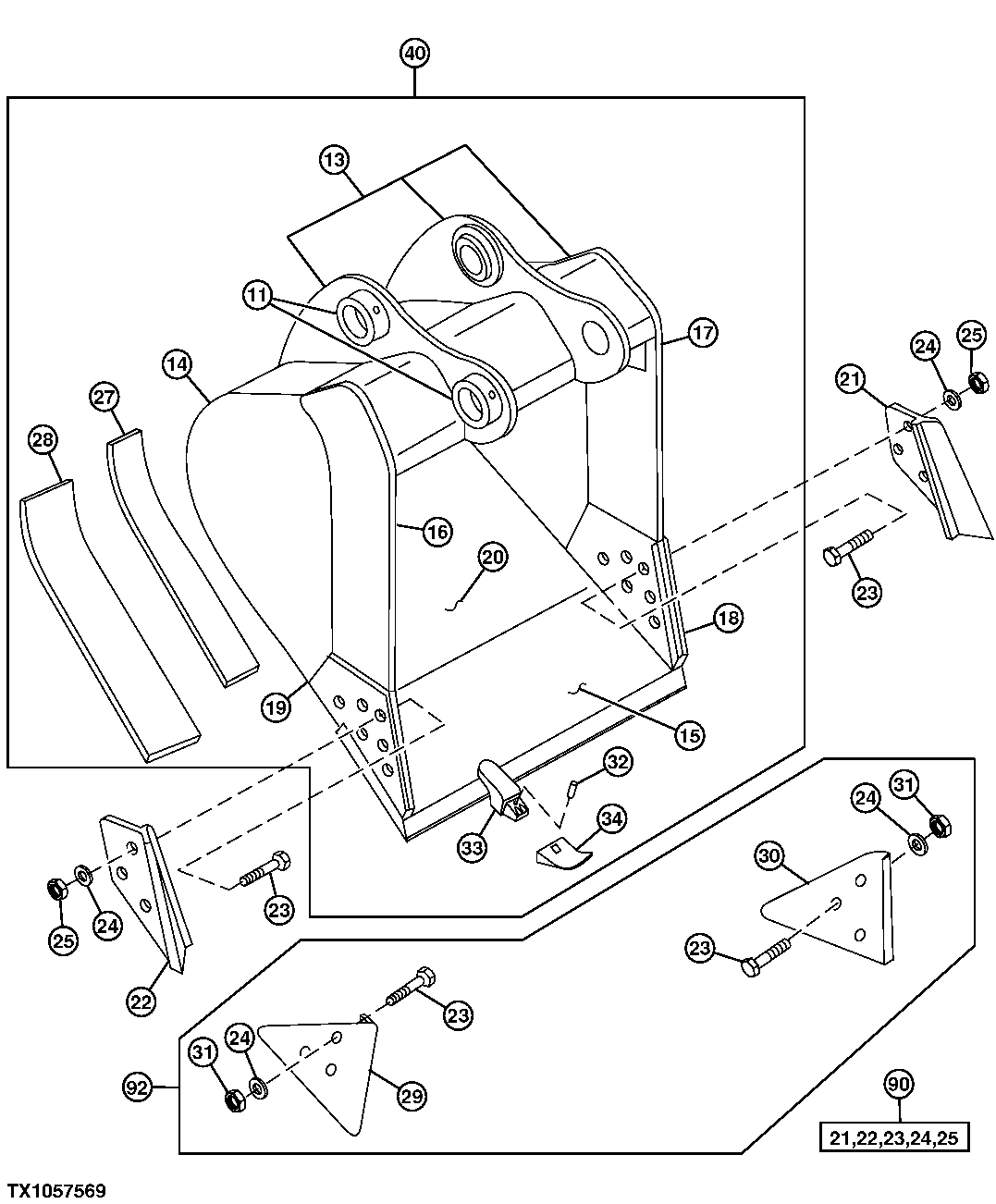

Схема запчастей John Deere 7C ZTS - 512 - HEAVY DUTY BUCKET 3302 BUCKETS

Артикул

Название

Примечание

Количество

11

TH102409

Bushing

2шт.

13

C603692

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300804

Plate

(F) (RH) (LH)

1шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH) (72 INCHES)

1шт.

16

300526

Vertical Cutter

(F) (SIDE CUTTER) (UPPER RH)

1шт.

17

300527

Vertical Cutter

(F) (SIDE CUTTER) (UPPER LH)

1шт.

18

304568

Vertical Cutter

(F) (CUTTER INSERT) (LH)

1шт.

19

304567

Vertical Cutter

(F) (CUTTER INSERT) (RH)

1шт.

20

600314

Moldboard

(F) (UPPER) (42 INCH BUCKET)

1шт.

600315

Moldboard

(F) (UPPER) (48 INCH BUCKET)

1шт.

603302

Moldboard

(F) (UPPER) (54 INCH BUCKET)

1шт.

600420

Moldboard

(F) (LOWER) (42 INCH BUCKET)

1шт.

600421

Moldboard

(F) (LOWER) (48 INCH BUCKET)

1шт.

603303

Moldboard

(F) (LOWER) (54 INCH BUCKET)

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300524

Bar

(F) (INNER WEAR)

2шт.

28

304564

Bar

(F) (OUTER WEAR)

2шт.

29

Shroud

Wear (SUB AT167874)

1шт.

30

Shroud

Wear (SUB AT167874)

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

40

Excavator Bucket

(SUB FOR AT172478 ) (SUB AT3391 76)( AT332706 NLA) (42 INCH - 1. 38 CUBIC YARD) (REQUIRES 5 TEETH )

1шт.

Excavator Bucket

(SUB FOR AT172479 ) (SUB AT3391 78)( AT332707 NLA) (48 INCH - 1. 60 CUBIC YARD) (REQURIES 6 TEETH )

1шт.

Excavator Bucket

(SUB FOR AT172480 ) (SUB AT3391 80)( AT332708 NLA) (54 INCH - 1. 82 CUBIC YARD) (REQUIRES 6 TEETH )

1шт.

90

End Bit

( AT131080 NLA) (SIDE CUTTER KIT)

1шт.

92

Kit

( AT167874 NLA) (EDGE P ROTECTOR) Edge Protector

1шт.

Выбрано товаров: 32
