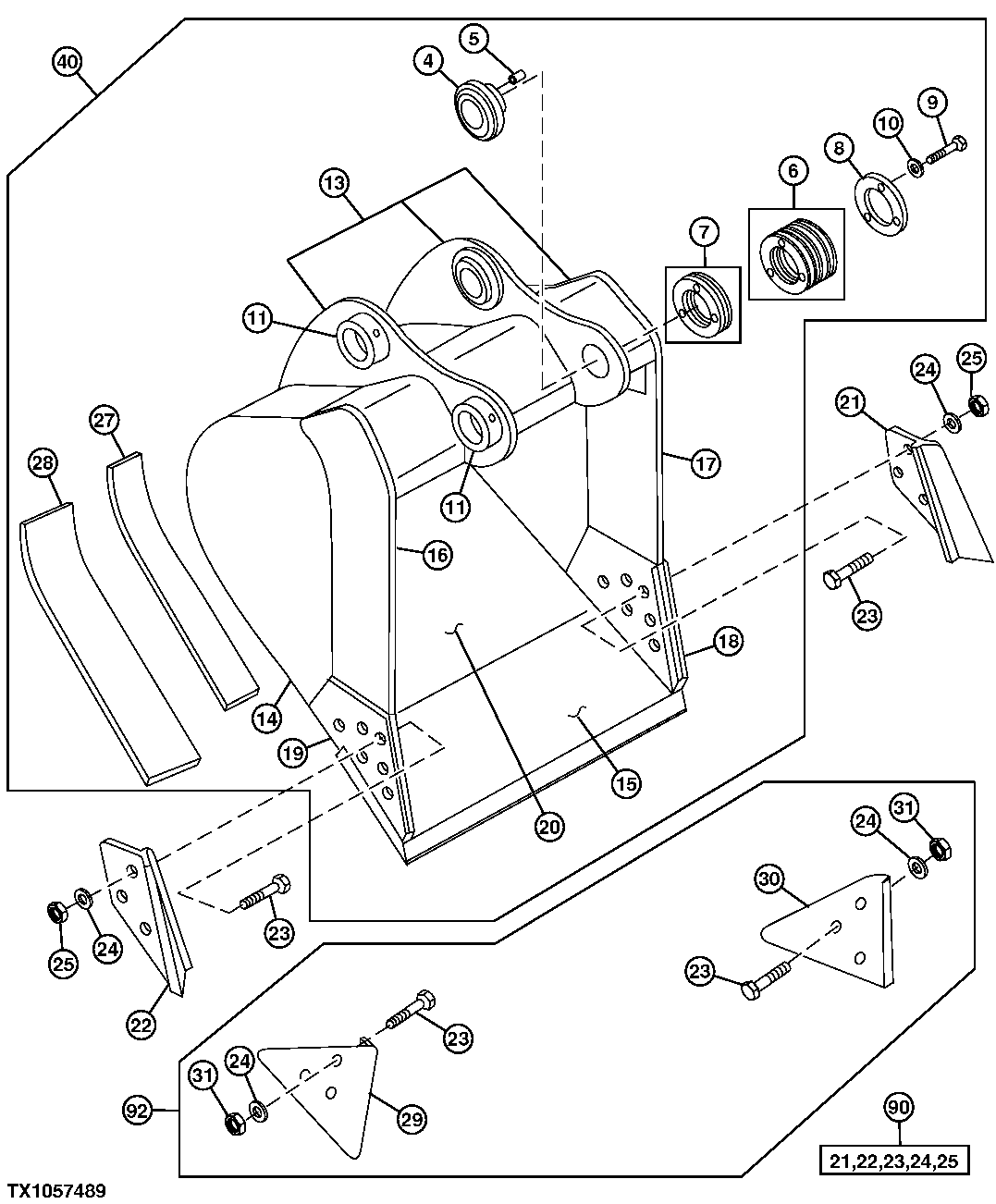

Запчасти John Deere 7C ZTS 511 - HEAVY DUTY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 BUCKETS

4

AT131084

Bushing

1шт.

5

R48685

Dowel Pin

1шт.

6

TH102460

Washer

(1 MM)

6шт.

7

TH102461

Shim

(.5 MM)

2шт.

8

Plate

( TH102463 NLA)

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH102409

Bushing

2шт.

13

C603692

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300804

Plate

(F) (RH) (LH)

1шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH) (72 INCHES)

1шт.

16

300526

Vertical Cutter

(F) (SIDE CUTTER) (UPPER RH)

1шт.

17

300527

Vertical Cutter

(F) (SIDE CUTTER) (UPPER LH)

1шт.

18

304568

Vertical Cutter

(F) (CUTTER INSERT) (LH)

1шт.

19

304567

Vertical Cutter

(F) (CUTTER INSERT) (RH)

1шт.

20

600312

Moldboard

(F) (UPPER) (30 INCH BUCKET)

1шт.

600313

Moldboard

(F) (UPPER) (36 INCH BUCKET)

1шт.

600314

Moldboard

(F) (UPPER) (42 INCH BUCKET)

1шт.

600315

Moldboard

(F) (UPPER) (48 INCH BUCKET)

1шт.

603302

Moldboard

(F) (UPPER) (54 INCH BUCKET)

1шт.

600418

Moldboard

(F) (LOWER) (30 INCH BUCKET)

1шт.

600419

Moldboard

(F) (LOWER) (36 INCH BUCKET)

1шт.

600420

Moldboard

(F) (LOWER) (42 INCH BUCKET)

1шт.

600421

Moldboard

(F) (LOWER) (48 INCH BUCKET)

1шт.

603303

Moldboard

(F) (LOWER) (54 INCH BUCKET)

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300524

Bar

(F) (INNER WEAR)

2шт.

28

304564

Bar

(F) (OUTER WEAR)

2шт.

29

Shroud

Wear (SUB AT167874)

1шт.

30

Shroud

Wear (SUB AT167874)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

( AT172476 NLA) (WHOLE GOODS) (30 INC H - .95 CUBIC YARD) (REQUIRES 4 TEETH)

1шт.

Excavator Bucket

( AT172477 NLA) (WHOLE GOODS) (36 INCH - 1.16 CUBIC YARD) (REQUIRES 4 TEETH)

1шт.

Excavator Bucket

(SUB AT332706)( AT172478 NLA) (WHOLE GOODS) (42 INCH - 1.38 CUBIC YARD) (REQUIRES 5 TEETH )

1шт.

Excavator Bucket

(SUB AT332707)( AT172479 NLA) (WHOLE GOODS) (48 INCH - 1.60 CUBIC YARD) (REQURIES 6 TEETH )

1шт.

Excavator Bucket

(SUB AT332708)( AT172480 NLA) (WHOLE GOODS) (54 INCH - 1.82 CUBIC YARD) (REQUIRES 6 TEETH )

1шт.

90

End Bit

( AT131080 NLA) (SIDE CUTTER KIT)

1шт.

92

Kit

Edge Protector ( AT167874 NLA)

1шт.
