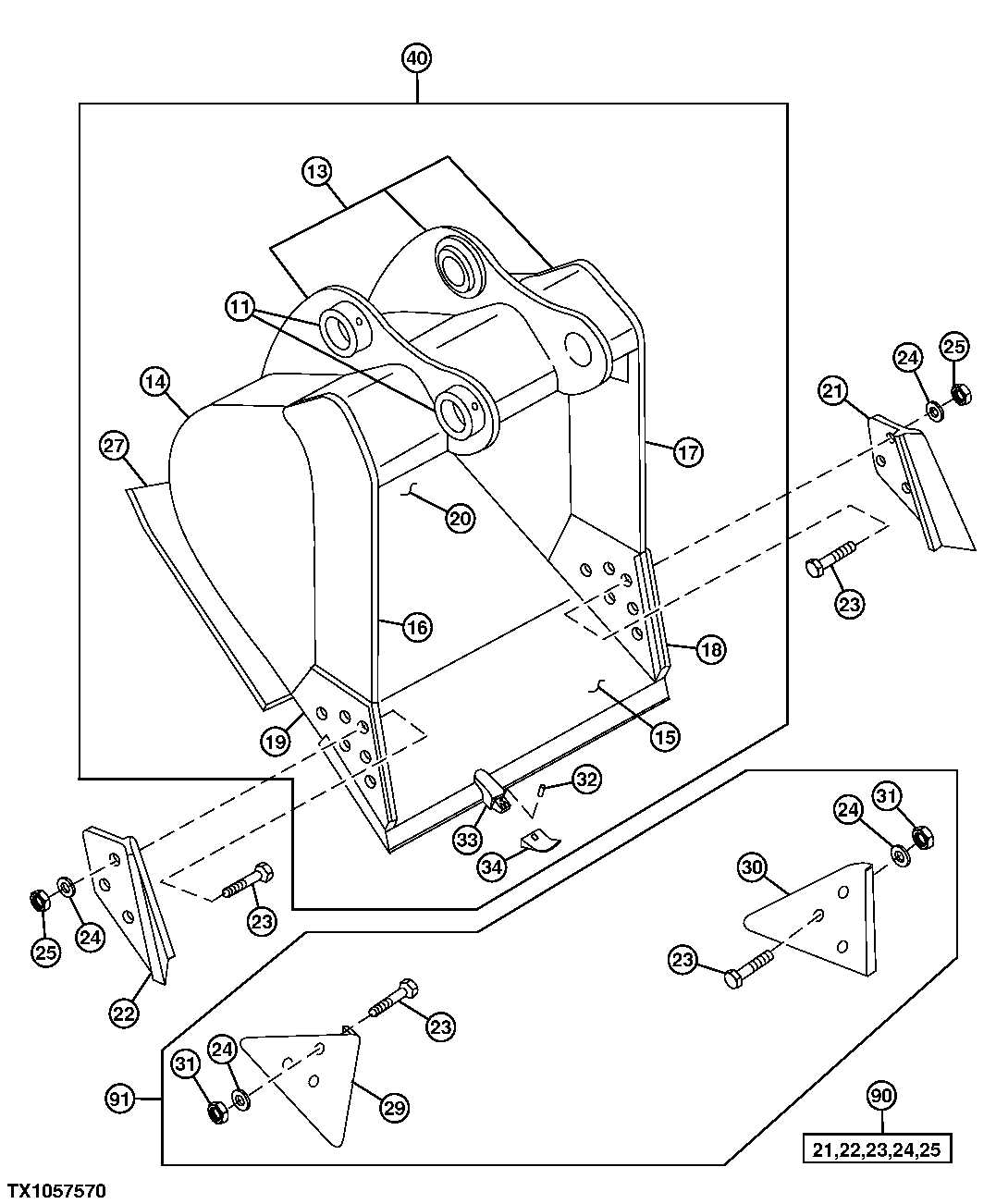

Запчасти John Deere 7C ZTS 510 - SEVERE DUTY PLATE LIP BUCKET 3302 BUCKETS

11

TH102409

Bushing

2шт.

13

C603692

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304371

Plate

(F) (RH) (LH)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

304368

Vertical Cutter

(F) (SIDE CUTTER) (UPPER RH)

1шт.

17

304367

Vertical Cutter

(F) (SIDE CUTTER) (UPPER LH)

1шт.

18

304369

Vertical Cutter

(F) (SIDE CUTTER INSERT) (LH)

1шт.

19

304370

Vertical Cutter

(F) (SIDE CUTTER INSERT) (RH)

1шт.

20

603868

Moldboard

(F) (30 INCH BUCKET)

1шт.

603869

Moldboard

(F) (36 INCH BUCKET)

1шт.

603870

Moldboard

(F) (42 INCH BUCKET)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

603873

Bar

(F) (DOUBLE BOTTOM WEA R BAR) (30 INCH BUCKET)

1шт.

603874

Bar

(F) (DOUBLE BOTTOM WEA R BAR) (36 INCH BUCKET)

1шт.

603875

Bar

(F) (DOUBLE BOTTOM WEA R BAR) (42 INCH BUCKET)

1шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

40

Excavator Bucket

(SUB FOR AT163645)( AT332714 NLA) (30 I NCH - .95 CUBIC YARD) (REQUIRES 4 TEETH)

1шт.

Excavator Bucket

(SUB FOR AT163646)( AT332715 NLA) (36 IN CH - 1.16 CUBIC YARD) (REQUIRES 4 TEETH)

1шт.

Excavator Bucket

(SUB FOR AT163647)( AT332716 NLA) (42 IN CH - 1.38 CUBIC YARD) (REQUIRES 5 TEETH)

1шт.

90

End Bit

( AT131085 NLA) (SIDE CUTTER KIT)

1шт.

91

Kit

( AT167876 NLA) Edge Protector

1шт.
