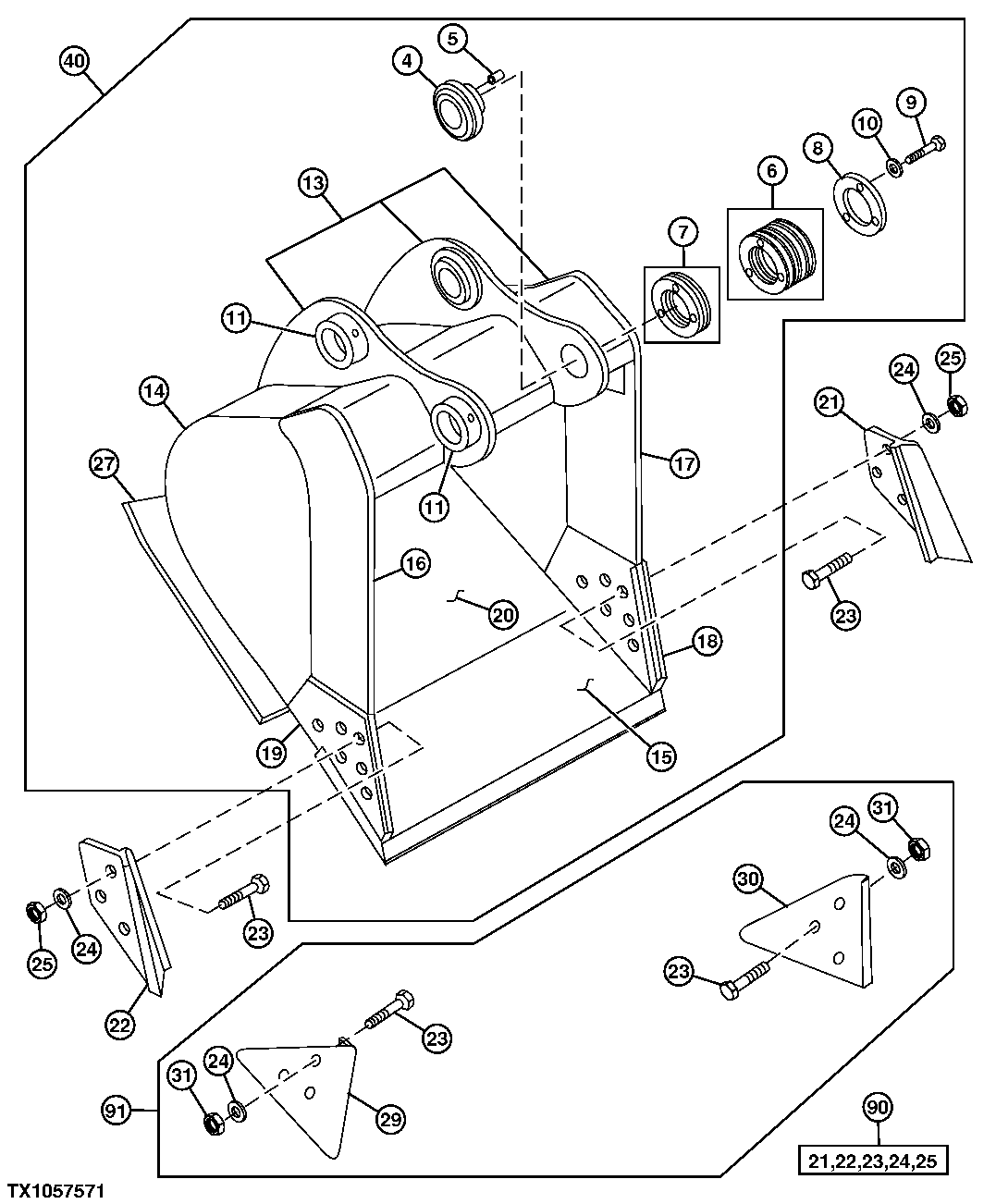

Запчасти John Deere 7C ZTS 509 - SEVERE DUTY PLATE LIP BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 BUCKETS

4

AT131084

Bushing

1шт.

5

R48685

Dowel Pin

1шт.

6

TH102460

Washer

6шт.

7

TH102461

Shim

2шт.

8

Plate

( TH102463 NLA)

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH102409

Bushing

2шт.

13

C603692

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304371

Plate

(F) (RH) (LH)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

304368

Vertical Cutter

(F) (SIDE CUTTER) (UPPER RH)

1шт.

17

304367

Vertical Cutter

(F) (SIDE CUTTER) (UPPER LH)

1шт.

18

304369

Vertical Cutter

(F) (SIDE CUTTER INSERT) (LH)

1шт.

19

304370

Vertical Cutter

(F) (SIDE CUTTER INSERT) (RH)

1шт.

20

603868

Moldboard

(F) (30 INCH BUCKET)

1шт.

603869

Moldboard

(F) (36 INCH BUCKET)

1шт.

603870

Moldboard

(F) (42 INCH BUCKET)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

603873

Bar

(F) (DOUBLE BOTTOM WEA R BAR) (30 INCH BUCKET)

1шт.

603874

Bar

(F) (DOUBLE BOTTOM WEA R BAR) (36 INCH BUCKET)

1шт.

603875

Bar

(F) (DOUBLE BOTTOM WEA R BAR) (42 INCH BUCKET)

1шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

(SUB AT332714)(WHOLE GOODS) (30 INCH - .95 C UBIC YARD) (REQUIRES 4 TEETH) ( AT163645 NLA)

1шт.

Excavator Bucket

(SUB AT332715)(WHOLE GOODS) ( 36 INCH - 1.16 CUBIC YARD) (RE QUIRES 4 TEETH) ( AT163646 NLA )

1шт.

Excavator Bucket

(SUB AT332716)(WHOLE GOODS) ( 42 INCH - 1.38 CUBIC YARD) (RE QUIRES 5 TEETH) ( AT163647 NLA )

1шт.

90

Kit

( AT131085 NLA) (SIDE CUTTER KIT)

1шт.

91

Kit

( AT167876 NLA) (EDGE PROTECTOR)

1шт.
