30 - PROPEL MOTOR COMPONENTS (HIGH DRAWBAR)(SN -200145)

Запчасти John Deere 7C ZTS 30 - PROPEL MOTOR COMPONENTS (HIGH DRAWBAR)(SN -200145) 0260 HYDRAULIC SYSTEM

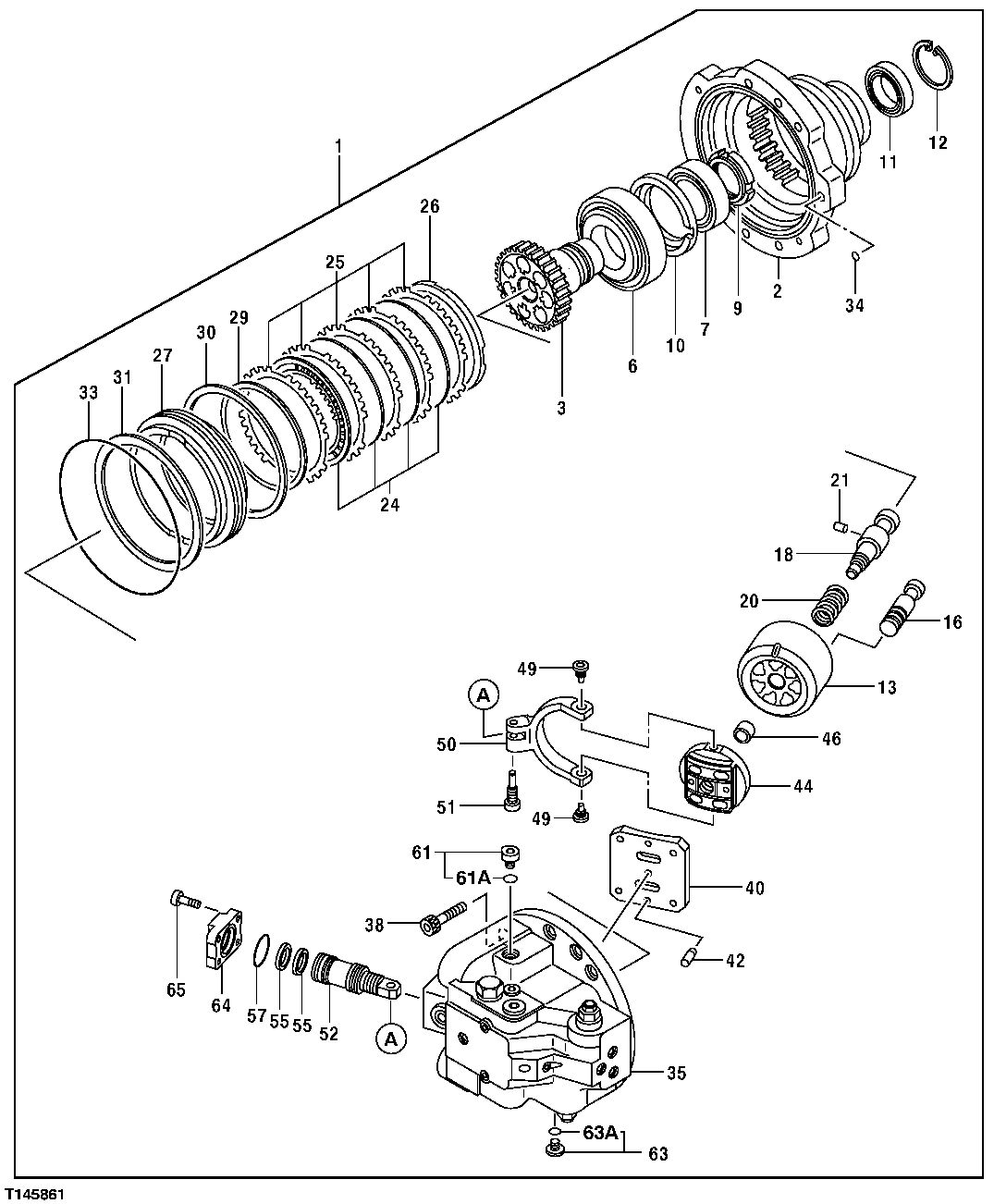

Схема запчастей John Deere 7C ZTS - 30 - PROPEL MOTOR COMPONENTS (HIGH DRAWBAR)(SN -200145) 0260 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9195488

Hydraulic Motor

(SUB FOR TH9195488), NLA, (ORDER 9195488EX)

1шт.

9195488EX

Hydraulic Motor Reman

(REMAN FOR 9195488)

1шт.

2

1019564

Transmission Case

(SUB FOR AT203601)

1шт.

3

2040523

Pinion Shaft

(SUB FOR AT219597)

1шт.

6

JD10304

Tapered Roller Bearing

1шт.

7

JD10063

Tapered Roller Bearing

1шт.

9

4191665

Nut

(SUB FOR TH111236)

1шт.

10

4389598

Spacer

(SUB FOR AT250082)

1шт.

11

4639126

Seal

(SUB FOR TH112094)

1шт.

12

4038529

Snap Ring

(SUB FOR AT130840)

1шт.

13

2040520

Rotor

(SUB FOR AT219595)

1шт.

16

8068583

Piston

(SUB FOR AT250203)

7шт.

18

3078298

Shaft

(SUB FOR AT219625)

1шт.

20

4194362

Compression Spring

(SUB FOR TH111266)

1шт.

21

4198956

Pin Fastener

(SUB FOR T107766)

1шт.

24

3036457

Plate

(SUB FOR TH111154)

4шт.

25

3036456

Plate

(SUB FOR TH111153)

5шт.

26

4193996

Spacer

(SUB FOR TH111260)

1шт.

27

3078190

Piston

(SUB FOR AT219623)

1шт.

29

4252401

O-Ring

(SUB FOR TH111261)

1шт.

30

4269474

Ring

(SUB FOR AT203606)

1шт.

31

3054505

Disk

(SUB FOR AT203607)

1шт.

33

4269473

O-Ring

(SUB FOR AT203608)

1шт.

34

T111819

O-Ring

1шт.

35

9158391

Flow Control Hyd. Valve

Brake (SUB FOR AT218035)

1шт.

38

M341850

Bolt

M18 X 50 (SUB FOR AT131557)

4шт.

40

2035236

Plate

(SUB FOR AT203609)

1шт.

42

4364104

Pin

(SUB FOR AT217970)

2шт.

44

2040522

Manifold

(SUB FOR AT219596)

1шт.

46

4234628

Bushing

(SUB FOR AT154704)

1шт.

49

4255238

Plug

(SUB FOR AT154745)

2шт.

50

2040803

Link

(SUB FOR AT219601)

1шт.

51

4262561

Bolt

(SUB FOR AT154768)

1шт.

52

9157588

Piston

Servo (SUB FOR AT250252)

1шт.

55

4260308

Piston Ring

(SUB FOR AT154759)

2шт.

57

4265579

O-Ring

(SUB FOR AT154770)

1шт.

61

9134112

Fitting Plug

(SUB FOR AT203657)

1шт.

61A

4506418

O-Ring

1шт.

63

9134109

Drain Plug

(SUB FOR AT203656)

1шт.

63A

4506408

O-Ring

(SUB FOR TH101490)

1шт.

64

4438768

Cover

(SUB FOR TH4438768)

1шт.

65

19M8168

Screw

M12 X 25

4шт.
