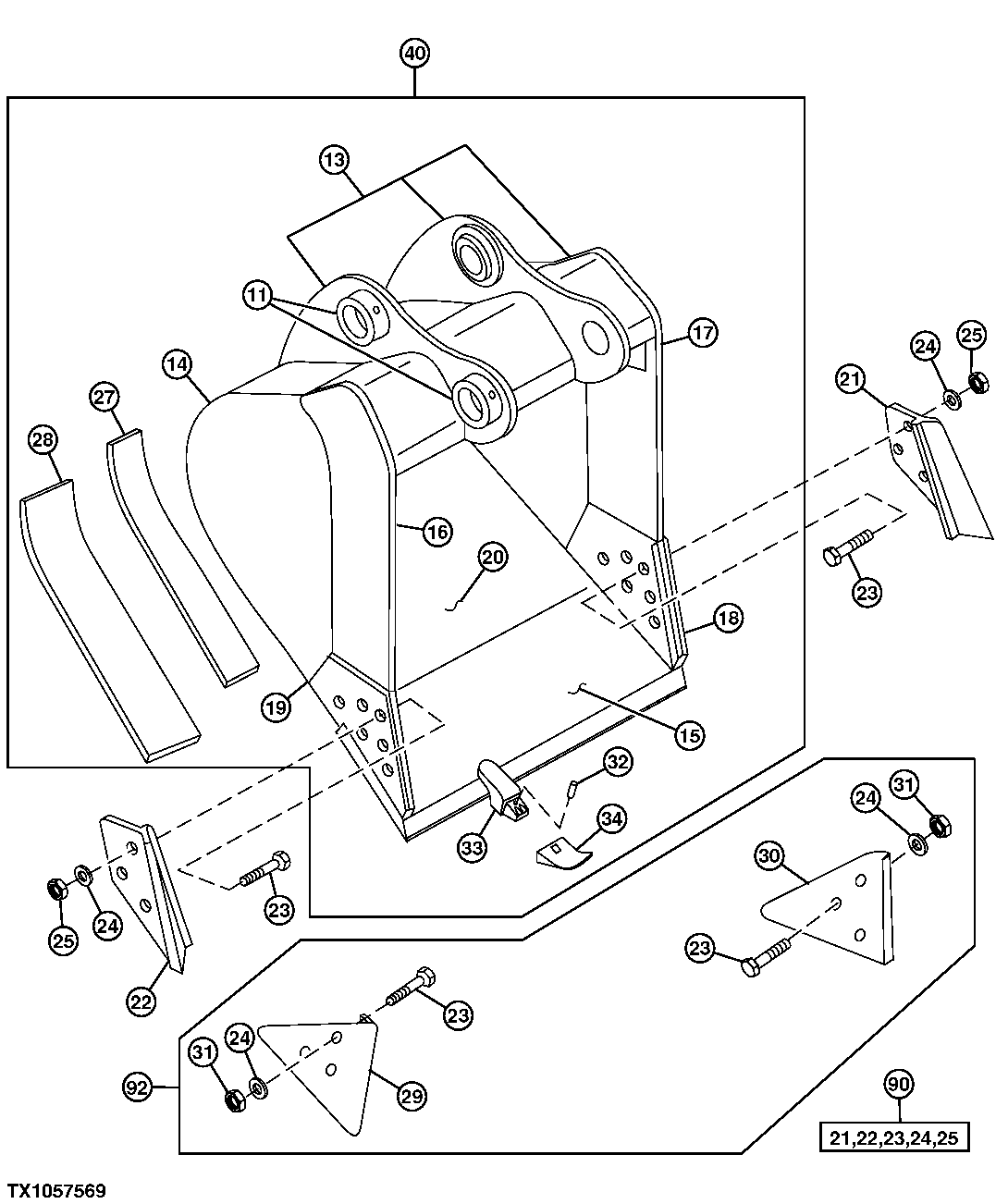

Запчасти John Deere 7C ZTS 504 - HEAVY DUTY HIGH CAPACITY BUCKET 3302 BUCKETS

11

TH102409

Bushing

2шт.

13

C603692

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

306995

Plate

(F) (RH) (LH)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300283

Vertical Cutter

(F) (SIDE CUTTER) (UPPER RH)

1шт.

17

300284

Vertical Cutter

(F) (SIDE CUTTER) (UPPER LH)

1шт.

18

304568

Vertical Cutter

(F) (CUTTER INSERT) (LH)

1шт.

19

304567

Vertical Cutter

(F) (CUTTER INSERT) (RH)

1шт.

20

600171

Moldboard

(F) (UPPER) (20 INCH BUCKET)

1шт.

600172

Moldboard

(F) (UPPER) (36 INCH BUCKET)

1шт.

600173

Moldboard

(F) (UPPER) (42 INCH BUCKET)

1шт.

600166

Moldboard

(F) (LOWER) (30 INCH BUCKET)

1шт.

600167

Moldboard

(F) (LOWER) (36 INCH BUCKET)

1шт.

600168

Moldboard

(F) (LOWER) (42 INCH BUCKET)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300291

Bar

(F) (INNER WEAR)

2шт.

28

304559

Bar

(F) (OUTER WEAR)

2шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

40

Excavator Bucket

(SUB FOR AT163638 ) (SUB AT3391 82)( AT332709 NLA) (24 INCH - .9 2 CUBIC YARD) (REQUIRES 3 TEETH)

1шт.

Excavator Bucket

(SUB FOR AT163639)(WHOLE GOODS) (30 INC H - 1.20 CUBIC YARD) (REQUIRES 4 TEETH)

1шт.

Excavator Bucket

(SUB FOR AT163640 ) (SUB AT3391 89)( AT332711 NLA) (36 INCH - 1. 48 CUBIC YARD) (REQUIRES 4 TEETH )

1шт.

Excavator Bucket

(SUB FOR AT163641 ) (SUB AT3391 91)( AT332712 NLA) (42 INCH - 1. 75 CUBIC YARD) (REQUIRES 5 TEETH )

1шт.

90

End Bit

( AT131085 NLA) (SIDE CUTTER KIT)

1шт.

92

Kit

( AT167876 NLA) (EDGE PROTECTOR KIT)

1шт.
