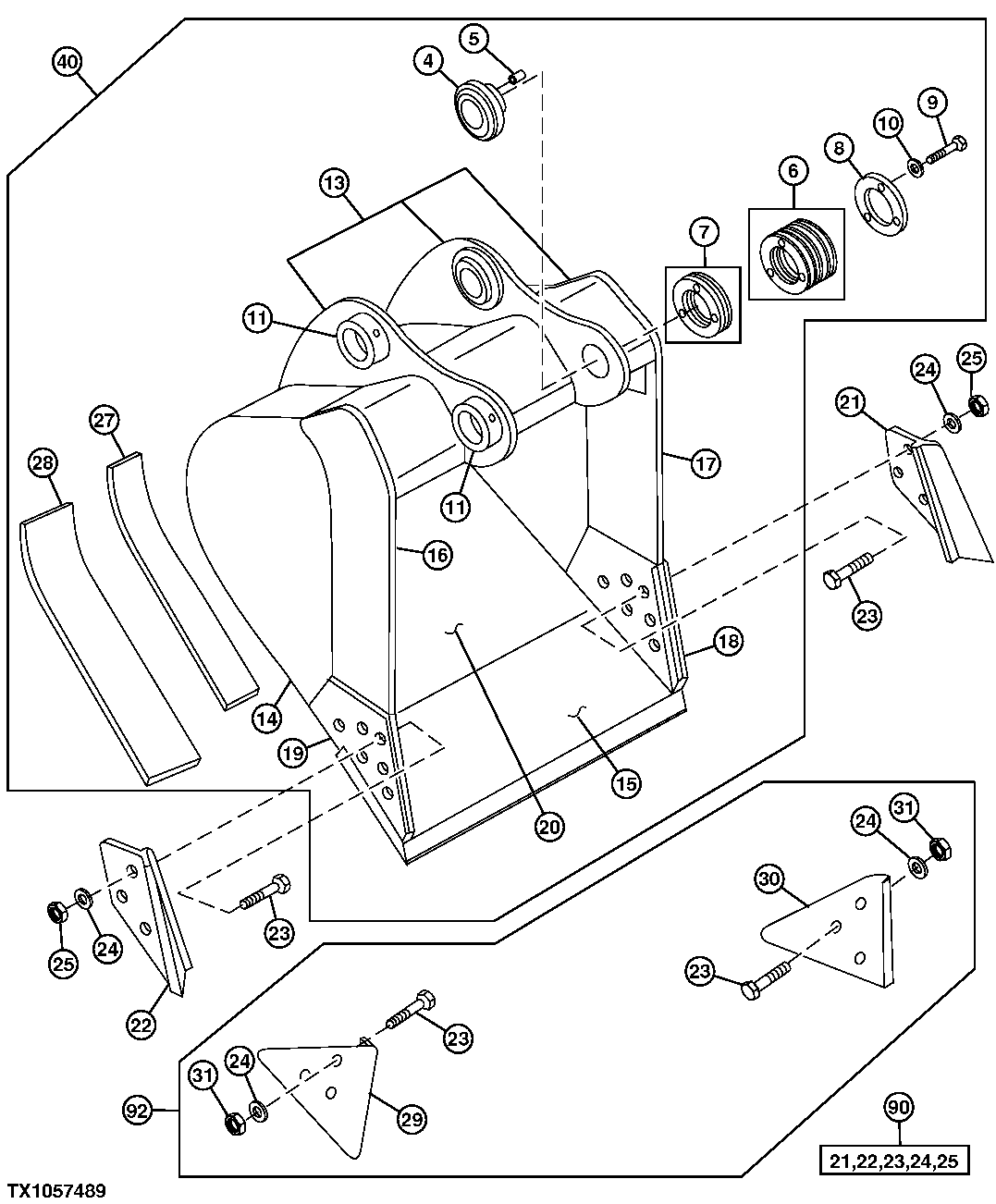

Запчасти John Deere 7C ZTS 503 - HEAVY DUTY HIGH CAPACITY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 BUCKETS
№
Артикул
Название
Примечание
Количество
4
AT131084
Bushing
1шт.
5
R48685
Dowel Pin
1шт.
6
TH102460
Washer
6шт.
7
TH102461
Shim
2шт.
8
Plate
( TH102463 NLA)
1шт.
9
19H2706
Cap Screw
5/8" X 2"
3шт.
10
12H294
Lock Washer
5/8"
3шт.
11
TH102409
Bushing
2шт.
13
C603692
Pivot
(F) (BUCKET EAR BLANK ASSEMBLY)
1шт.
14
306995
Plate
(F) (RH) (LH)
2шт.
15
AT131097
Dura-Max Cutting Edge
(CUT TO LENGTH)
1шт.
16
300283
Vertical Cutter
(F) (SIDE CUTTER) (UPPER RH)
1шт.
17
300284
Vertical Cutter
(F) (SIDE CUTTER) (UPPER LH)
1шт.
18
304568
Vertical Cutter
(F) (CUTTER INSERT) (LH)
1шт.
19
304567
Vertical Cutter
(F) (CUTTER INSERT) (RH)
1шт.
20
600171
Moldboard
(F) (UPPER) (20 INCH BUCKET)
1шт.
600172
Moldboard
(F) (UPPER) (36 INCH BUCKET)
1шт.
600173
Moldboard
(F) (UPPER) (42 INCH BUCKET)
1шт.
600166
Moldboard
(F) (LOWER) (30 INCH BUCKET)
1шт.
600167
Moldboard
(F) (LOWER) (36 INCH BUCKET)
1шт.
600168
Moldboard
(F) (LOWER) (42 INCH BUCKET)
1шт.
21
Cutting Edge
(SUB AT131085)
1шт.
22
Cutting Edge
(SUB AT131085)
1шт.
23
09H1771
Bolt
7/8" X 3"
6шт.
24
12H245
Lock Washer
7/8"
6шт.
25
14H1077
Nut
7/8"
6шт.
27
300291
Bar
(F) (INNER WEAR)
2шт.
28
304559
Bar
(F) (OUTER WEAR)
2шт.
29
Shroud
Wear (SUB AT167876)
1шт.
30
Shroud
Wear (SUB AT167876)
1шт.
31
14H1044
Nut
7/8"
6шт.
40
Excavator Bucket
(SUB AT332709)(WHOLE GOODS) (24 INCH - .92 C UBIC YARD) (REQUIRES 3 TEETH) ( AT163638 NLA)
1шт.
Excavator Bucket
(SUB AT332710)(WHOLE GOODS) ( 30 INCH - 1.20 CUBIC YARD) (RE QUIRES 4 TEETH) ( AT163639 NLA )
1шт.
Excavator Bucket
(SUB AT332711)(WHOLE GOODS) ( 36 INCH - 1.48 CUBIC YARD) (RE QUIRES 4 TEETH) ( AT163640 NLA )
1шт.
Excavator Bucket
(SUB AT332712)(WHOLE GOODS) ( 42 INCH - 1.75 CUBIC YARD) (RE QUIRES 5 TEETH) ( AT163641 NLA )
1шт.
90
AT131085
Kit
( AT131085 NLA) (SIDE CUTTER KIT)
1шт.
92
AT167876
Kit
( AT167876 NLA) (EDGE PROTECTOR KIT)
1шт.
Выбрано товаров: 37
