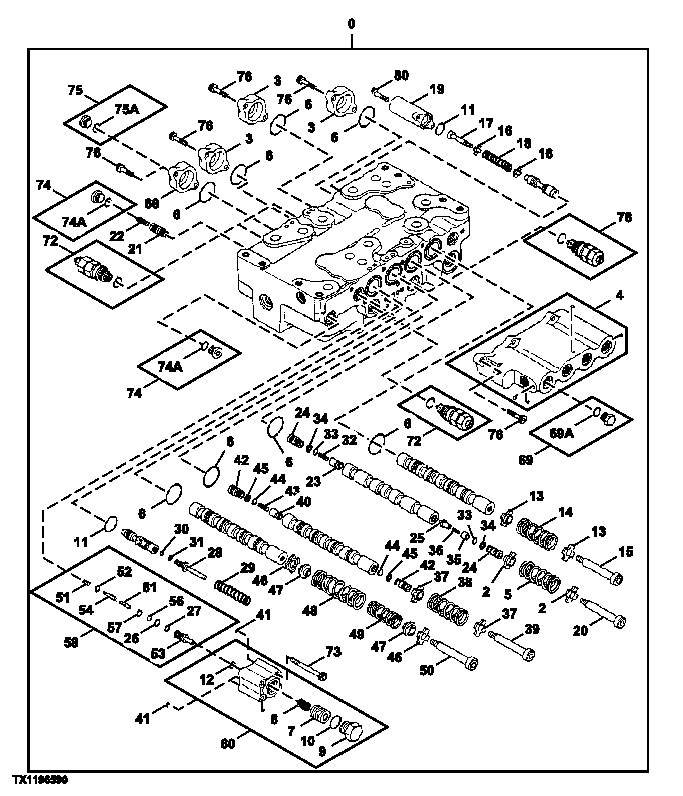

Запчасти John Deere 7C ZTS 489 - Control Valve Components (4-Spool) 2160 VEHICLE HYDRAULICS

0

4398652

Flow Control Hyd. Valve

1шт.

2

0306003

Plate

(SUB FOR TH109968)

2шт.

3

0791801

Cap

(SUB FOR TH0791801)

3шт.

4

4454201

Cap

(SUB FOR TH4454201)

1шт.

5

0309705

Spring

(SUB FOR TH109970)

1шт.

6

A811045R

O-Ring

(SUB FOR T74492 OR A811045)

8шт.

7

Piston

TH0791813 NLA

1шт.

8

Spring

TH0791814 NLA

1шт.

9

Pipe Plug

TH0111803 NLA

1шт.

10

R29936

O-Ring

29.743 X 2.946 mm (1.171" X 0.116")

1шт.

11

CH17886

Packing

(SUB FOR TH111690 ) (SUB FOR 4509182)

2шт.

12

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

1шт.

13

0306003

Plate

(SUB FOR TH109968)

2шт.

14

0309705

Spring

(SUB FOR TH109970)

1шт.

15

0791815

Stop

(SUB FOR TH0791815)

1шт.

16

0332904

Retainer

(SUB FOR TH110305)

2шт.

17

0735807

Spool

(SUB FOR TH0735807)

1шт.

18

0791902

Spring

(SUB FOR TH0791902)

1шт.

19

0791803

Cap

(SUB FOR TH0791803)

1шт.

20

0791815

Stop

(SUB FOR TH0791815)

1шт.

21

0791903

Poppet

(SUB FOR TH0791903)

1шт.

22

0668007

Spring

(SUB FOR AT213693)

1шт.

23

0791905

Poppet

(SUB FOR TH0791905)

1шт.

24

0791906

Pipe Plug

(SUB FOR TH0791906)

2шт.

25

0791907

Poppet

(SUB FOR TH0791907)

1шт.

26

4317636

O-Ring

(SUB FOR TH106280)

1шт.

27

0332924

Back-Up Ring

10 X 14 X 1.250 mm (0.394" X 0.5 51" X 0.049") (SUB FOR TH110325)

1шт.

28

0791904

Spacer

(SUB FOR TH0791904)

1шт.

29

0791914

Spring

(SUB FOR TH0791914)

1шт.

30

4013748

O-Ring

(SUB FOR TH4013748)

1шт.

31

0250914

Back-Up Ring

(SUB FOR AT218048)

1шт.

32

0668007

Spring

(SUB FOR AT213693)

1шт.

33

4317636

O-Ring

(SUB FOR TH106280)

2шт.

34

0332924

Back-Up Ring

10 X 14 X 1.250 mm (0.394" X 0.5 51" X 0.049") (SUB FOR TH110325)

2шт.

35

Sleeve

0791908 NLA, SUB FOR TH0791908

1шт.

36

Spring

0791909 NLA, SUB FOR TH0791909

1шт.

37

0306003

Plate

(SUB FOR TH109968)

2шт.

38

0309705

Spring

(SUB FOR TH109970)

1шт.

39

0791815

Stop

(SUB FOR TH0791815)

1шт.

40

0791905

Poppet

(SUB FOR TH0791905)

1шт.

41

4506406

O-Ring

5.800 X 1.900 mm (0.228" X 0.075") (SUB FOR TH104587)

3шт.

42

0791906

Pipe Plug

(SUB FOR TH0791906)

2шт.

43

0668007

Spring

(SUB FOR AT213693)

1шт.

44

4317636

O-Ring

(SUB FOR TH106280)

2шт.

45

0332924

Back-Up Ring

10 X 14 X 1.250 mm (0.394" X 0.5 51" X 0.049") (SUB FOR TH110325)

2шт.

46

0791910

Valve Seat

(SUB FOR TH0791910)

2шт.

47

0791911

Valve Seat

(SUB FOR TH0791911)

2шт.

48

0791912

Spring

(SUB FOR TH0791912)

1шт.

49

0791913

Spring

(SUB FOR TH0791913)

1шт.

50

0791815

Stop

1шт.

51

0791808

Spring

1шт.

52

0791809

Valve Seat

1шт.

53

0791810

Sleeve

1шт.

54

0791811

Poppet

1шт.

56

CH11560

Packing

1шт.

57

4105067

Back-Up Ring

1шт.

58

0791818

Poppet

1шт.

60

4454198

Flow Control Hyd. Valve

1шт.

68

0791816

Cap

1шт.

69

TH110003

Fitting Plug

1шт.

69A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

72

4372039

Pressure Relief Valve

3шт.

73

0791622

Bolt

4шт.

74

0695007

Fitting Plug

INCLUDES CH11570

2шт.

74A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

75

0689405

Fitting Plug

1шт.

75A

M800650

Packing

1шт.

76

19M8337

Screw

M10 X 30

14шт.

78

4358914

Pressure Relief Valve

1шт.

80

12M7006

Lock Washer

6 mm (SUB FOR 0455002)

2шт.

19M7603

Screw

M6 X 20

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.

81

Spool

NSEP

1шт.
