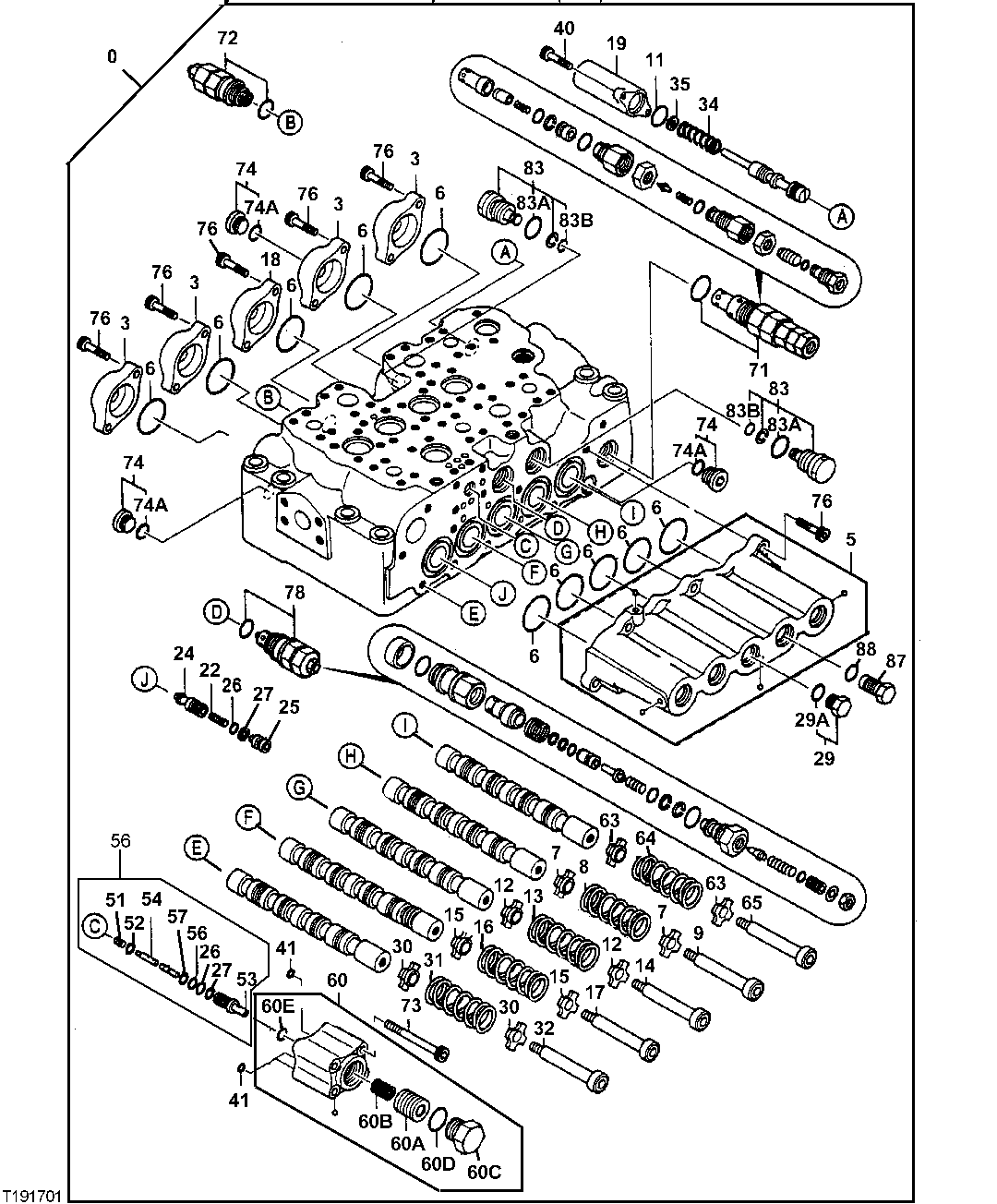

Запчасти John Deere 7C ZTS 488 - CONTROL VALVE (5-SPOOL) 2160 VEHICLE HYDRAULICS

0

4436897

Hyd Actuated Control Valve

Contains All Items On This Page Addit ional Components Listed On Previous an d Following Pages (SUB FOR TH4436897)

1шт.

3

0791801

Cap

(SUB FOR TH0791801)

4шт.

5

4454202

Cap

(SUB FOR TH4454202)

1шт.

6

A811045R

O-Ring

(SUB FOR T74492 OR A811045)

10шт.

7

0306003

Plate

(SUB FOR TH109968)

2шт.

8

0309705

Spring

(SUB FOR TH109970)

1шт.

9

0791815

Stop

(SUB FOR TH0791815)

1шт.

11

CH17886

Packing

(SUB FOR TH111690 ) (SUB FOR 4509182)

1шт.

12

0306003

Plate

(SUB FOR TH109968)

2шт.

13

0309705

Spring

(SUB FOR TH109970)

1шт.

14

0791815

Stop

(SUB FOR TH0791815)

1шт.

15

0306003

Plate

(SUB FOR TH109968)

2шт.

16

0309705

Spring

(SUB FOR TH109970)

1шт.

17

0791815

Stop

(SUB FOR TH0791815)

1шт.

18

0791816

Cap

(SUB FOR TH0791816)

1шт.

19

0791803

Cap

(SUB FOR TH0791803)

1шт.

22

0668007

Spring

(SUB FOR AT213693)

1шт.

24

0791804

Poppet

(SUB FOR TH0791804)

1шт.

25

0791805

Spacer

(SUB FOR TH0791805)

1шт.

26

4317636

O-Ring

(SUB FOR TH106280)

2шт.

27

0332924

Back-Up Ring

10 X 14 X 1.250 mm (0.394" X 0.5 51" X 0.049") (SUB FOR TH110325)

2шт.

29

0332914

Drain Plug

(SUB FOR TH110315)

1шт.

29A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

30

0218607

Pipe Plug

(INCLUDES 4297380, SUB FOR TH109998)

2шт.

4297380

O-Ring

2шт.

31

0309705

Spring

(SUB FOR TH109970)(NOT REQU IRED ON 230CLC APPLICATION)

1шт.

32

0791815

Stop

(SUB FOR TH0791815)(NOT REQ UIRED ON 230CLC APPLICATION)

1шт.

34

0791806

Spring

(SUB FOR TH0791806)

1шт.

35

0791807

Washer

(SUB FOR TH0791807)

1шт.

40

12M7006

Lock Washer

6 mm

2шт.

19M7603

Screw

M6 X 20

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.

41

4506406

O-Ring

5.800 X 1.900 mm (0.228" X 0.075") (SUB FOR TH104587)

3шт.

51

0791808

Spring

(SUB FOR TH0791808)

1шт.

52

0791809

Valve Seat

(SUB FOR TH0791809)

1шт.

53

Sleeve

( 0791810 NLA)

1шт.

54

Poppet

( 0791811 NLA)

1шт.

56

CH11560

Packing

1шт.

57

4105067

Back-Up Ring

(SUB FOR AT130859)

1шт.

58

0791818

Valve

(ASSY)

1шт.

60

4454198

Flow Control Hyd. Valve

1шт.

60A

Piston

( TH0791813 NLA)

1шт.

60B

Spring

( TH0791814 NLA)

1шт.

60C

Pipe Plug

( TH0111803 NLA)

1шт.

60D

R29936

O-Ring

29.743 X 2.946 mm (1.171" X 0.116")

1шт.

60E

CH17167

O-Ring

9.800 X 1.900 mm (0.386" X 0.075")

1шт.

63

0306003

Plate

(SUB FOR TH109968)

2шт.

64

0309705

Spring

(SUB FOR TH109970)

1шт.

65

0791815

Stop

(SUB FOR TH0791815)

1шт.

71

4372038

Pressure Relief Valve

1шт.

72

4372039

Pressure Relief Valve

1шт.

73

0791622

Bolt

(SUB FOR TH0791622)

4шт.

74

0695007

Fitting Plug

(SUB FOR AT250518)

3шт.

74A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

76

0459541

Bolt

(SUB FOR AT200931)

16шт.

78

4358914

Pressure Relief Valve

1шт.

83

0667927

Fitting Plug

(SUB FOR AT213687)

2шт.

83A

U12547

O-Ring

23.470 X 2.946 mm (0.924" X 0.116")

1шт.

83B

0413616

O-Ring

(SUB FOR 4154207)

1шт.

87

0667931

Fitting Plug

(SUB FOR AT213691)

1шт.

88

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.
