Запчасти John Deere 7C ZTS 483 - PILOT PUMP COMPONENTS 2160 VEHICLE HYDRAULICS

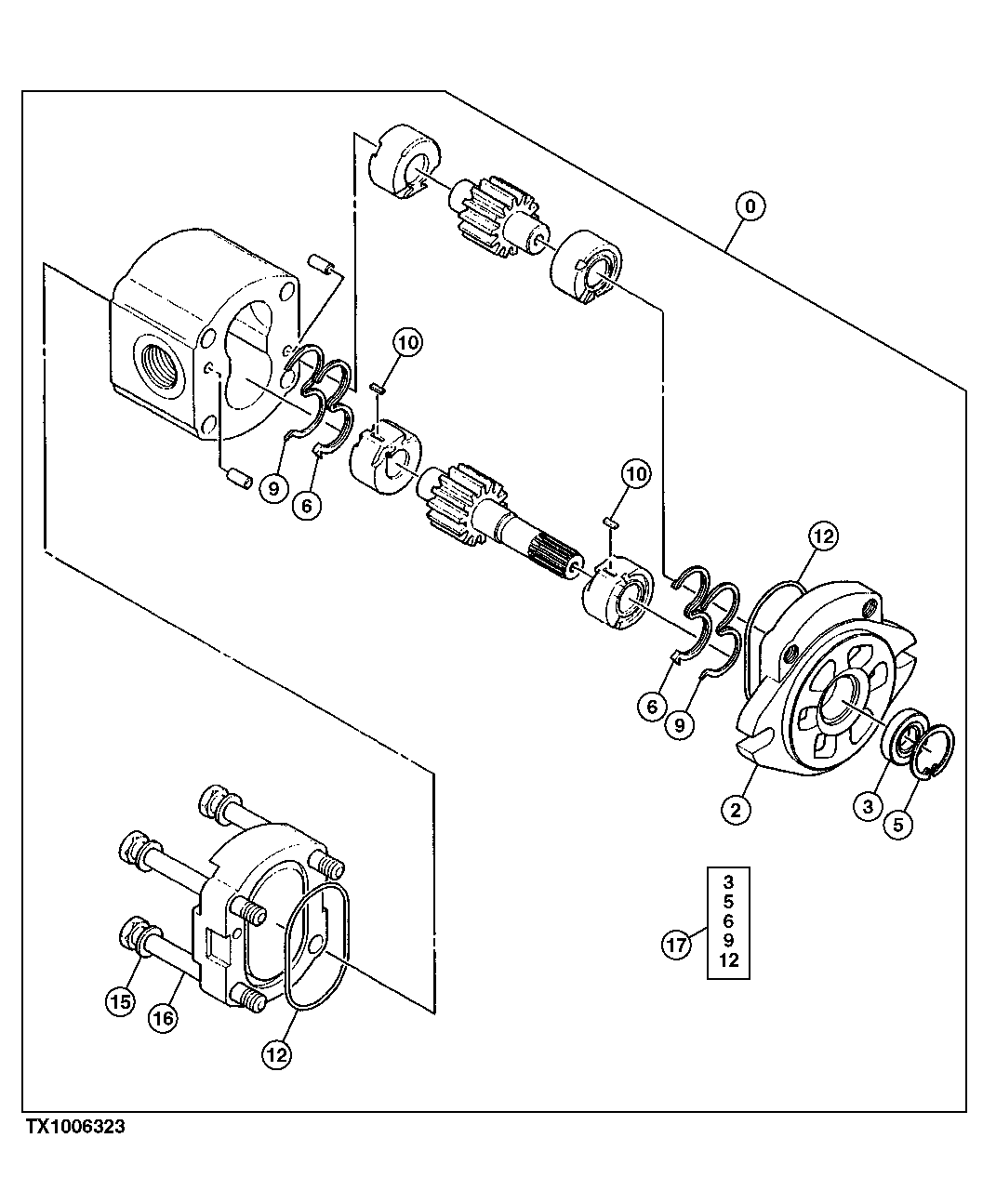

Схема запчастей John Deere 7C ZTS - 483 - PILOT PUMP COMPONENTS 2160 VEHICLE HYDRAULICS

Артикул

Название

Примечание

Количество

0

4276918

Pump

(SUB FOR AT202122)

1шт.

2

Flange

( 2050209 NLA) (SUB FOR AT203653)

1шт.

3

0408202

Seal

(K) (SUB FOR AT153880)

1шт.

5

Snap Ring

(K) ( AT153833 NOT AVAILABL E AS INDIVIDUAL SERVICE PART)

1шт.

6

Seal

(K) ( AT153881 NOT AVAILABL E AS INDIVUDAL SERVICE PART)

2шт.

9

Filter Element

(K) ( AT153834 NOT AVAILABL E AS INDIVUDAL SERVICE PART)

2шт.

10

4484119

Key

(SUB FOR AT153838)

2шт.

12

4488720

O-Ring

(K) (SUB FOR 4206163, TH1 09922, 0354608, TH0354608)

2шт.

15

AT153837

Washer

10.400 X 18 X 2 mm (0. 409" X 0.709" X 0.079")

4шт.

16

19M7668

Cap Screw

M10 X 100 (SUB FOR AT15 3882 ) (SUB FOR 0408204)

4шт.

17

0408207

Seal Kit

Includes Parts Marked (K ) Seat (SUB FOR AT153885)

1шт.
