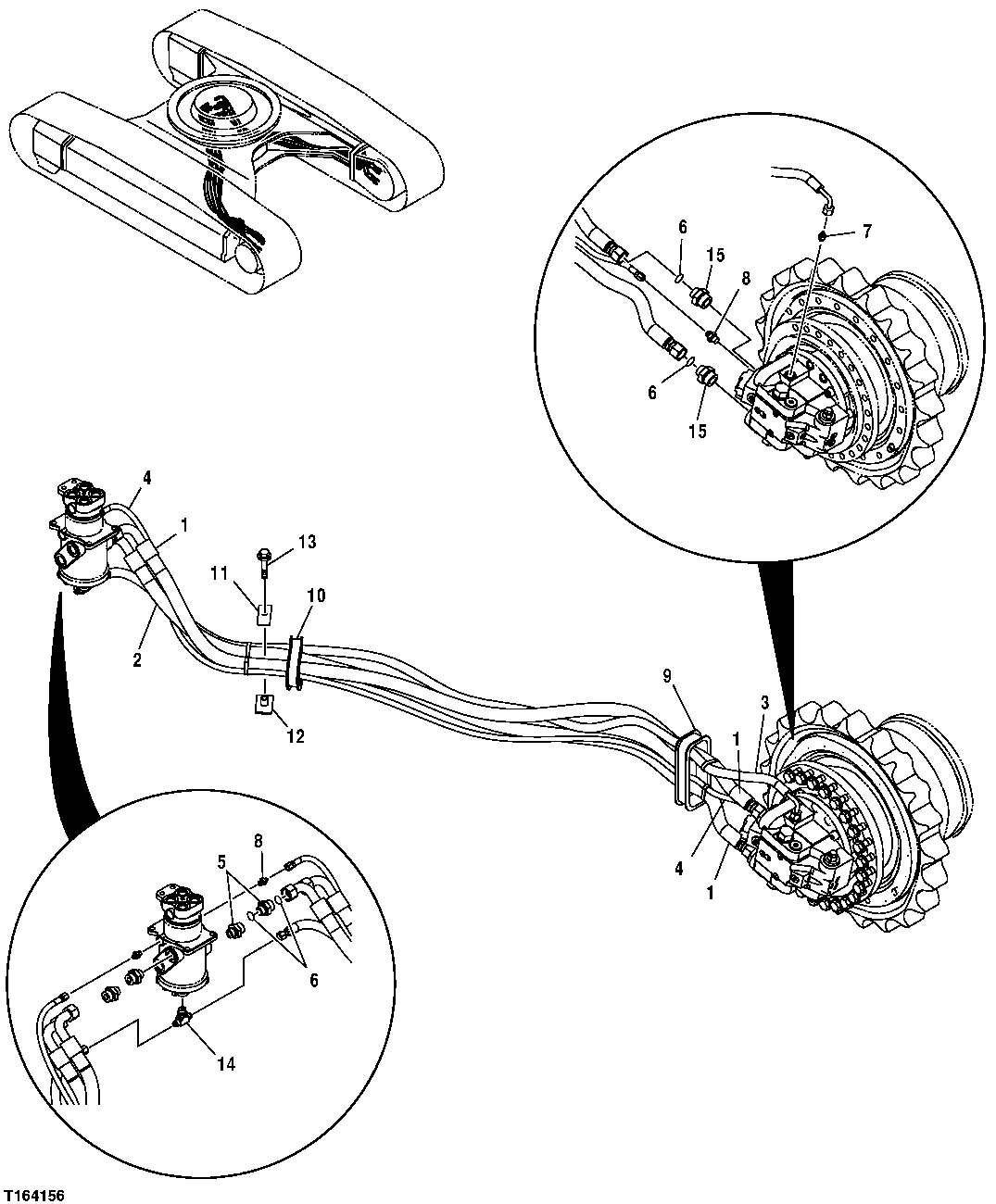

Запчасти John Deere 7C ZTS 26 - ROTARY MANIFOLD HOSES TO PROPEL MOTOR (STANDARD DRAWBAR) 0260 HYDRAULIC SYSTEM

1

FFSB102061

Hydraulic Hose

(CUT TO LENGTH) 2578MM

2шт.

2

FFSB111640

Hydraulic Hose

2шт.

3

FFSB102060

Hydraulic Hose

2680 mm, (CTL)

2шт.

4

FFSB102059

Hydraulic Hose

2680 mm, (CTL)

2шт.

5

4189601

Adapter Fitting

(SUB FOR FFSB106414)

4шт.

6

T78313

O-Ring

(SUB FOR FFSB106430)

8шт.

7

4210361

Adapter Fitting

(SUB FOR FFSB106418)

2шт.

8

X4-4F4OMXS

Adapter Fitting

(SUB FOR FFSB103515)

4шт.

9

4380020

Grommet

(SUB FOR FFSB106420)

2шт.

10

4396013

Bushing

(SUB FOR FFSB106429)

2шт.

11

4202103

Clamp

(SUB FOR FFSB106422)

2шт.

12

9736782

Clamp

(SUB FOR FFSB106423)

2шт.

13

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB106424)

2шт.

12H301

Lock Washer

1/2" (SUB FOR FFSB106424)

2шт.

14

4221224

Tee Fitting

(SUB FOR AT318018 OR FFSB106417)

1шт.

15

4272493

Adapter Fitting

(SUB FOR FFSB106415)

4шт.

4189535

Adapter Fitting

(SUB FOR FFSB109430)

4шт.
