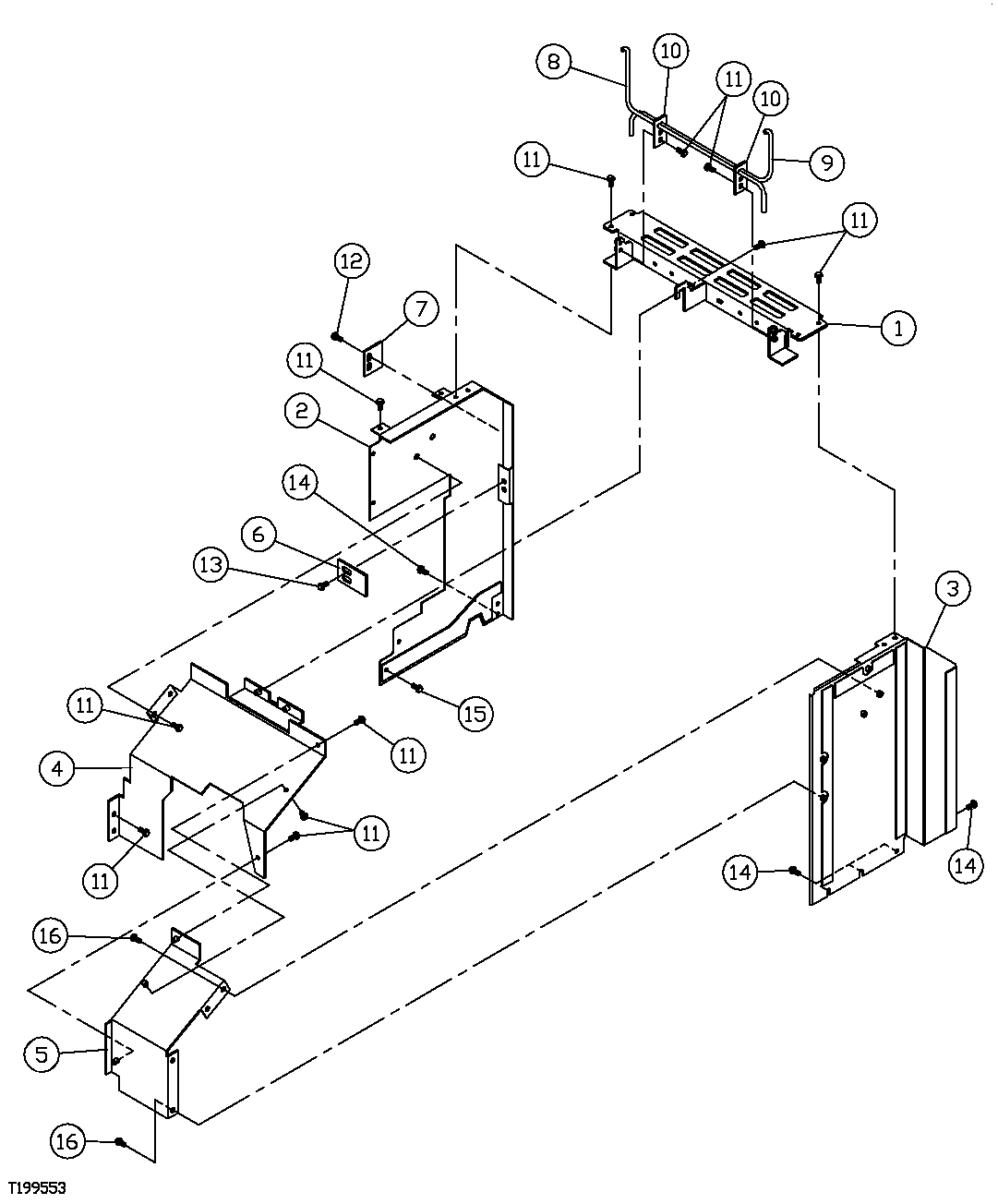

Запчасти John Deere 7C ZTS 463 - HYDRAULIC PUMP COMPARTMENT PANELS 1910 HOOD, SIDE PANELS, SHIELDS, AND ACCESS DOORS

1

DH800035

Cover

1шт.

2

5008579

Panel

(SUB FOR FFSB111181)

1шт.

3

5008580

Panel

(SUB FOR FFSB111180)

1шт.

4

DH700025

Cover

(SUB FOR FFSB111615)

1шт.

5

DH800032

Cover

(SUB FOR FFSB111616)

1шт.

6

DH400400

Plug

( FFSB110585 NOT USED FOR THIS APPLICATION)

1шт.

7

DH400397

Bracket

(SUB FOR FFSB110584)

1шт.

8

DH300075

Bracket

(SUB FOR FFSB110649)

1шт.

9

DH300076

Bracket

(SUB FOR FFSB110650)

1шт.

10

DH400498

Bracket

(SUB FOR FFSB110651 ) (SUB FOR AT155284) ( DH400498 NOT USED FOR THIS APPLICATION)

2шт.

11

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133)

17шт.

12M7066

Lock Washer

10 mm

17шт.

24M7028

Washer

10.500 X 20 X 2 mm

17шт.

12

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB107462)

2шт.

13

FFSB107219

Bolt

2шт.

14

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB10 9179, AT200803, AT155588)

9шт.

12M7066

Lock Washer

10 mm

9шт.

24M7346

Washer

11 X 20 X 2 mm

9шт.

15

19M7658

Cap Screw

M10 X 50 (SUB FOR FFSB110652)

1шт.

12H293

Lock Washer

7/16"

1шт.

24M7321

Washer

10 X 16 X 2 mm

1шт.

16

19M7402

Cap Screw

M10 X 25 (SUB FOR J021025)

4шт.
