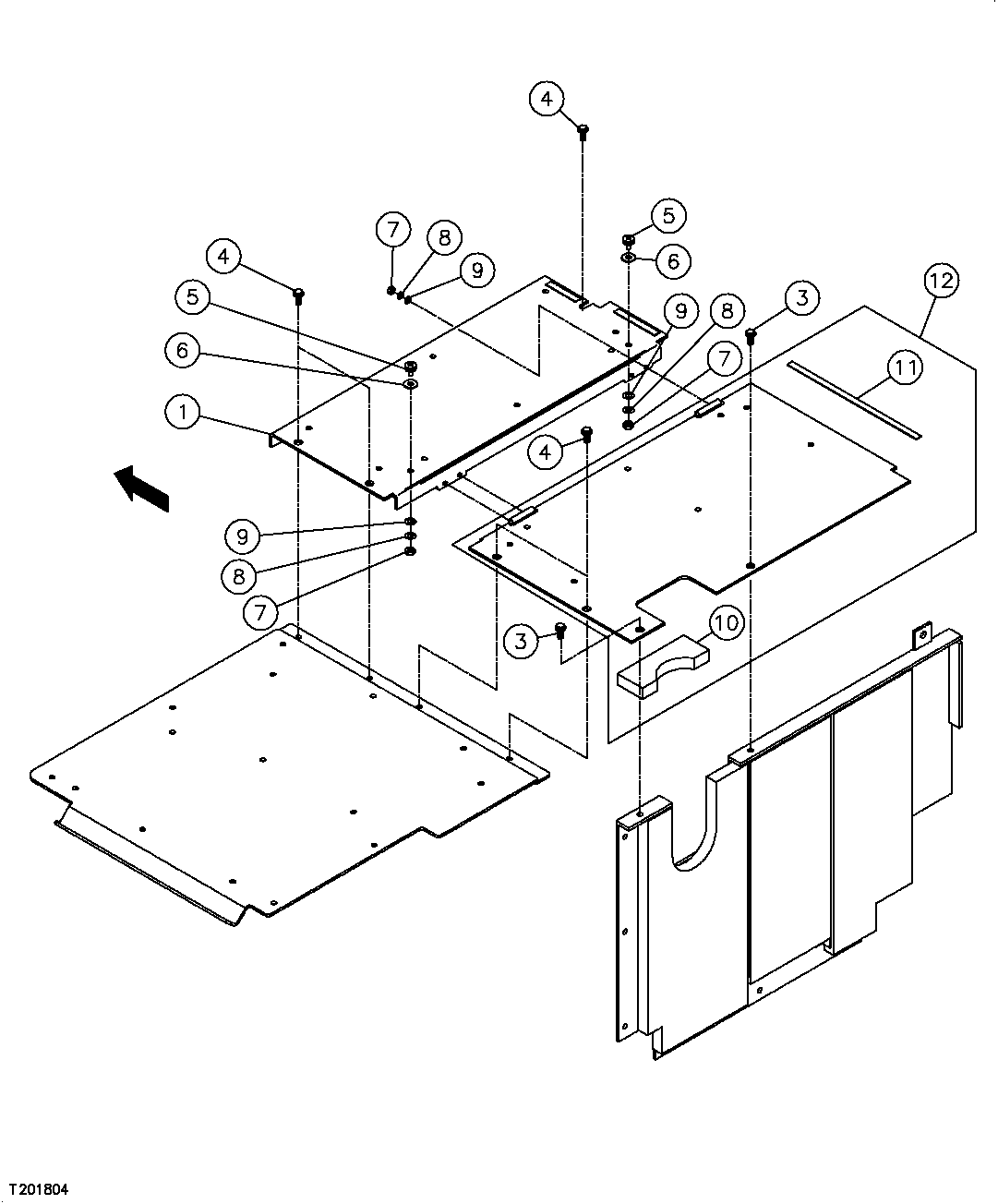

Запчасти John Deere 7C ZTS 461 - MIDDLE DECK COVERS 1910 HOOD, SIDE PANELS, SHIELDS, AND ACCESS DOORS

1

DH800091J

Cover

Left Front Deck Non -Skid Plate Rive t To Panels (SUB FOR FFSB111147 ( 808 8774 NOT USED FOR THIS APPLICATION))

1шт.

3

FFSB111917

Rivet

Cap Screw No Longer Used For Thi s Application (SUB FOR AT153806 ) (ALSO ORDER 19M7662 AND 24M7346)

16шт.

4

Cap Screw

(SUB FOR FFSB109179, AT200803, AT155588)

5шт.

5

4294508

Bumper

(SUB FOR FFSB106796)

2шт.

6

24M7101

Washer

(SUB FOR FFSB111358)

2шт.

7

14M7274

Nut

M10 (SUB FOR FFSB107411)

6шт.

8

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

6шт.

9

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

6шт.

10

4424566

Isolator

1шт.

11

4380814

Isolator

1шт.

12

DH800092

Cover

Left Front Deck Non -Skid Plate Rivet To Pan els ( 8089624 NOT USED FOR THIS APPLICATION)

1шт.
