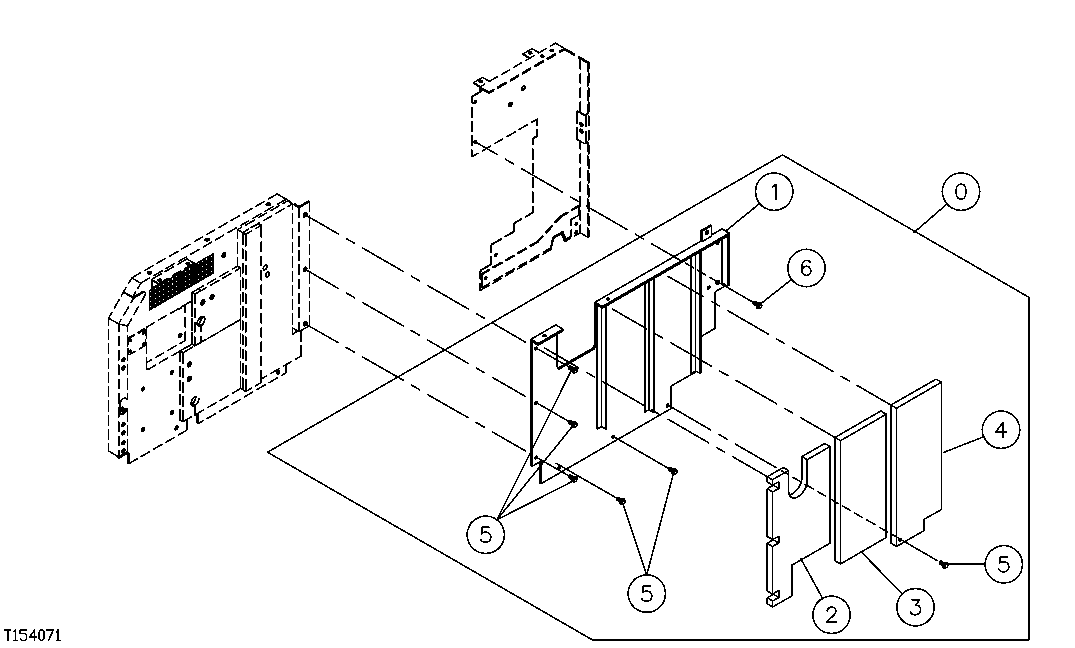

Запчасти John Deere 7C ZTS 457 - ENGINE FRONT FIREWALL PANEL 1910 HOOD, SIDE PANELS, SHIELDS, AND ACCESS DOORS

0

7043235

Panel

(SUB FOR FFSB111621)

1шт.

1

5008603

Panel

(SUB FOR FFSB111623)

1шт.

2

DH400302

Isolator

(SUB FOR FFSB111624)

1шт.

3

DH400303

Isolator

(SUB FOR FFSB111625)

1шт.

4

DH400307

Isolator

(SUB FOR FFSB111626)

1шт.

5

19M7550

Cap Screw

M10 X 35 (SUB FOR FFSB10 9179, AT200803, AT155588)

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7346

Washer

11 X 20 X 2 mm

6шт.

6

19M7358

Cap Screw

M10 X 40 (SUB FOR FFSB110 567, AT200009 OR J031040)

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.
