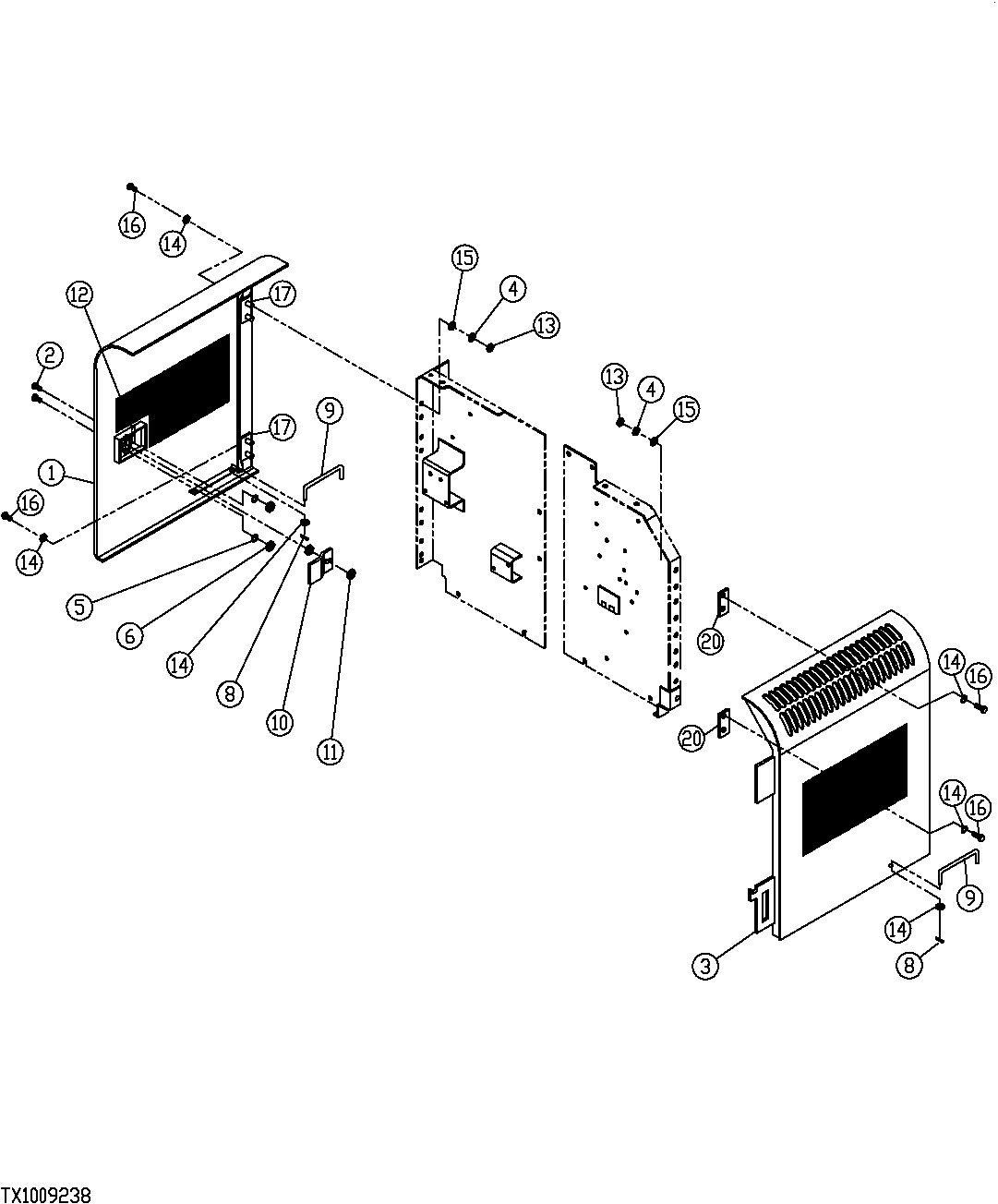

Запчасти John Deere 7C ZTS 448 - RADIATOR AND HYDRAULIC PUMP COMPARTMENT ACCESS DOORS 1910 HOOD, SIDE PANELS, SHIELDS, AND ACCESS DOORS

1

FFSB111051

Guard

1шт.

2

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB106133)

2шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

3

FFSB111061

Guard

1шт.

4

12M7067

Lock Washer

12 mm (SUB FOR FFSB107911)( FFSB10 7961 NOT USED FOR THIS APPLICATION)

8шт.

5

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

2шт.

6

14M7274

Nut

M10 (SUB FOR FFSB107411)

2шт.

8

11M7017

Cotter Pin

3.200 X 32 mm (SUB FOR FFSB108266)( FF SB110014 NOT USED FOR THIS APPLICATION)

2шт.

9

FFSB110011

Latch

2шт.

10

FFSB111739

Cam

(SUB FOR FFSB106271)

1шт.

11

14M7141

Nut

M14 (SUB FOR FFSB108115)

2шт.

12

FFSB106270

Latch

1шт.

13

14M7275

Nut

M12 (SUB FOR FFSB107245)

8шт.

14

24M7047

Washer

13 X 24 X 2.500 mm (SUB FOR FFSB105797)

10шт.

15

24H1226

Washer

1/2" X 1-1/4" X 0.083" (SUB FOR FFSB108137)

8шт.

16

19M7403

Cap Screw

M12 X 35 (SUB FOR FFSB109213)

8шт.

17

FFSB115260

Hinge

2шт.

20

FFSB115260

Hinge

2шт.
