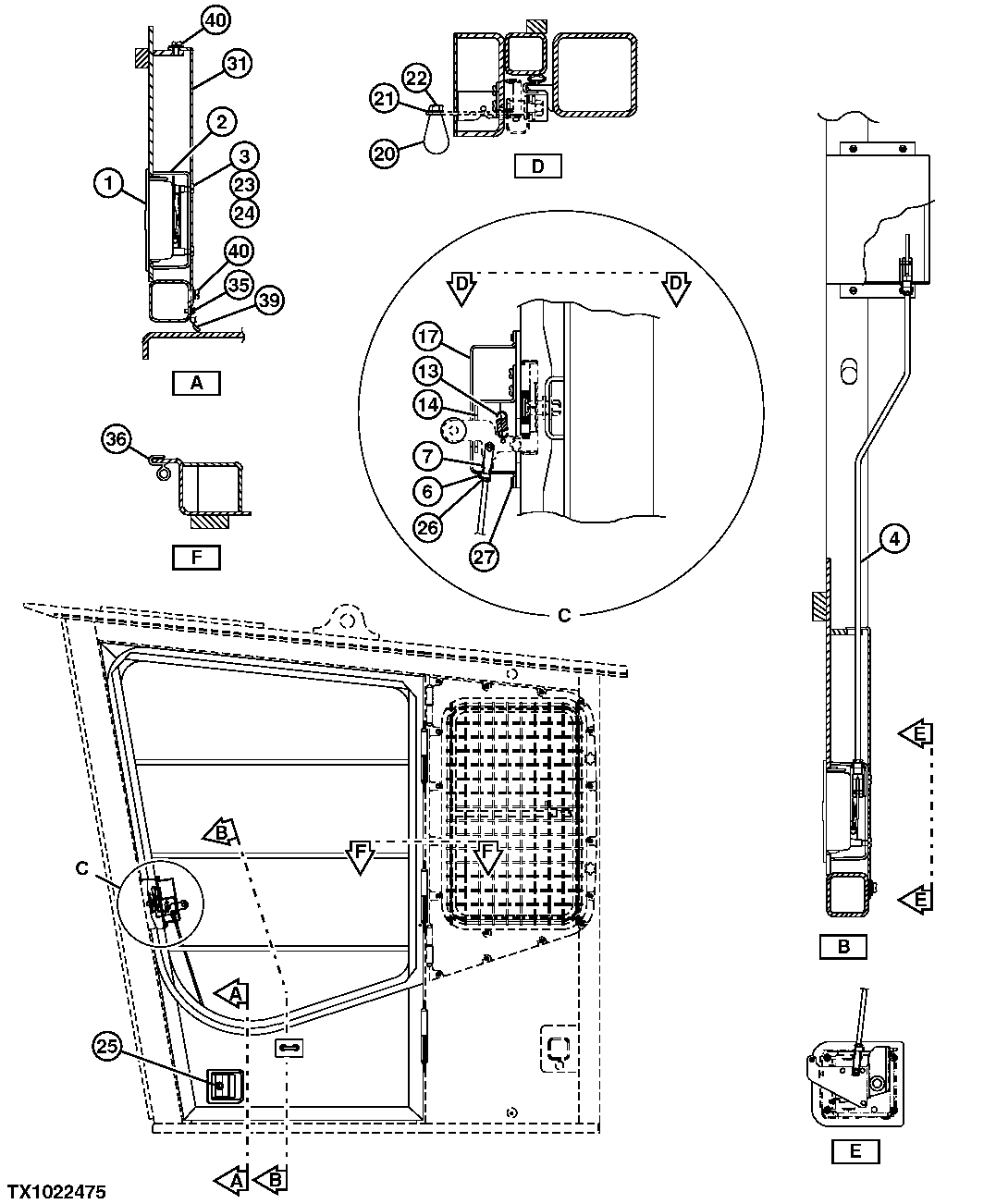

Запчасти John Deere 7C ZTS 380 - SIDE ENTRY CAB DOOR LATCH (S.N. 200255- ) 1810B SIDE ENTRY CAB

1

AT140572

Lock

(SUB FOR FFSB102701)

1шт.

2

T131059

Bracket

(SUB FOR FFSB102706)

2шт.

3

21H1455

Screw

0.190" X 3/4" (SUB FOR FFSB107829)

4шт.

4

FFSB102970

Rod

1шт.

6

T131235

Pin

2шт.

7

T150163

Yoke

2шт.

13

T150146

Extension Spring

(SUB FOR FFSB102705)

1шт.

14

T149220

Bracket

(SUB FOR FFSB102707)

1шт.

17

FFSB102967

Cover

1шт.

20

M80721

Knob

(SUB FOR FFSB107932)

1шт.

21

12H304

Lock Washer

3/8" (SUB FOR FFSB107931)

1шт.

22

19H1648

Cap Screw

3/8" X 3/4" (SUB FOR FFSB107930)

1шт.

23

24H1283

Washer

7/32" X 1/2" X 0.049" (SUB FOR FFSB107827)

4шт.

24

12H246

Lock Washer

0.190" (SUB FOR FFSB107825)

4шт.

25

AT195302

Key

(SUB FOR FFSB107833)

1шт.

26

14H786

Nut

1/4" (SUB FOR FFSB109290)

2шт.

27

J680410

Screw With Washer

4шт.

31

FF100400

Cover

1шт.

35

J680410

Screw With Washer

4шт.

36

Sealing Trim

(MF FFSB107987, CTL 460 0MM) ( FFSB107983 NLA)

1шт.

39

FFSB113480

Weatherstrip

1шт.

40

Screw With Washer

( J460620 NLA)

8шт.

21M7267

Screw

M6 X 20

8шт.

12M7006

Lock Washer

6 mm

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.
