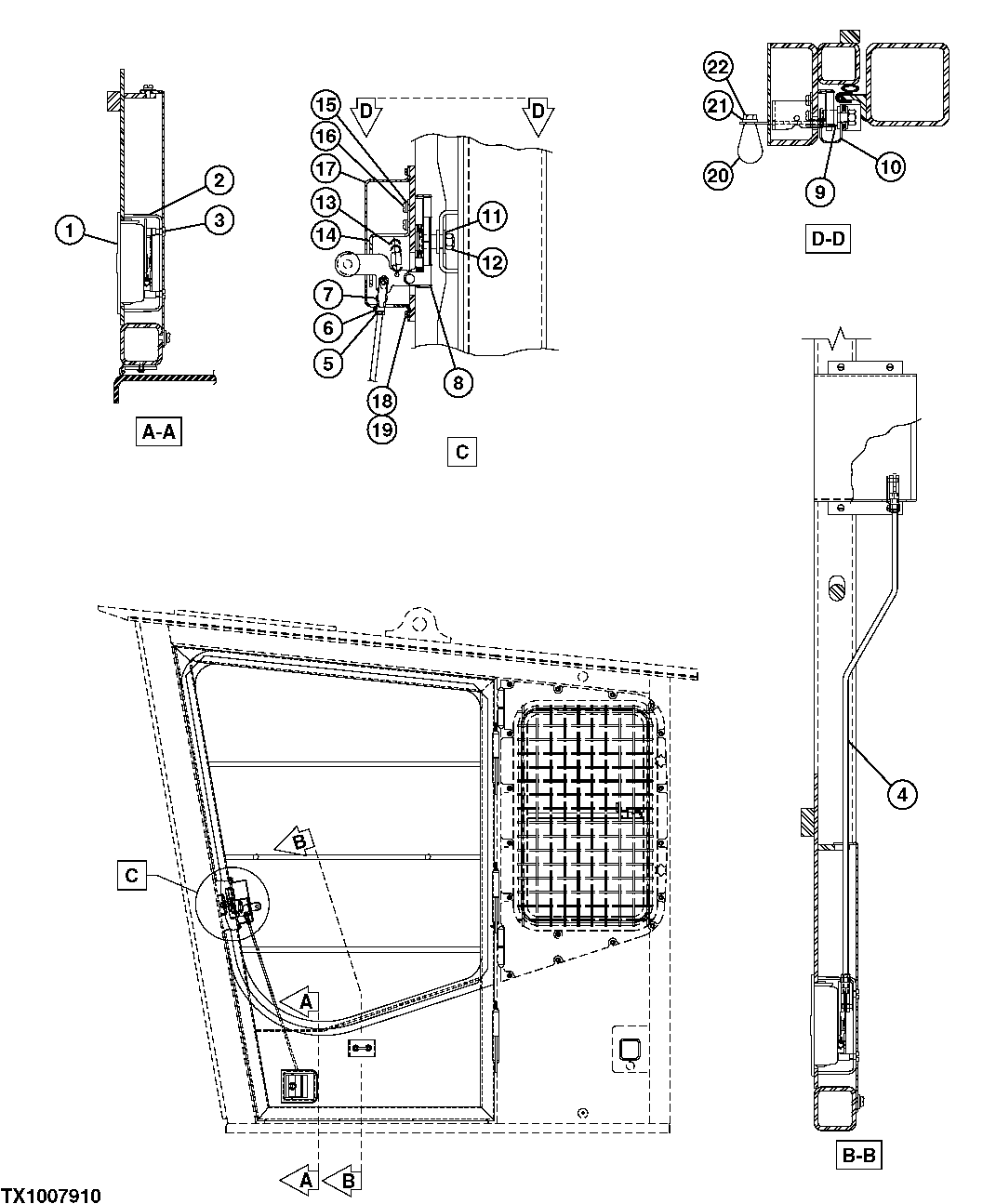

Запчасти John Deere 7C ZTS 378 - SIDE ENTRY CAB DOOR LATCH COMPONENTS 1810B SIDE ENTRY CAB

1

AT140572

Lock

(ALSO ORDER AT195302 ) (SUB FOR FFSB102701)

1шт.

AT195302

Key

(SUB FOR FFSB107833)

1шт.

2

T131059

Bracket

(SUB FOR FFSB102706)

2шт.

3

D14233

Screw

4.826 X 19.050 mm (0.190" X 3/4") (SUB FOR FFSB107918)

4шт.

24H1283

Washer

7/32" X 1/2" X 0.049"

4шт.

12H246

Lock Washer

0.190"

4шт.

4

FFSB102970

Rod

1шт.

5

14H850

Nut

1/4" (SUB FOR FFSB107939)

2шт.

6

FFSB107938

Pin Fastener

2шт.

7

T150163

Yoke

(SUB FOR FFSB107937)

2шт.

8

AT165224

Latch

(SUB FOR FFSB102704)

1шт.

9

AR91896

Striker

(SUB FOR FFSB102702)

1шт.

10

T135583

Guard

(SUB FOR FFSB102708)

1шт.

11

24H1325

Washer

15/32" X 59/64" X 0.06 5" (SUB FOR FFSB107936)

1шт.

12

14H813

Nut

7/16" (SUB FOR FFSB107935)

1шт.

13

T150146

Extension Spring

(SUB FOR FFSB102705)

1шт.

14

T149220

Bracket

(SUB FOR FFSB102707)

1шт.

15

12H302

Lock Washer

1/4" (SUB FOR FFSB107933)

4шт.

16

21H1014

Screw

1/4" X 1" (SUB FOR FFSB107934)

4шт.

17

FFSB102967

Cover

1шт.

18

12M7130

Lock Washer

4.100 mm (SUB FOR FFSB107940)

4шт.

19

FFSB107941

Screw

4шт.

20

M80721

Knob

(SUB FOR FFSB107932)

1шт.

21

12H304

Lock Washer

3/8" (SUB FOR FFSB107931)

1шт.

22

19H1936

Cap Screw

3/8" X 3/4" (SUB FOR FFSB107930)

1шт.
