358 - POWERED CONDENSER COMPONENTS

Запчасти John Deere 7C ZTS 358 - POWERED CONDENSER COMPONENTS 1830 HEATING & AIR CONDITIONING

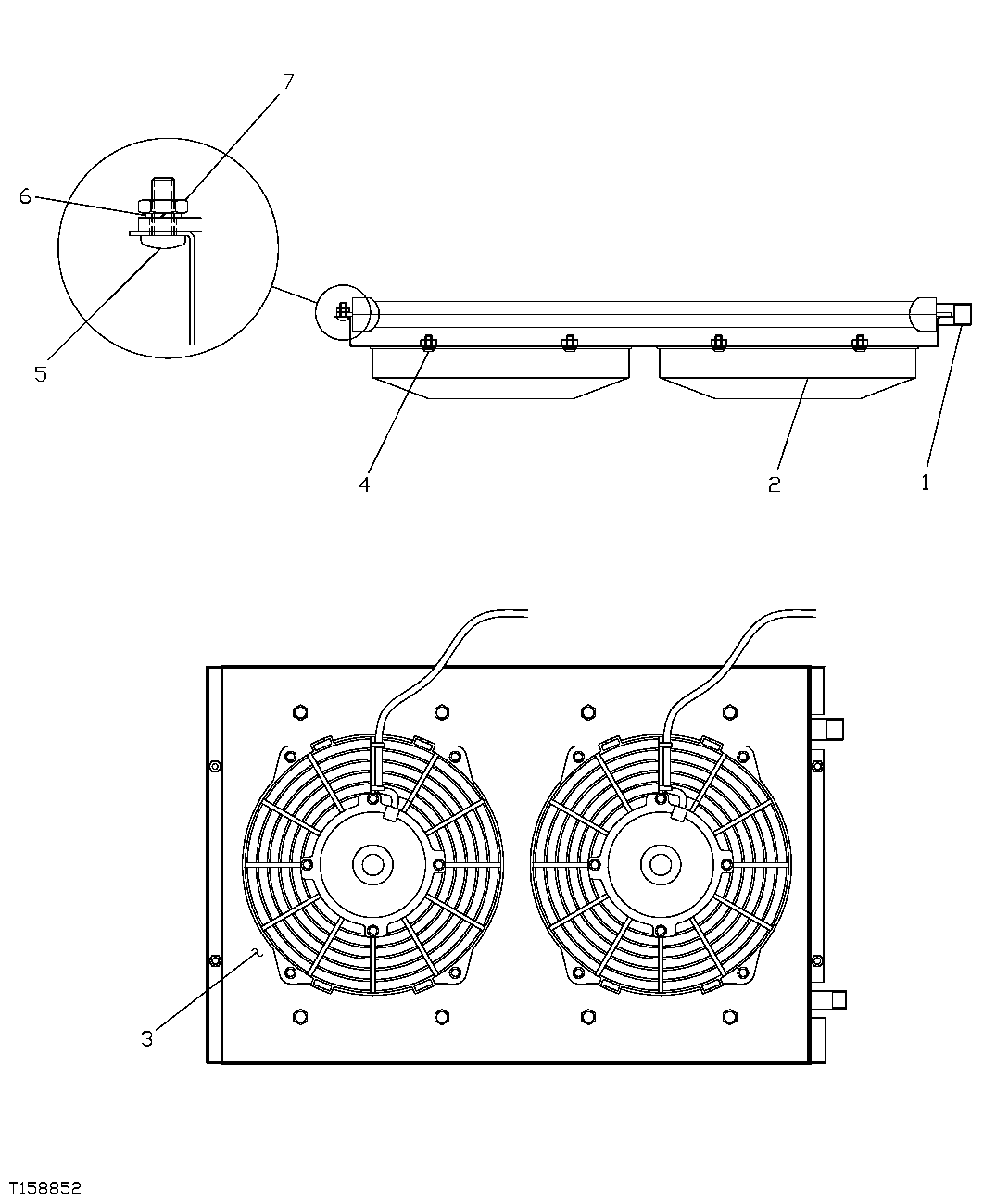

Схема запчастей John Deere 7C ZTS - 358 - POWERED CONDENSER COMPONENTS 1830 HEATING & AIR CONDITIONING
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

DH400538

Vapor Condenser

(SUB FOR FFSB110319)

1шт.

2

FFSB112179

Blower Motor

2шт.

3

FFSB112180

Housing

1шт.

4

21H1142

Screw

1/4" X 1/2" (SUB FOR FFSB111912)

16шт.

5

21H1275

Screw

0.190" X 1/2" (SUB FOR FFSB109825)

4шт.

6

12H246

Lock Washer

0.190" (SUB FOR FFSB107825)

4шт.

7

14H778

Nut

0.190" (SUB FOR FFSB107826)

4шт.
