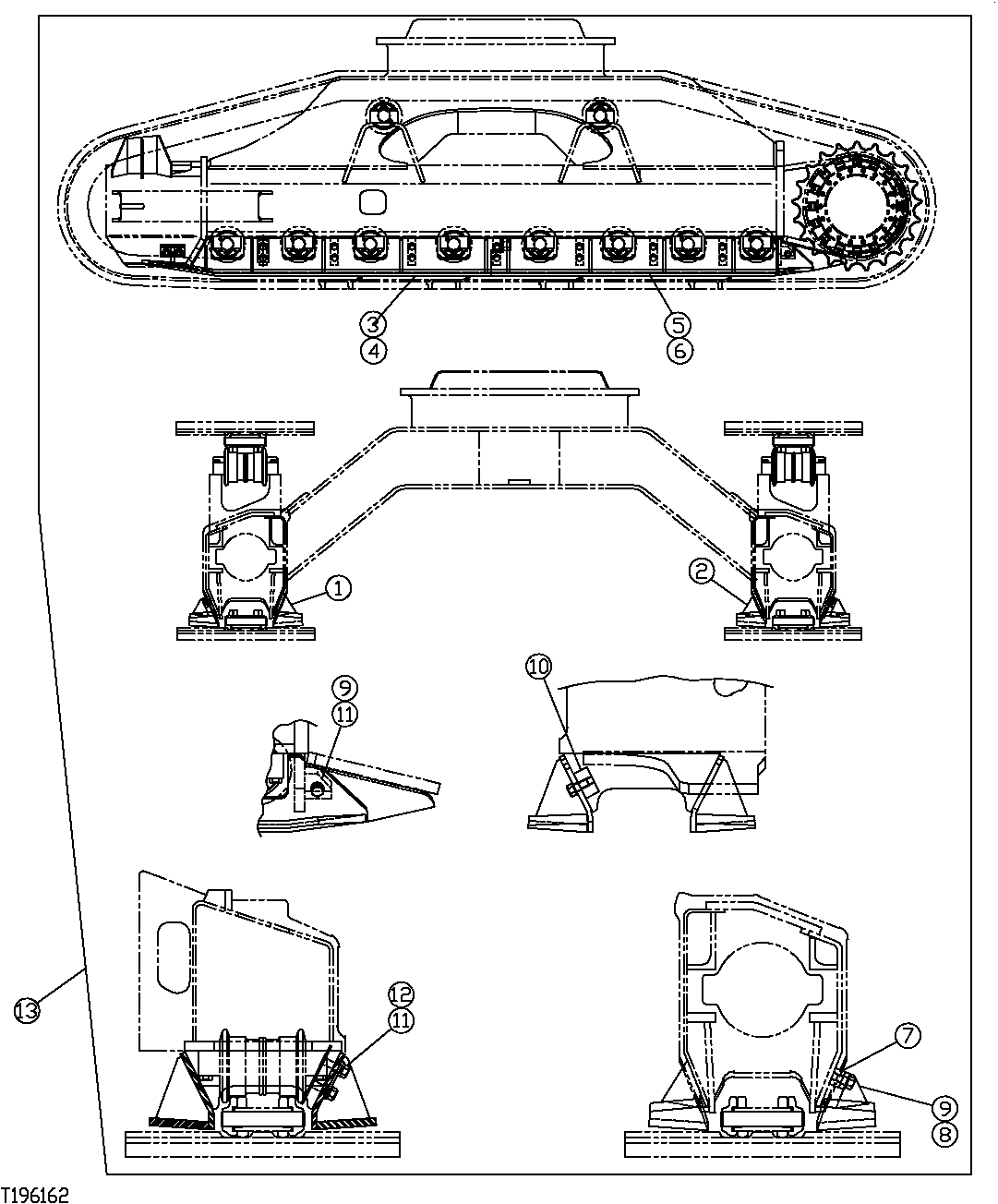

Запчасти John Deere 7C ZTS 16 - ROCKGUARD (STANDARD DRAWBAR) (SERIAL NO. -200083) 0138 ROCK GUARDS AND TRACK GUIDES

1

Guard

(INNER - RIGHT) ( FFSB111243 NLA)

1шт.

2

Guard

( FFSB111246 NLA) Inner Left

1шт.

3

FFSB111249

Guard

Bolt On Outer - Left Front

1шт.

4

FFSB111252

Guard

Bolt On Outer - Right Front

1шт.

5

FFSB111255

Guard

Bolt On Outer - Left Rear

1шт.

6

FFSB111258

Guard

Bolt On Outer - Right Rear

1шт.

7

FFSB111241

Manifold

Idler End

2шт.

8

T116332

Bolt

M18 X 40 (SUB FOR FFSB108707)

4шт.

9

24M7318

Washer

19 X 34 X 3 mm (SUB FOR FFSB108729)

6шт.

10

FFSB111240

Manifold

Drive End

2шт.

11

19M8232

Cap Screw

M18 X 50 (SUB FOR FFSB113421)

34шт.

12

FFSB113420

Washer

32шт.

13

Guard

Rockguard ( FFSB111242 NLA)(ORDER FFSB113516)

1шт.
