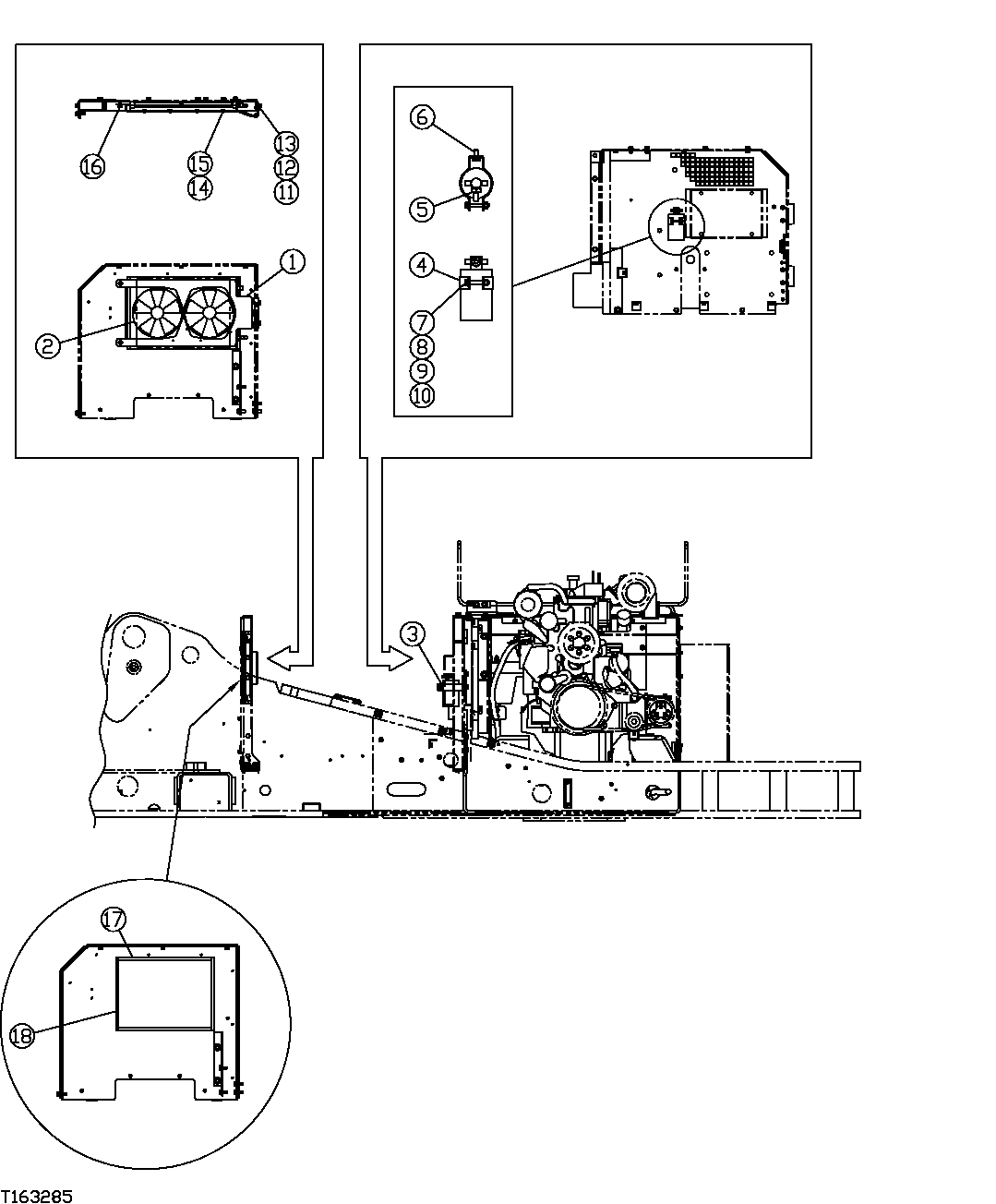

Запчасти John Deere 7C ZTS 356 - A/C CONDENSER AND RECEIVER-DRYER (WITH POWER CONDENSER) 1830 HEATING & AIR CONDITIONING

1

FFSB112018

Vapor Condenser

1шт.

2

FF200866

Compressor

SUB FOR DH400539 AND FFSB110320

1шт.

3

DH700088

Bracket

SUB FOR FFSB110998

1шт.

4

4346770

Pulley

1шт.

5

FF202428

Bracket

SUB FOR FFSB111906

1шт.

6

19M8081

Cap Screw

M10 X 80 SUB FOR J021080, U SE WITH 12M7066 AND 24M7028

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

7

19M7382

Cap Screw

M10 X 40

4шт.

8

14M7274

Nut

M10 SUB FOR J950010

6шт.

9

74R2556

Receiver-Dryer

NLA See Red Dot for Service Part

1шт.

10

DH300123

Bracket

SUB FOR FFSB110328

1шт.

11

DH400537

V-Belt

SUB FOR FFSB110997

1шт.

12

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

13

19M7489

Cap Screw

M16 X 45

2шт.

14

A590916

Lock Washer

2шт.

15

24M7053

Washer

17 X 30 X 3 mm

2шт.

16

19M8713

Screw

M6 X 45

1шт.

17

Pressure Switch

( AT322233 NLA) AT322233 NLA

1шт.

DH400736

Pressure Switch

SUB FOR FFSB110572

1шт.

18

DH400536

Shim Kit

SUB FOR FFSB111325

2шт.

19

A590910

Washer

6шт.

20

12M7006

Lock Washer

6 mm

1шт.

21

J250006

Washer

2шт.

22

14M7303

Flange Nut

M6

1шт.

23

19M7402

Cap Screw

M10 X 25

2шт.

24

21H1142

Screw

1/4" X 1/2"

8шт.

25

12H302

Lock Washer

1/4"

8шт.

26

J011020

Cap Screw

2шт.

27

Seal

Bulk Roll SUB FFSB111979

2шт.

28

FFSB111981

Seal

2шт.

29

J021020

Bolt

1шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.
