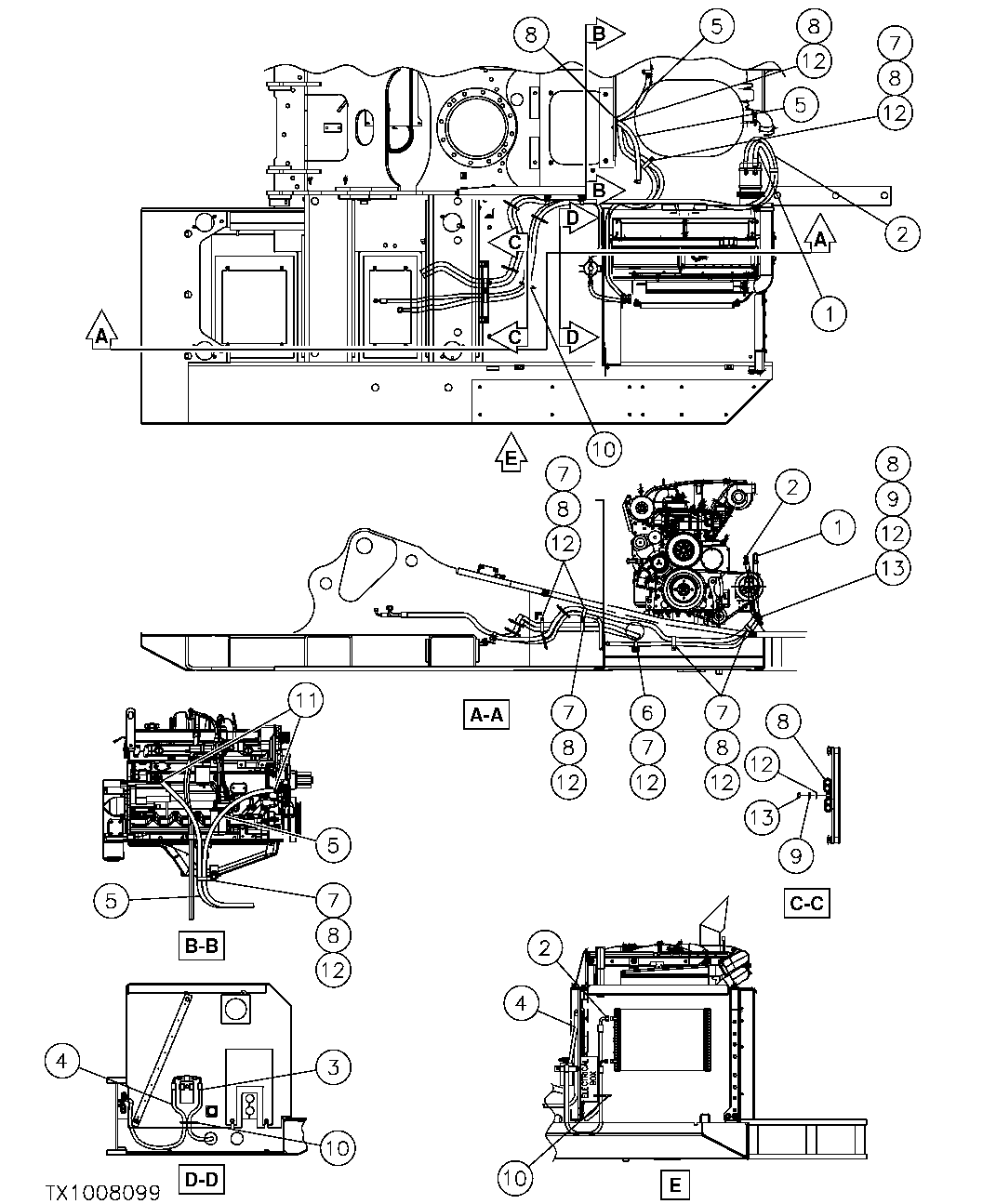

Запчасти John Deere 7C ZTS 352 - AIR CONDITIONER HOSES AND CLAMPS (BASE MACHINE) 1830 HEATING & AIR CONDITIONING

1

DH400526

Refrigerant Hose

(SUB FOR FFSB111277)

1шт.

2

DH400531

Refrigerant Hose

(SUB FOR FFSB110314)(C OMPRESSOR TO CONDENSER)

1шт.

3

DH400532

Refrigerant Hose

(SUB FOR FFSB110315)(CONDENSER TO DRYER)

1шт.

4

DH400533

Refrigerant Hose

(SUB FOR FFSB111278)

1шт.

5

DH400534

Hose

(SUB FOR FFSB110318)

2шт.

6

F053301

Holder

( FFSB102835 NLA)

1шт.

7

19M7938

Cap Screw

M10 X 20 (SUB FOR FFSB107124)

7шт.

8

FFSB107516

Clamp

10шт.

9

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

2шт.

10

R44302

Tie Band

(SUB FOR FFSB108110)

6шт.

11

FFSB102829

Clamp

2шт.

12

24M7096

Washer

10.500 X 18 X 1.600 mm (SUB FOR FFSB107709)

9шт.

13

14M7274

Nut

M10 (SUB FOR FFSB107411)

2шт.
