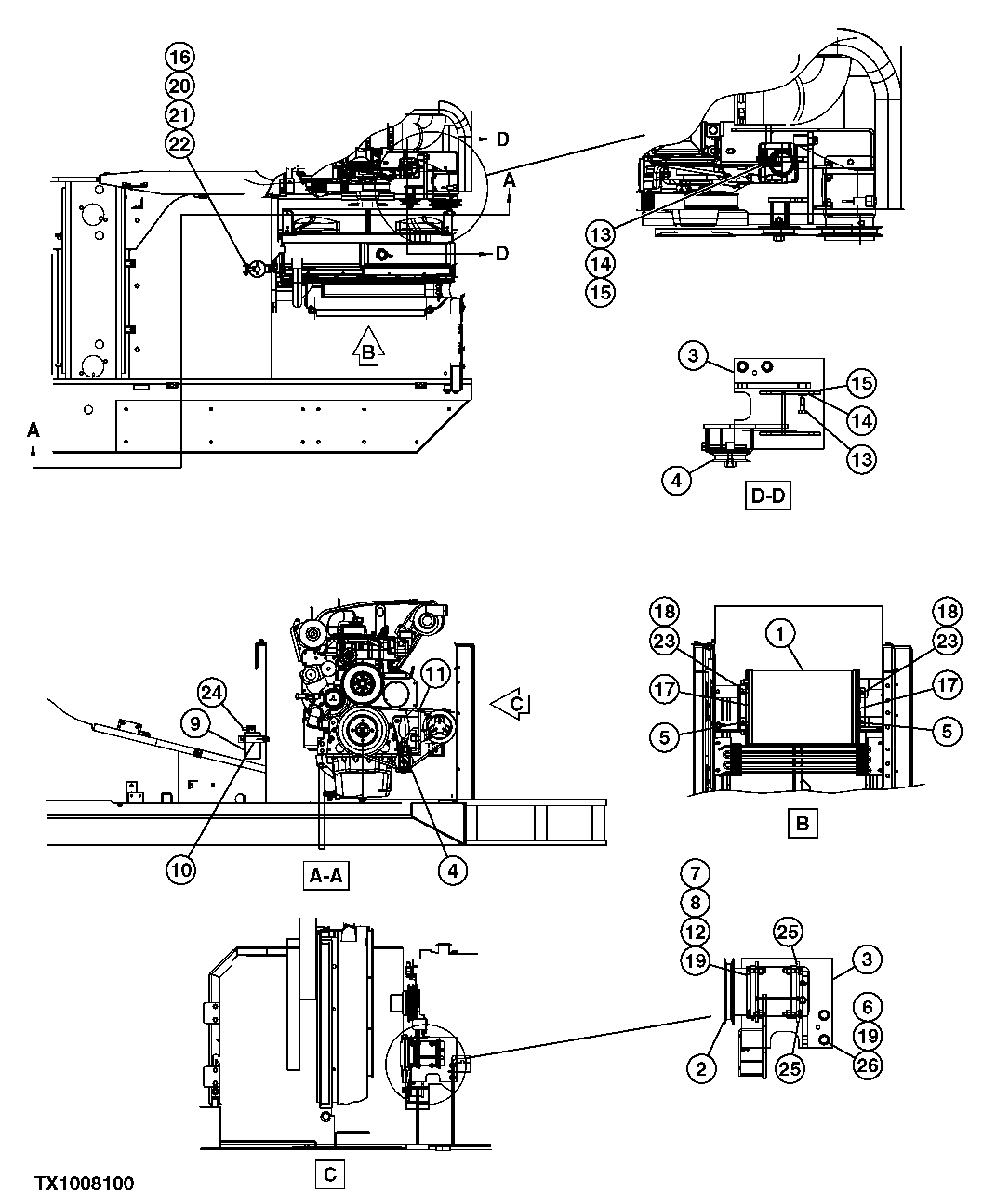

Запчасти John Deere 7C ZTS 351 - AIR CONDITIONER CONDENSER, COMPRESSOR, AND DRYER 1830 HEATING & AIR CONDITIONING

1

DH400538

Vapor Condenser

SUB FOR FFSB110319

1шт.

2

FF200866

Compressor

SUB FOR DH400539 AND FFSB110320

1шт.

3

DH700088

Bracket

SUB FOR FFSB110998

1шт.

4

4346770

Pulley

SUB FOR FFSB110991 OR AT213915

1шт.

4451204

Bolt

Belt Tightening Screw

1шт.

5

DH400535

Bracket

SUB FOR FFSB110989

2шт.

6

19M7875

Cap Screw

M10 X 70 SUB FOR FFSB111003 OR AT215468

2шт.

7

19M7382

Cap Screw

M10 X 40 SUB FOR FFSB109189

4шт.

8

14M7274

Nut

M10 SUB FOR FFSB107411

4шт.

9

DH400518

Receiver-Dryer

SUB FOR FFSB110327

1шт.

10

DH300123

Bracket

SUB FOR FFSB110328

1шт.

11

DH400537

V-Belt

SUB FOR FFSB110997

1шт.

12

24M7096

Washer

10.500 X 18 X 1.600 mm SUB FOR FFSB107709

4шт.

13

19M7489

Cap Screw

M16 X 45 SUB FOR FFSB109224

2шт.

14

12M7069

Lock Washer

16 mm SUB FOR FFSB105798

2шт.

15

24M7053

Washer

17 X 30 X 3 mm SUB FOR FFSB107399

2шт.

16

19M8713

Screw

M6 X 45 SUB FOR FFSB110136

1шт.

17

21M7271

Screw

M5 X 16 SUB FOR FFSB108268

6шт.

18

19M8008

Cap Screw

M8 X 35 SUB FOR FFSB110435

4шт.

19

12M7066

Lock Washer

10 mm SUB FOR FFSB107961 OR FFSB107409

6шт.

20

12M7006

Lock Washer

6 mm SUB FOR 107439

1шт.

21

24M7054

Washer

6.400 X 12 X 1.600 mm SUB FOR FFSB107438

2шт.

22

14M7303

Flange Nut

M6 SUB FOR FFSB108288

1шт.

23

12M7056

Lock Washer

8 mm SUB FOR FFSB108029 AND 12M7065

4шт.

24

Pressure Switch

AT322233 NLA

1шт.

DH400736

Pressure Switch

SUB FOR FFSB110572

1шт.

25

DH400536

Shim Kit

SUB FOR FFSB111325

2шт.

26

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR FFSB107142

2шт.
