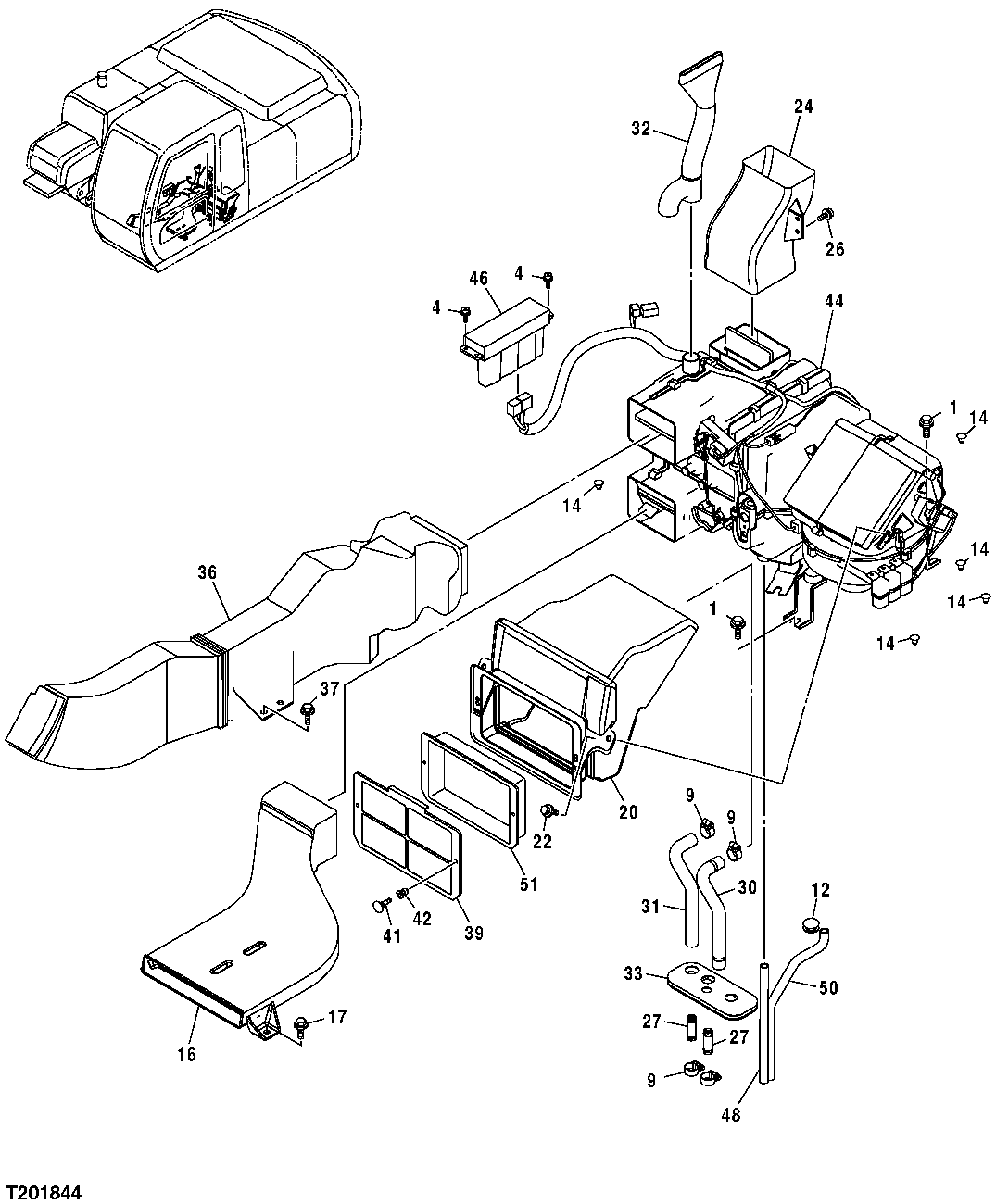

Запчасти John Deere 7C ZTS 348 - HEATER & AIR CONDITIONER UNIT AND AIR DUCT 1830 HEATING & AIR CONDITIONING

1

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

4

21M7265

Screw

M5 X 12

4шт.

9

WZ2141223

Hose Clamp

(SUB FOR AA34965)

4шт.

12

4205084

Grommet

(SUB FOR TH108616)

2шт.

14

4280359

Plug

(SUB FOR AT154351)

6шт.

16

4426155

Air Duct

(SUB FOR TH4426155)

1шт.

17

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

20

4426162

Air Duct

(SUB FOR TH4426162)

1шт.

22

19M7881

Screw

M8 X 20

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

24

4426157

Air Duct

(SUB FOR TH4426157)

1шт.

26

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

27

4347396

Fitting

(SUB FOR TH4347396)

2шт.

30

Radiator Hose

( 4430873 NLA) (SUB 4430872)

1шт.

31

4430872

Hose

1шт.

32

4436441

Air Duct

(SUB FOR TH4436441)

1шт.

33

2044922

Bushing

(SUB FOR TH2044922)

1шт.

36

4426158

Air Duct

(SUB FOR TH4426158)

1шт.

37

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

39

4S00684

Grille

(SUB FOR TH4441139)

1шт.

41

4441059

Clip

(SUB FOR TH4441059)

2шт.

42

4441061

Clip

(SUB FOR TH4441061)

2шт.

44

4609049

Air Conditioner

(SUB FOR TH4426047, 4426047)

1шт.

4609676

Heater

(SUB FOR TH4450707, 4450707)

1шт.

45

4610412

Wiring Harness

Not Illustrated

1шт.

46

4713662

Air Heater Controller

(SUB FOR 4692239) Use With Air Conditioner and Heater

1шт.

4692240

Air Heater Controller

SUB FOR TH4450708 Use With Heater

1шт.

48

4430870

Hose

(SUB FOR TH4430870)(FOR USE WITH AIR CONDITIONER)

1шт.

50

4430871

Hose

(SUB FOR TH4430871)(FOR USE WITH AIR CONDITIONER)

1шт.

51

4S00683R

Filter

Return Air Filter (SUB FOR 4484453 AND 4S00683)

1шт.
