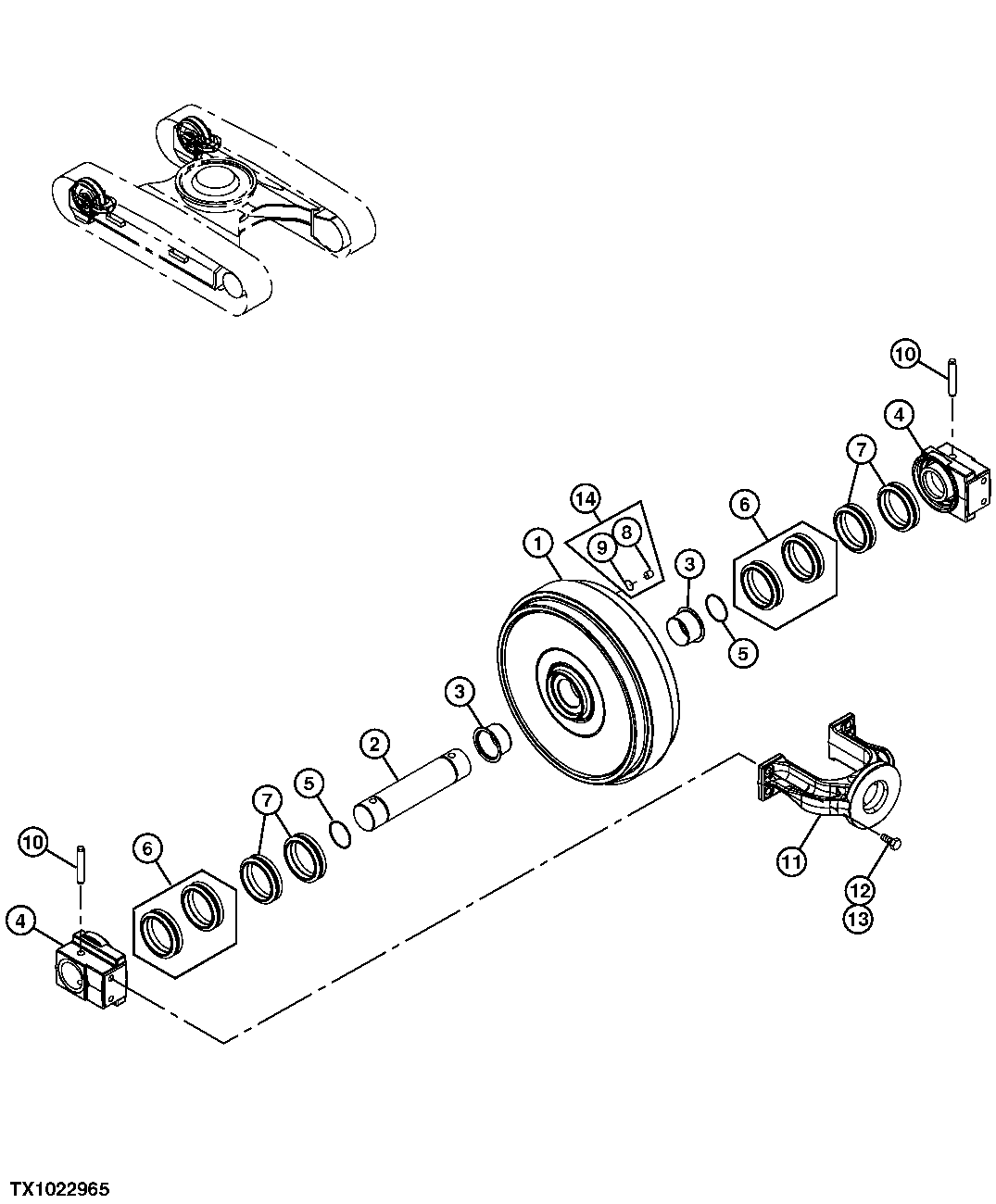

Запчасти John Deere 7C ZTS 13 - TRACK FRONT IDLER (HIGH DRAWBAR) 0134 RECOIL SYSTEM

1

FFSB112114

Track Idler

1шт.

2

FFSB112115

Pin Fastener

1шт.

3

FFSB112116

Bushing

2шт.

4

FFSB112117

Bracket

2шт.

5

FFSB112118

O-Ring

2шт.

6

F436120

Seal Kit

(SUB FOR FFSB112119)

2шт.

7

FFSB112120

Seal

4шт.

8

Fitting Plug

(SUB FOR FFSB112121 OR T139447)( T139447 NLA)

1шт.

9

R27976

O-Ring

(SUB FOR FFSB112122 OR T139448)

2шт.

10

FFSB112123

Pin Fastener

2шт.

11

T210839

Yoke

(SUB FOR FFSB112124)

1шт.

12

19M7488

Cap Screw

M16 X 40 (SUB FOR FFSB109223)

4шт.

13

12M7069

Lock Washer

16 mm (SUB FOR FFSB109992)

4шт.

14

AT341124

Fitting

1шт.
