323 - WINDOW WASHER RESERVOIR, PUMP, AND MOUNTING

Запчасти John Deere 7C ZTS 323 - WINDOW WASHER RESERVOIR, PUMP, AND MOUNTING 1810 OPERATOR ENCLOSURE

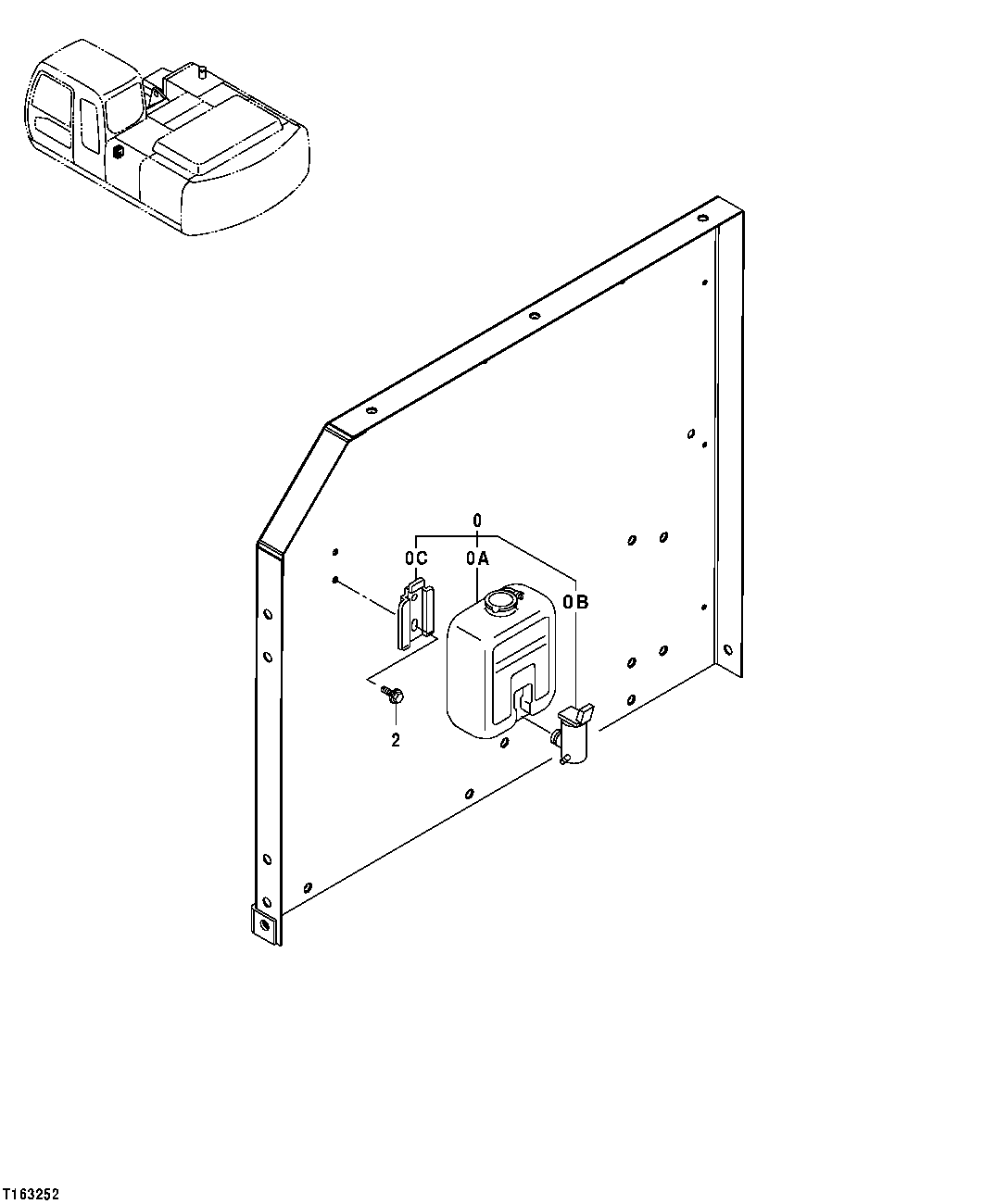

Схема запчастей John Deere 7C ZTS - 323 - WINDOW WASHER RESERVOIR, PUMP, AND MOUNTING 1810 OPERATOR ENCLOSURE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4333185

Reservoir

(SUB FOR FFSB107904)

1шт.

0A

Reservoir

(SUB FOR FFSB110860)( 4369472 NLA)

1шт.

0B

4326095

Pump

(SUB FOR FFSB110963)

1шт.

0C

4338974

Bracket

(SUB FOR FFSB110861)

1шт.

2

19M8425

Cap Screw

M6 X 16 (SUB FOR FFSB107905)

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR FFSB107905)

2шт.

12M7006

Lock Washer

6 mm (SUB FOR FFSB107905)

2шт.
