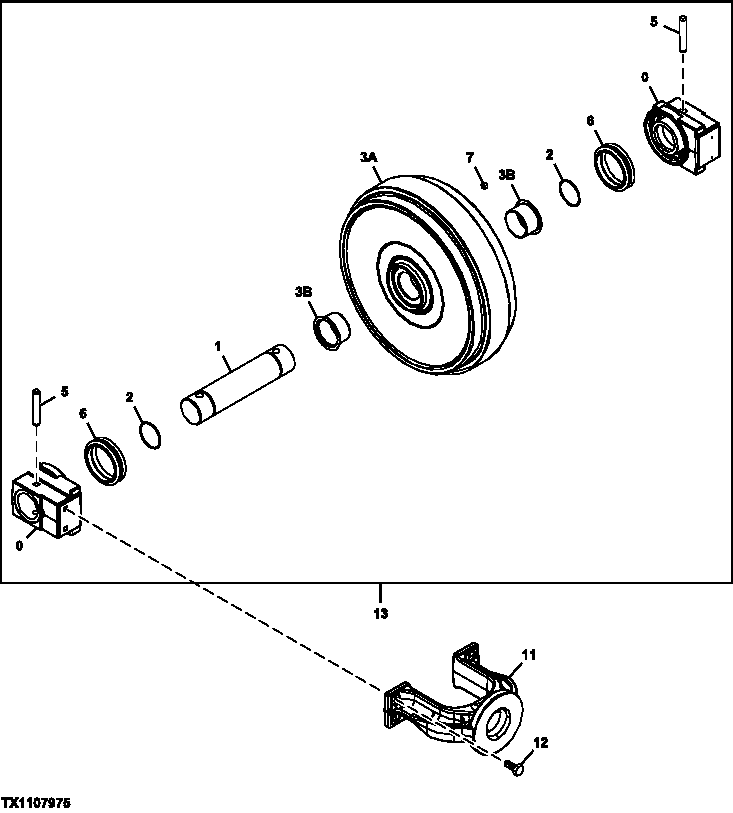

Запчасти John Deere 7C ZTS 12 - TRACK FRONT IDLER (STANDARD DRAWBAR) 0134 RECOIL SYSTEM

0

DH100030

Bearing

SUB FOR FFSB113367

2шт.

1

AT180022

Shaft

SUB FOR FFSB113365

1шт.

2

AT180019

O-Ring

SUB FOR FFSB113368

2шт.

3A

DH100001

Idler Sprocket

SUB FOR FFSB113364

1шт.

3B

AT180021

Bushing

SUB FOR FFSB113366

2шт.

5

AT180015

Pin Fastener

SUB FOR FFSB113372

2шт.

6

DH100030

Bearing

SUB FOR FFSB113367

2шт.

AT180017

Seal

SUB FOR FFSB113370

2шт.

7

AT180007

Fitting Plug

SUB FOR FFSB113371

1шт.

11

DH100029

Yoke

SUB FOR FFSB113373

2шт.

12

19M8035

Cap Screw

M16 X 35 SUB FOR FFSB113374

4шт.

13

9242964R

Track Idler

SUB FOR 9242964

1шт.
