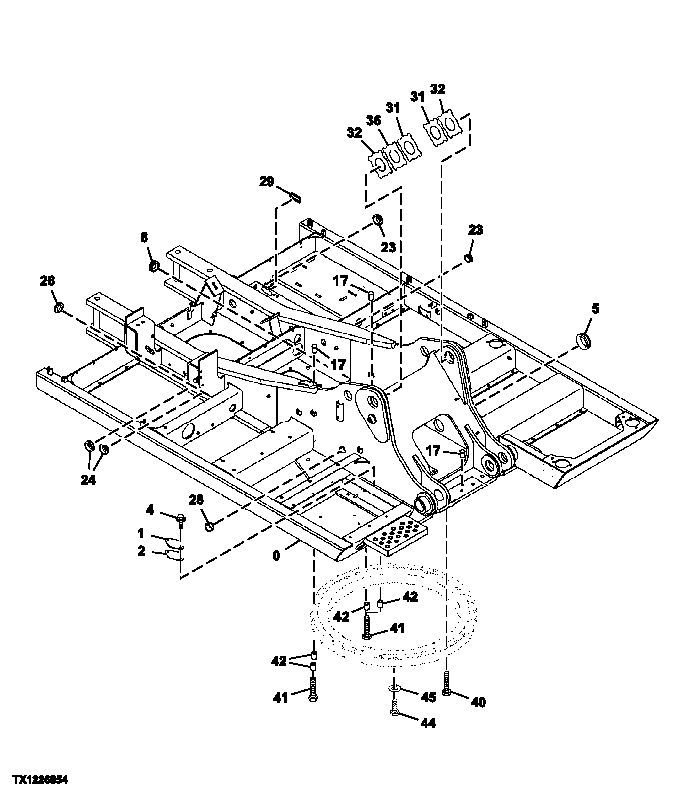

Запчасти John Deere 7C ZTS 316 - MAIN FRAME 1740 FRAME INSTALLATION

0

Main Frame

( DH5008523 NLA) CA

1шт.

1

4255799

Cover

(SUB FOR AT154929)

1шт.

2

4161735

Gasket

(SUB FOR AT130379)

1шт.

4

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

5

4191977

Grommet

(SUB FOR TH109399)

1шт.

8

4208279

Grommet

(SUB FOR AT131854)

1шт.

17

4355382

Pin Fastener

22 X 32 mm (0.866" X 1. 260") (SUB FOR AT217769)

3шт.

23

3089797

Pin Fastener

(SUB FOR TH3089797)

2шт.

24

4200176

Grommet

(SUB FOR TH109397)

2шт.

26

4255567

Bushing

(SUB FOR AT155271, 4255530)

5шт.

28

4509404

Grommet

(SUB FOR TH100553)

1шт.

29

4201986

Grommet

(SUB FOR AT217099, 4345810)

3шт.

31

4445638

Thrust Washer

2шт.

32

4445638

Thrust Washer

(SUB FOR TH4445638)

2шт.

36

4444285

Thrust Washer

(SUB FOR TH4444285)

1шт.

40

J922203R

Cap Screw

(SUB FOR J922203)

30шт.

41

J922212

Bolt

4шт.

42

4381637

Spacer

23.500 X 44 X 55 mm (0.925" X 1. 732" X 2.165") (SUB FOR AT217991)

4шт.

44

AT217784

Bolt

36шт.

45

J257222

Lock Washer

36шт.
